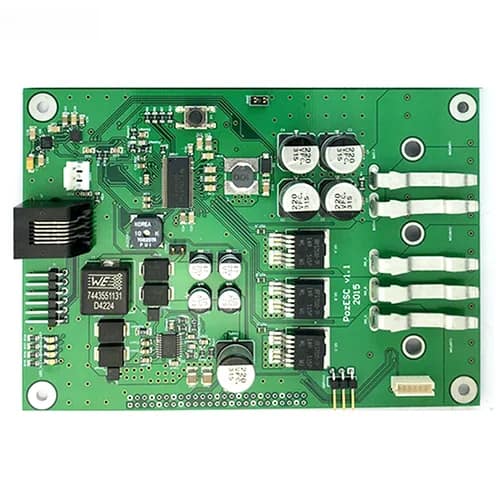

Medical Device Through Hole PCB Assembly

اسم: Medical Device Through Hole PCB Assembly

الركيزة: FR-4/CEM-1/CEM-3/Polyimild/PTFE/Rogers

سمك النحاس: 1/3أوقية- 6أوقية

سمك اللوحة: 0.21-6.0مم

دقيقة. حجم الثقب: 0.20مم

دقيقة. عرض الخط: 4 مليون

دقيقة. تباعد الأسطر: 0.075 مم

المعالجة السطحية: علبة رش/مثقاب ذهبي/OSP/علبة رش خالية من الرصاص

حجم اللوحة: الحد الأدنى 10*15 ملم, الحد الأقصى 508*889 مللي متر

نوع المنتج: تصنيع المعدات الأصلية&أوديإم

معيار ثنائي الفينيل متعدد الكلور: معيار IPC-A-610 D/IPC-III

  • تفاصيل المنتج

PCB’s Irresistible Influence in the Medical Field

The Printed Circuit Board (ثنائي الفينيل متعدد الكلور) business has expanded its irresistible beneficial influence due to the continuous growth of the tech world and its use in various fields. في السنوات الأخيرة, its impact on the world of electronics has exceeded all forecasts, including IoT devices, smartphones, أجهزة الكمبيوتر, الذكاء الاصطناعي, and more.

الآن, PCBs are transforming medical devices and bridging the gap between patients and physicians in the medical technology business. ثنائي الفينيل متعدد الكلور, enabling the development of these convenient medical devices. Advances in healthcare technology are helping to solve several key challenges in the medical field, such as establishing accurate diagnoses and tracking patient health.

The medical electronics industry is growing rapidly and does not appear to be slowing down, which shows the influence of PCBs in the medical field. The global medical electronics market is expected to reach $4.4 billion by 2022. With the advancement of technology, PCBs are becoming more and more important in the medical field. Due to their digital nature, most medical devices and gadgets today require PCBs to function properly and efficiently.

PCBs are required to operate medical devices such as defibrillators, electrical muscle stimulation devices, MRI, medical imaging systems, CT scans, and ultrasound equipment.

Medical PCB Technology and Its Types

Extra care must be taken to ensure reliability when producing medical PCBs. This is because human life depends on the equipment that houses them. PCBs also have to meet very strict requirements when it comes to cleanliness. This is especially true for those used in implants. أولاً, they must be hygienic. They also have to be more compact than usual. لذلك, مؤشر التنمية البشرية (High Density Interconnect) PCBs are used in most medical devices.

Techniques Used in Medical PCB Assembly

مؤشر التنمية البشرية / via-in-pad technology

The design of inserting vias inside copper pads is called via-in-pad and is often used to save space on the PCB. With in-pad technology, the PCB can provide up to 50% more space for component placement. The widespread use of vias in pads by PCB engineers is in pursuit of more acceptable pitch devices and smaller electronics.

Other vias, such as blind and buried vias, help reduce space and increase component density, but for PCBs that require high speed and high dissipation, only via-in-pads are still the best choice.

Surface mount technology

تقنية التركيب السطحي, or SMT, is now used in nearly all commercially manufactured devices because it offers huge advantages in the PCB manufacturing process and, due to the smaller size of SMT components, allows more electronic devices to be packaged into smaller in a small space. In addition to being compact, تقنية تركيب السطح (سمت) enables automated soldering and PCB assembly, improving reliability and saving money.

PCB fine lines and spaces

Next-generation portable electronic devices will rely heavily on high-density interconnect (مؤشر التنمية البشرية) PCB technology, including tiny lines and spaces (2 mil and below). This technology has several advantages over conventional techniques, including reduced board size, enhanced wiring, and cheaper manufacturing costs.

Application of Medical PCB in Healthcare Industry

Printed circuit boards and electronics play a vital role in the medical industry. They are not only used in appliances, but also in monitoring, diagnostic and therapeutic equipment. بالإضافة إلى, with the advancement of technology, PCBs in the healthcare industry are rapidly expanding, opening up new possibilities.

Applications of PCBs in Healthcare

Scanning Equipment

CT scanners, X-ray screens, and ultrasound scans all rely on electronic components to work.

Monitors

Medical monitoring devices such as heart rate monitors, blood glucose monitors, and blood pressure monitors contain electronic components.

Medical Instruments

Medical research requires a variety of instruments to collect data and test results. PCBs are commonly found in electron microscopes, control systems, compressors, and other equipment.

Due to health concerns, PCBs must meet higher standards in the medical industry. بالإضافة إلى ذلك, these devices must be reliable and of good quality to meet medical requirements. Due to device size constraints, medical device PCBs are mainly developed and tend to be smaller.

Professional PCBA Service Factory

We support Medical Device Through Hole PCB Assembly business. UGPCB is a professional one-stop PCBA service factory. Welcome to place an order.
