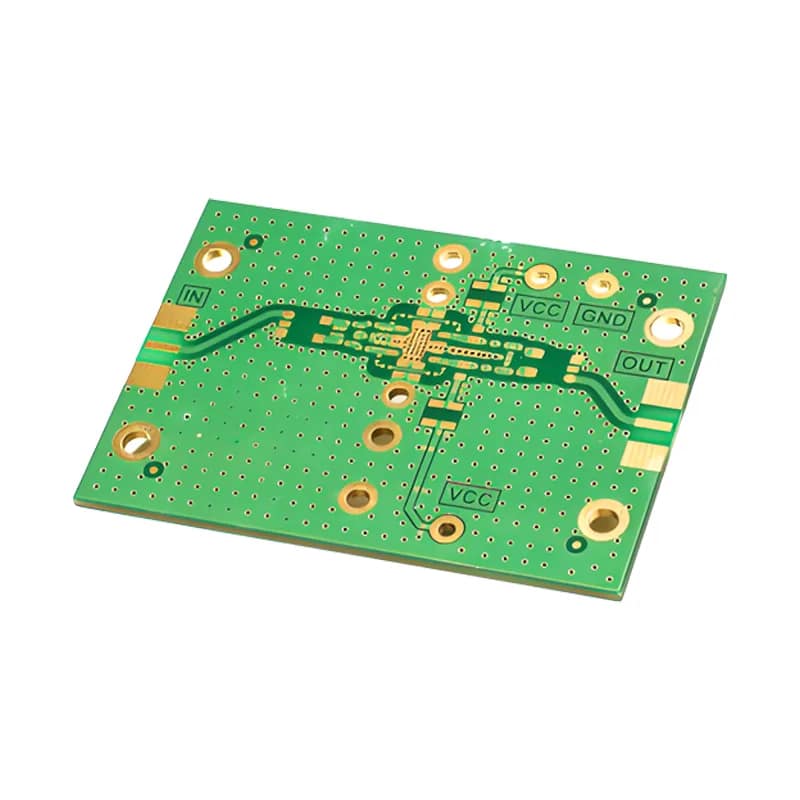

مكبر كهربائي عالي التردد ثنائي الفينيل متعدد الكلور

Taconic is a manufacturer of Teflon PCB copper clad sheets with a large global production. It has the patent to coat Teflon evenly on glass woven fabrics and is one of the technological leaders in Teflon microwave clad sheet industry. The dielectric constant of Taconic PCB microwave clad sheets is 2.17-10.0, which occupies a large share of the global antenna PCB market.

Taconic PCB high performance insulation materials provide Teflon woven glass fabric sheets for the microwave, radio frequency (RF) and high speed digital signal processing markets. Taconic PCB materials can be used in LNAs, LNBs, PCS/PCN antenna systems, Global Positioning System (نظام تحديد المواقع) and UMTS antenna systems, as well as power amplifiers, passive devices, collision avoidance radar systems, airborne guidance remote control technology and phased array radar systems.

Models commonly used by PCB Taconic manufacturer

TLY-5A, TLY-5, TLY-3, HT1.5, TLX-O, TLX-9, TLX-8, TLX-7, TLX-6, TLC-27, TLE-95TLC-30, TPG-30, TLG-30, RF-30, TSM-30, TLC-32, TPG32, TLG-32, TLG-34, TPG35TLG-35, RF-35, RF-35A, RF-35P, RF-41, RF-43, RF-45, RF-60A, CER-10

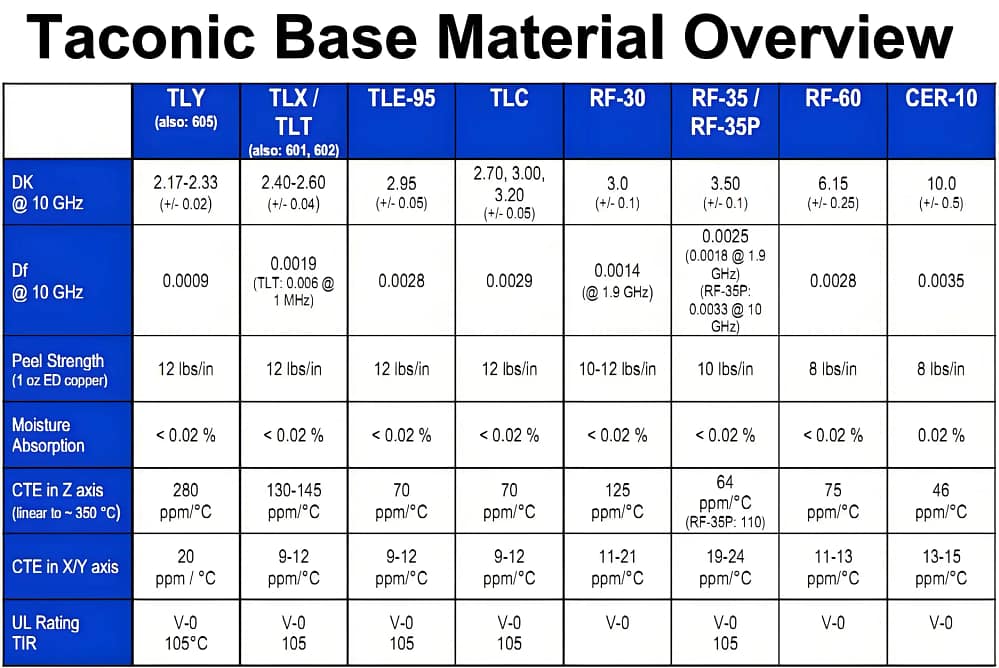

Taconic Material Parameter Table

Features of the power amplifier PCB

1. Long antenna size (102 inch or 2591mm)

2. Low loss (0.0009 @ 10GHz)

3. Stable dielectric constant (+/- 0.02)

4. Copper surface has a good flatness of 0.0015mm

5. Strong adhesion (> 10 lb/inch)

6. Use smooth copper sheet (rolled copper sheet)

7. Reverse Copper Skin to Improve and Improve PIM

8. PCB has very low water absorption

9. Get NASA certification, most products can be used at the aerospace level.

10.Low cost PCB, fast delivery PCB

High-frequency power amplifier PCB fabrication capabilities of UGPCB

Number of layers: 1-48 طبقات

Minimum Line Width/Spacing: 3ميل (0.075مم)

Minimum aperture: 4ميل (0.1مم)

سمك اللوحة: 0.1mm~6.0mm

Maximum board size: 20* 31.5(500mm*800mm)

مادة: Taconic PCB Prototype full range

double-sided Taconic PCB sample late is due for 3 days and can be delivered as fast as 24 hours.

4layer Taconic PCB sample is due for 6 days and can be delivered up to 48 hours.

6 layer Taconic PCB sample is delivered 7 days in delivery time, ما يصل الى 72 hours.

Taconic PCB sample of layers 8 ل 10 are due for 9 days and can be delivered as fast as 96 hours.

Taconic PCB board main applications are: polytetrafluoroethylene high frequency board PCB, 3G smart antenna PCB, power amplifier PCB, low noise amplifier PCB, divider PCB, duplexer PCB, filter PCB, coupler PCB, radio frequency communication products, 3G antenna, bridge, module, coupler, sensor, electronic dog, high frequency head, power divider, radio frequency board, إلخ.
