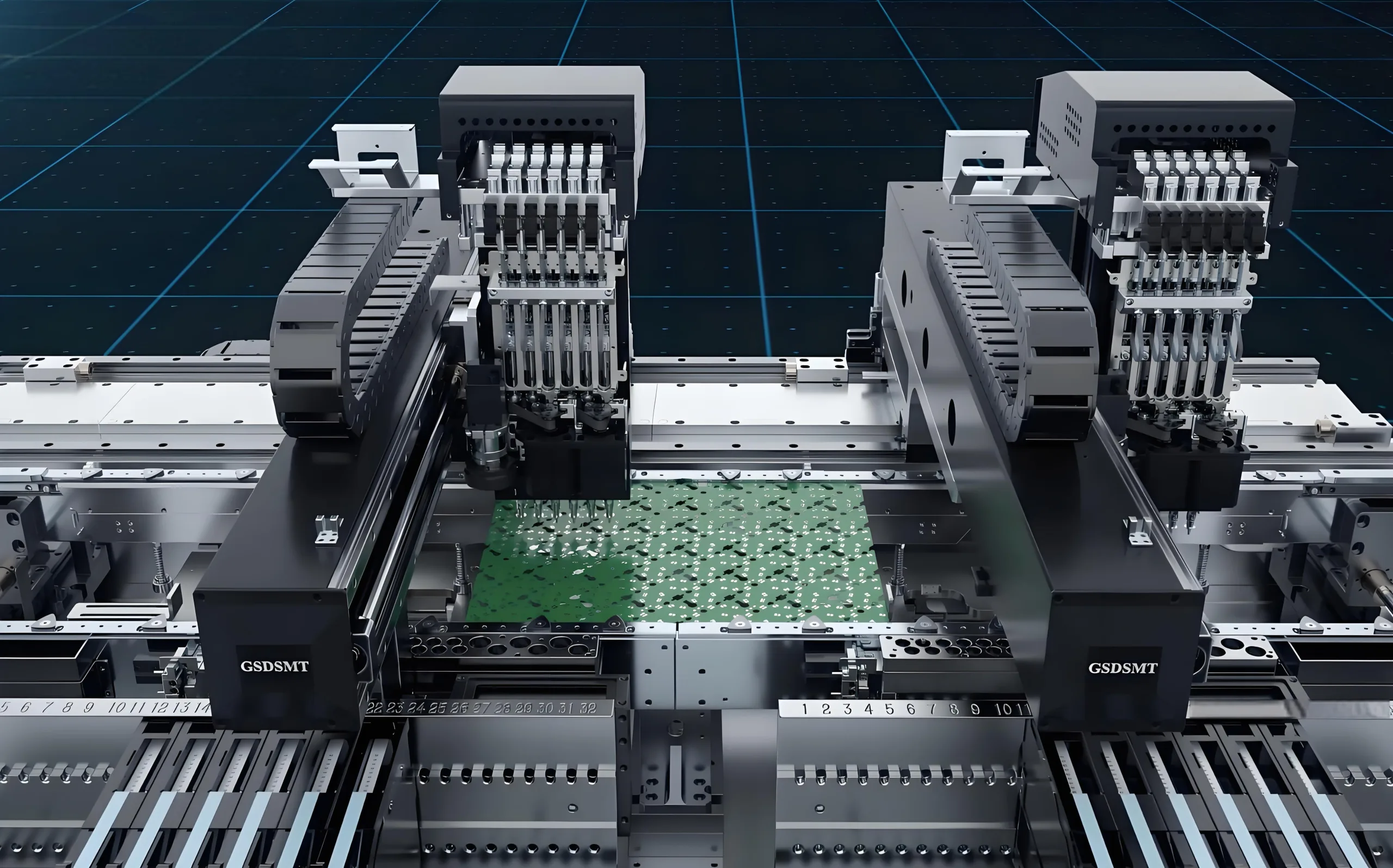

In der modernen Elektronikherstellung, Oberflächenmontagetechnologie (SMT) ist einer der kritischen Prozesse in PCB (Leiterplatte) Produktion. Als Kernausrüstung für den Lötpastedruck, the printing quality of SMT printers directly affects subsequent processes such as component placement and reflow soldering, and even determines the reliability of the final product. Jedoch, solder paste printing defects are a common issue in SMT production. How to effectively prevent this problem has become a focus for many PCBA manufacturers. This article will explore in depth how to ensure the stable operation and high-quality output of SMT printers through meticulous management and technical optimization.
Stencil Management: Der “Cornerstone” of Printing Precision
The stencil (or steel mesh) is the “mold” for solder paste printing, and its quality directly determines the precision and consistency of the printing. daher, stencil management is the first step in preventing printing defects.
Stencil Design and Selection
The aperture accuracy and size of the stencil must perfectly match the PCB pads. According to the IPC-7525 standard, the stencil aperture size is typically 80%-90% of the pad size to ensure uniform solder paste coverage while avoiding overflow. Zusätzlich, the stencil thickness should be selected based on the component type and pad size. For fine-pitch components (z.B., QFN, BGA), the stencil thickness is usually controlled between 0.1mm and 0.12mm to ensure printing precision.

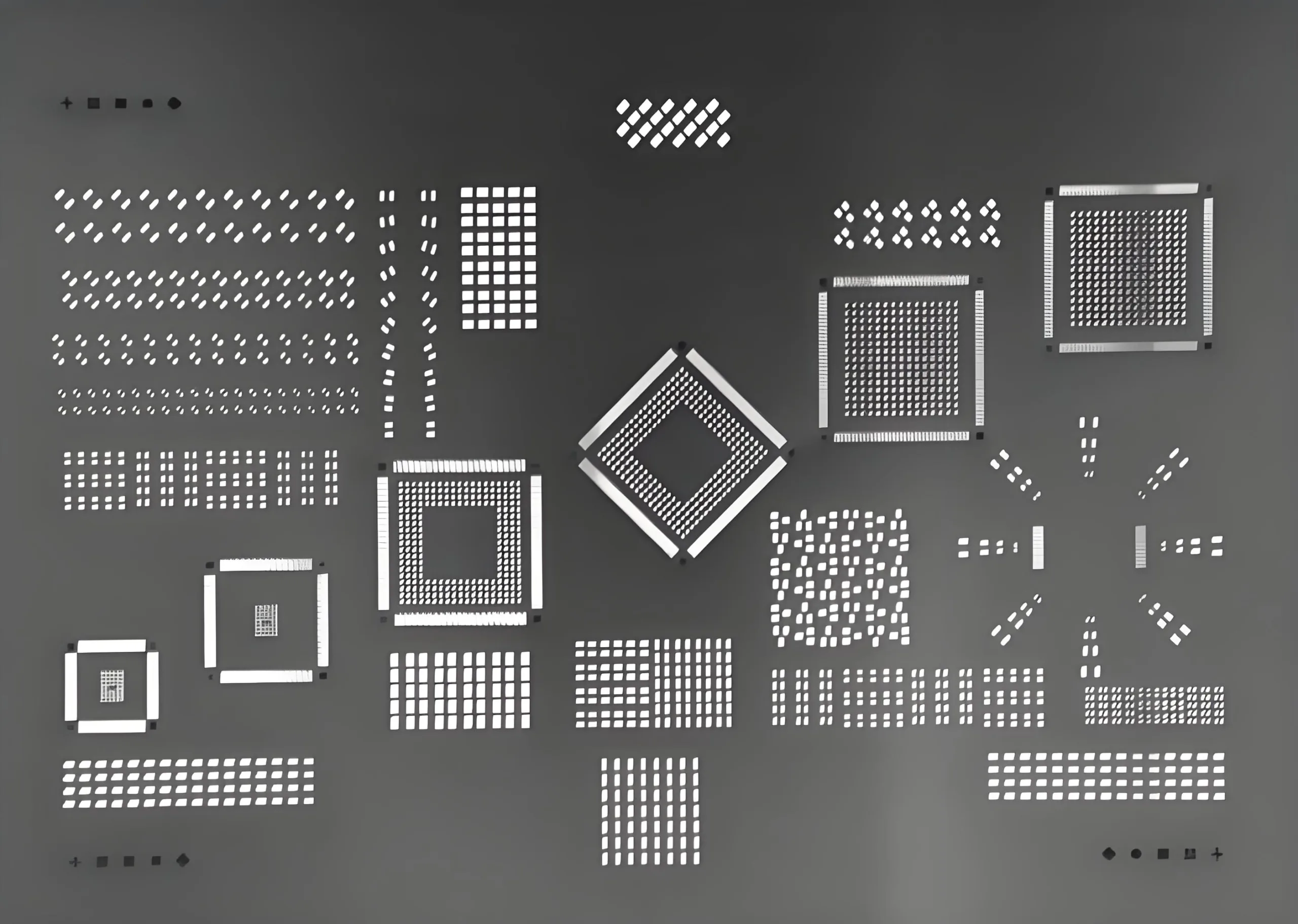

Caption: A well-designed stencil ensures precise solder paste transfer.
Stencil Cleaning and Maintenance
The cleanliness of the stencil surface directly affects the transfer efficiency of the solder paste. During production, solder paste residues and impurities can accumulate on the stencil surface, leading to uneven printing. daher, it is recommended to clean the stencil every 4 hours using specialized cleaning agents and ultrasonic cleaning equipment to ensure a residue-free surface. Zusätzlich, regularly check the stencil’s flatness and correct or replace it if deformation or wear is detected.

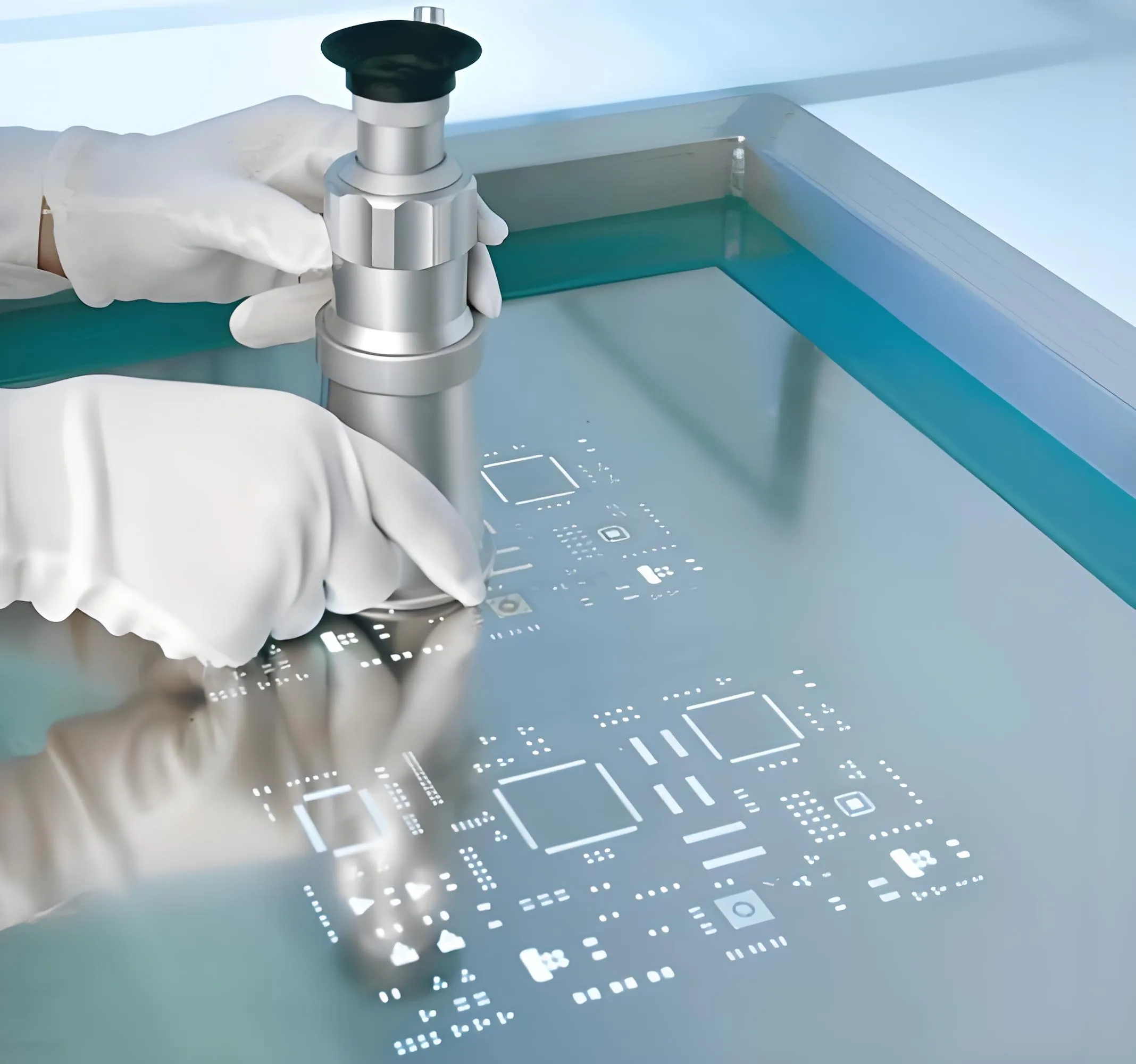

Caption: Regular cleaning maintains stencil performance.
Printing Parameter Optimization: Der “Art” of Precise Control
The setting of printing parameters is one of the key factors affecting solder paste printing quality. Proper parameter configuration can significantly improve printing uniformity and consistency.
Squeegee Pressure and Speed
Squeegee pressure is a critical parameter affecting solder paste transfer. Excessive pressure can cause solder paste to leak outside the pads, while insufficient pressure may result in incomplete transfer. According to the empirical formula:
P=k×V×η
where P is squeegee pressure, V is printing speed, η is solder paste viscosity, Und k is a correction factor. Typischerweise, squeegee pressure is controlled between 0.2kg/cm² and 0.5kg/cm², and the printing speed is recommended to be between 20mm/s and 50mm/s.
Printing Speed and Separation Speed
Excessive printing speed may prevent the solder paste from fully filling the stencil apertures, while too slow a speed can cause tailing. The separation speed is equally important; too fast can lead to solder paste peaks, and too slow may cause paste sticking. Allgemein, the separation speed is controlled between 0.5mm/s and 2mm/s.
Caption: Optimizing parameters ensures consistent solder paste deposition.
PCB and Stencil Alignment Accuracy: Der “Lifeline” of Printing Quality
The alignment accuracy between the PCB and stencil is the core of ensuring precise solder paste printing. Misalignment can cause solder paste offset, leading to soldering defects.
Vision Alignment System
Modern SMT printers commonly use vision alignment systems, which employ high-resolution cameras and image processing algorithms to real-time correct the positional deviation between the PCB and stencil. The precision of vision systems can typically reach ±0.01mm, effectively improving printing alignment accuracy.
Foreign Object Removal
Foreign objects (z.B., dust, debris) on the PCB and stencil surfaces can interfere with alignment accuracy. daher, before printing, use an air gun or electrostatic brush to clean the PCB and stencil surfaces, ensuring no foreign objects are present.
Caption: Vision systems enhance alignment precision.
Solder Paste Management: Der “Soul” of Printing Quality
Solder paste is the core material in SMT printing, and its performance directly affects printing results.
Solder Paste Selection and Storage
Choosing solder paste with stable quality and excellent performance is a prerequisite for ensuring printing quality. The viscosity, particle size, and metal content of the solder paste must meet process requirements. For fine-pitch components, the solder paste particle diameter should be controlled between 20μm and 45μm. Zusätzlich, solder paste should be stored in a refrigerated environment at 2℃-10℃ and brought to room temperature (25℃±2℃) before use, followed by thorough stirring to restore its rheological properties.
Solder Paste Usage Control
Excessive solder paste usage can cause overflow, while insufficient usage may lead to incomplete soldering. Typischerweise, the solder paste printing thickness is 80%-90% of the stencil thickness. Use a laser thickness gauge to monitor the solder paste thickness in real-time, ensuring it stays within the process requirements.

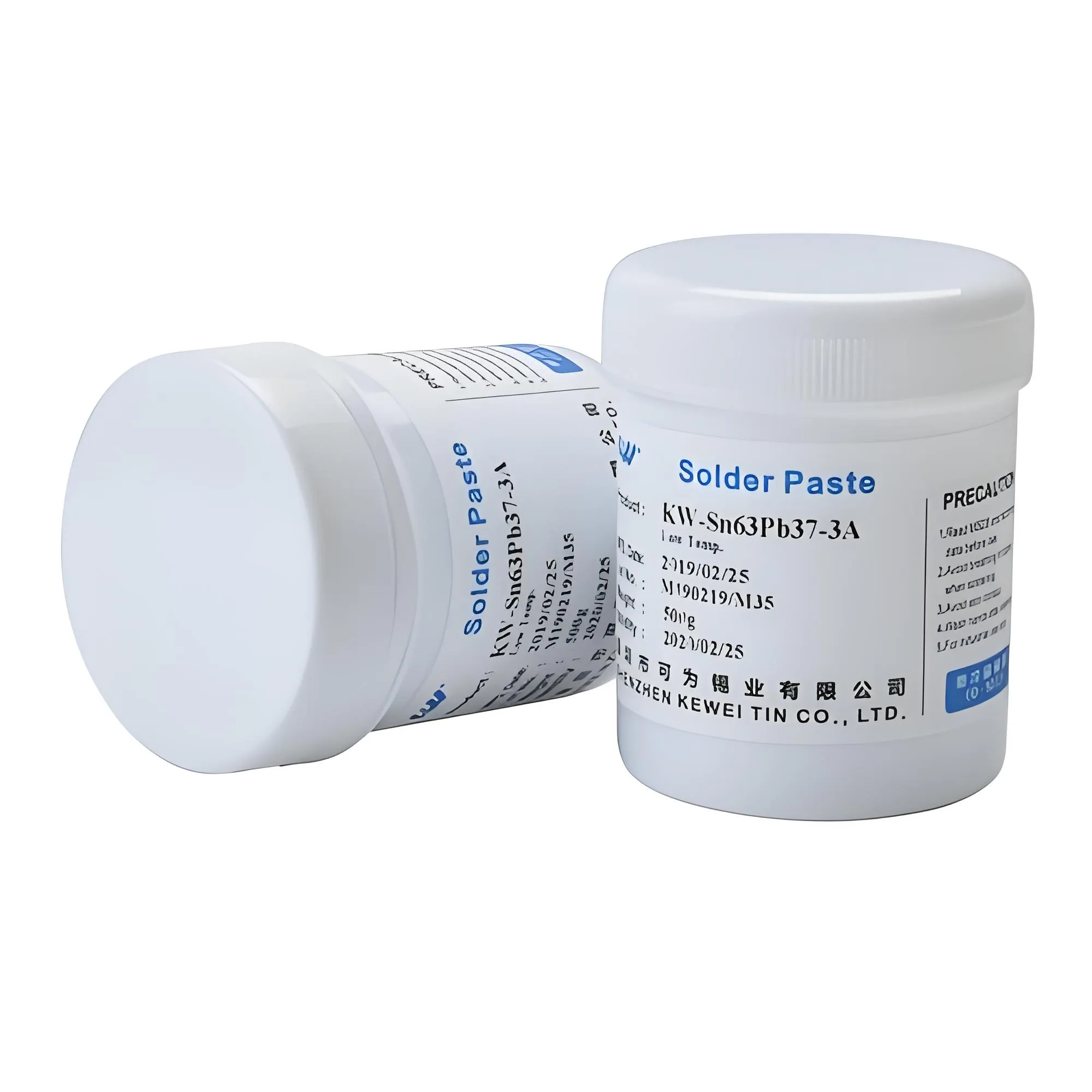

Caption: Proper solder paste management ensures optimal printing results.
Printing Inspection and Quality Control: Der “Firewall” Against Defects
Printing inspection is the final line of defense to ensure printing quality.

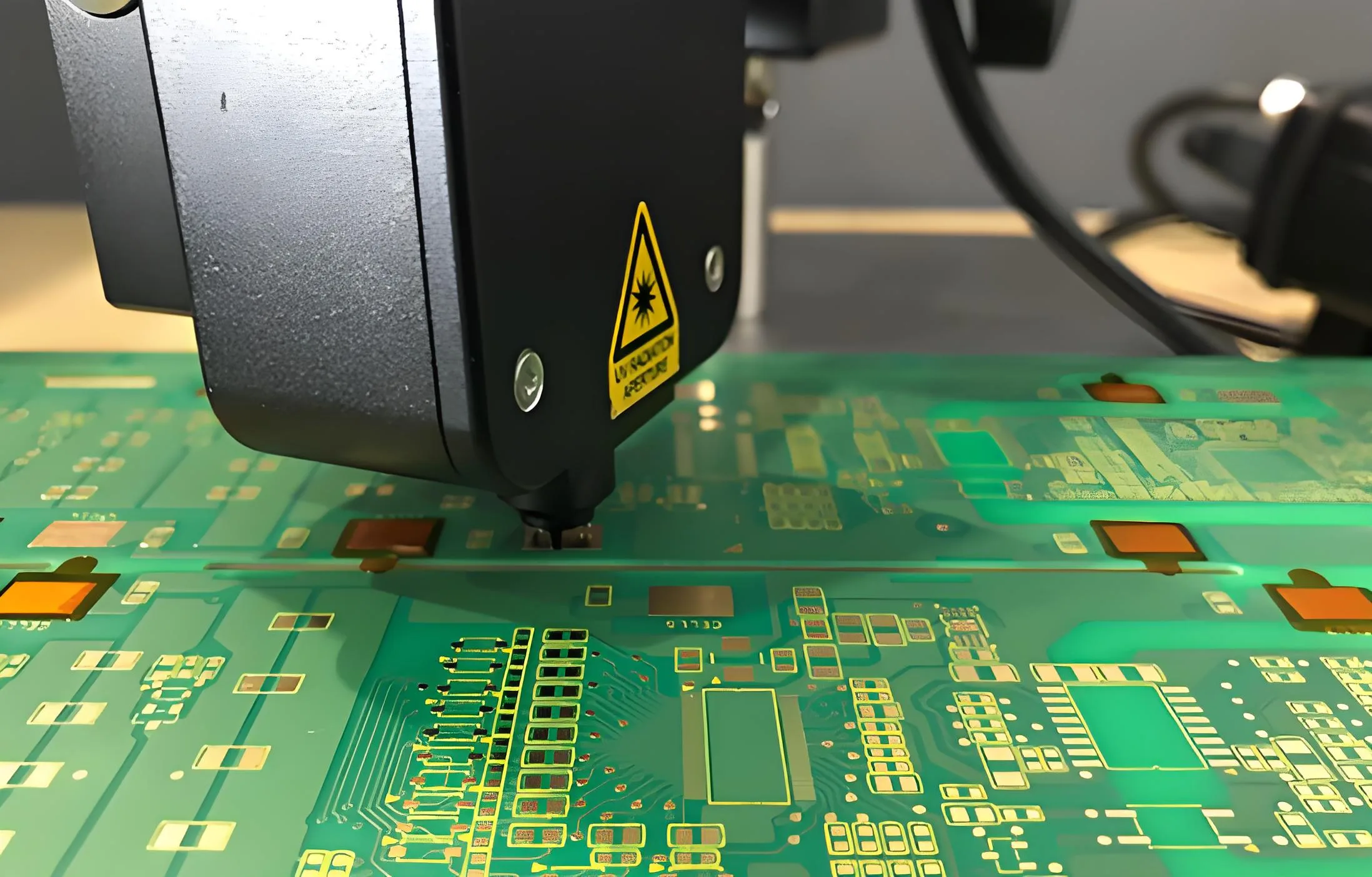

Real-Time Monitoring
Use tools such as magnifiers, microbalances, and laser thickness gauges to monitor printing quality in real-time. Focus on indicators such as printing precision, resolution, and thickness. Zum Beispiel, the solder paste thickness deviation should be controlled within ±10%.
Defective Product Handling
For PCBs with printing defects, promptly rework or scrap them to prevent defective products from flowing into subsequent processes. Simultaneously, analyze the root causes and optimize process parameters to prevent recurring issues.

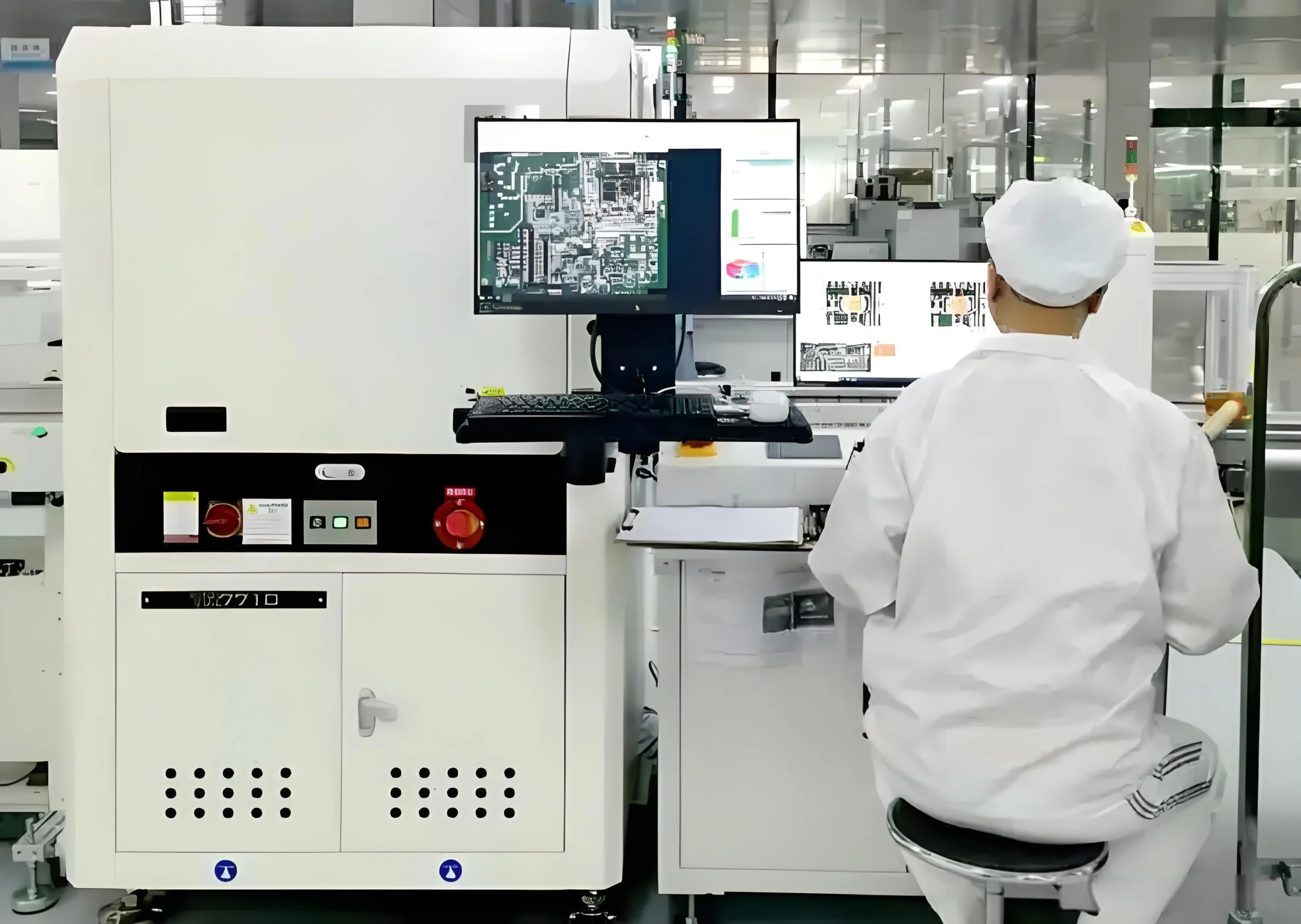

Caption: Real-time monitoring tools ensure consistent quality.
Equipment Maintenance and Calibration: Der “Guarantee” of Stable Operation
The stable operation of SMT printers relies on regular maintenance and calibration.
Routine Maintenance
Regularly clean, lubricate, and replace worn parts of the printer. Zum Beispiel, replace the squeegee every 3 months and perform a comprehensive maintenance of the conveyor system every 6 months.
Precision Calibration
Calibrate the printer’s precision quarterly to ensure its printing accuracy meets requirements. Zum Beispiel, the printer’s repeat positioning accuracy should be controlled within ±0.01mm.
Caption: Regular maintenance ensures long-term reliability.
Personnel Training and Operational Standards: Der “Guardians” of Quality
The skill level of operators directly impacts printing quality.
Training and Assessment
Regularly train operators to ensure they master the operation and maintenance of the printer. Simultaneously, establish operational standards to clarify processes and responsibilities.
Continuous Improvement
Through regular assessments and evaluations, continuously improve operators’ skill levels and drive ongoing enhancements in printing quality.

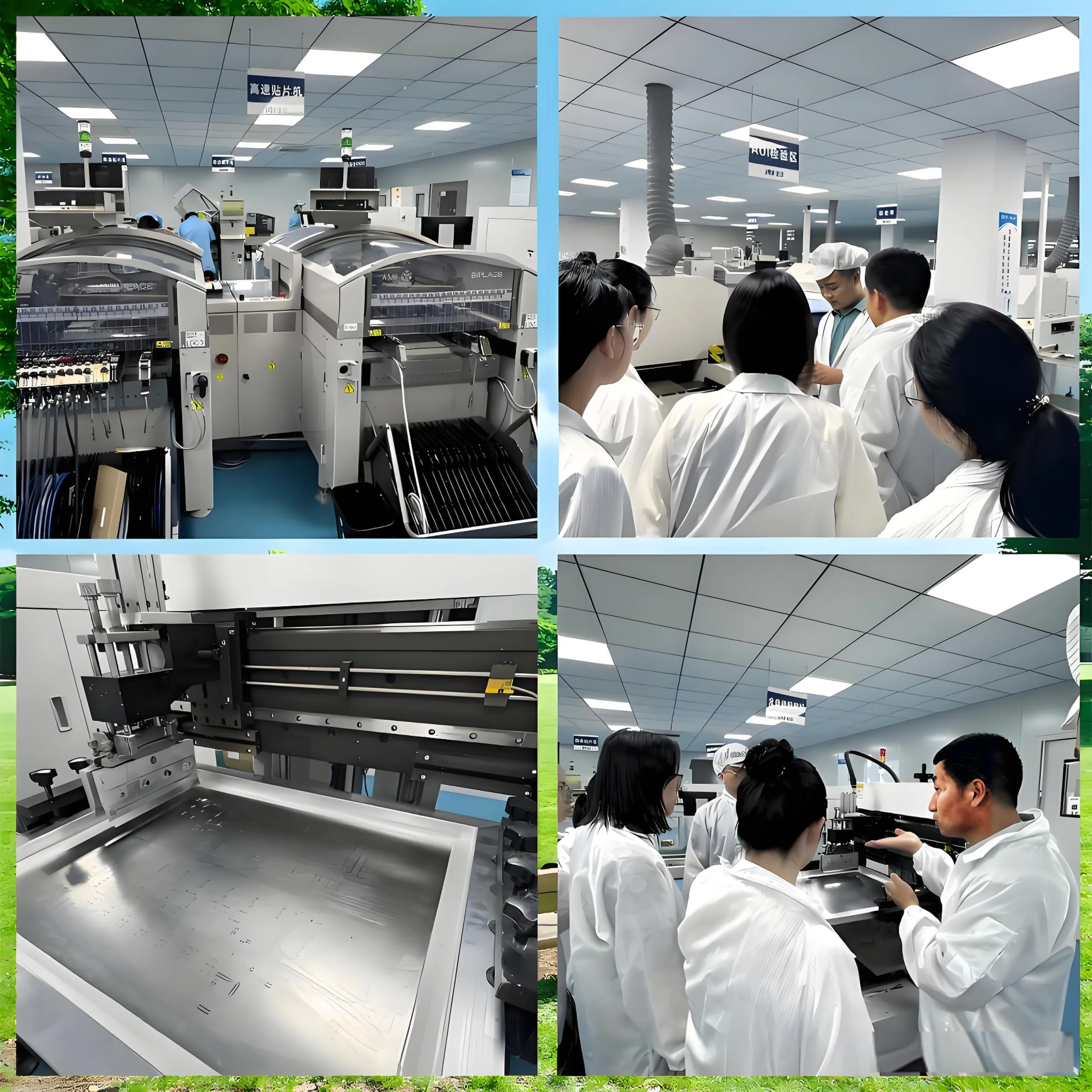

Caption: Skilled operators are key to maintaining high standards.
Abschluss
Preventing solder paste printing defects in SMT printers is a systematic project that requires comprehensive measures in stencil management, parameter optimization, alignment accuracy, solder paste management, printing inspection, equipment maintenance, and personnel training. Only by striving for excellence in every detail can we ensure the high quality and stability of solder paste printing, laying a solid foundation for subsequent processes and ultimately achieving high reliability and yield in PCBA products. As a poet once said, “Precision is poetry, and details are art.” In the world of SMT printing, only by perfecting every detail can we compose a flawless manufacturing masterpiece.
Caption: Excellence in every detail leads to perfection.
