14-layer 25G high-speed HDI PCB design - Und

Hochgeschwindigkeits-PCB-Design/

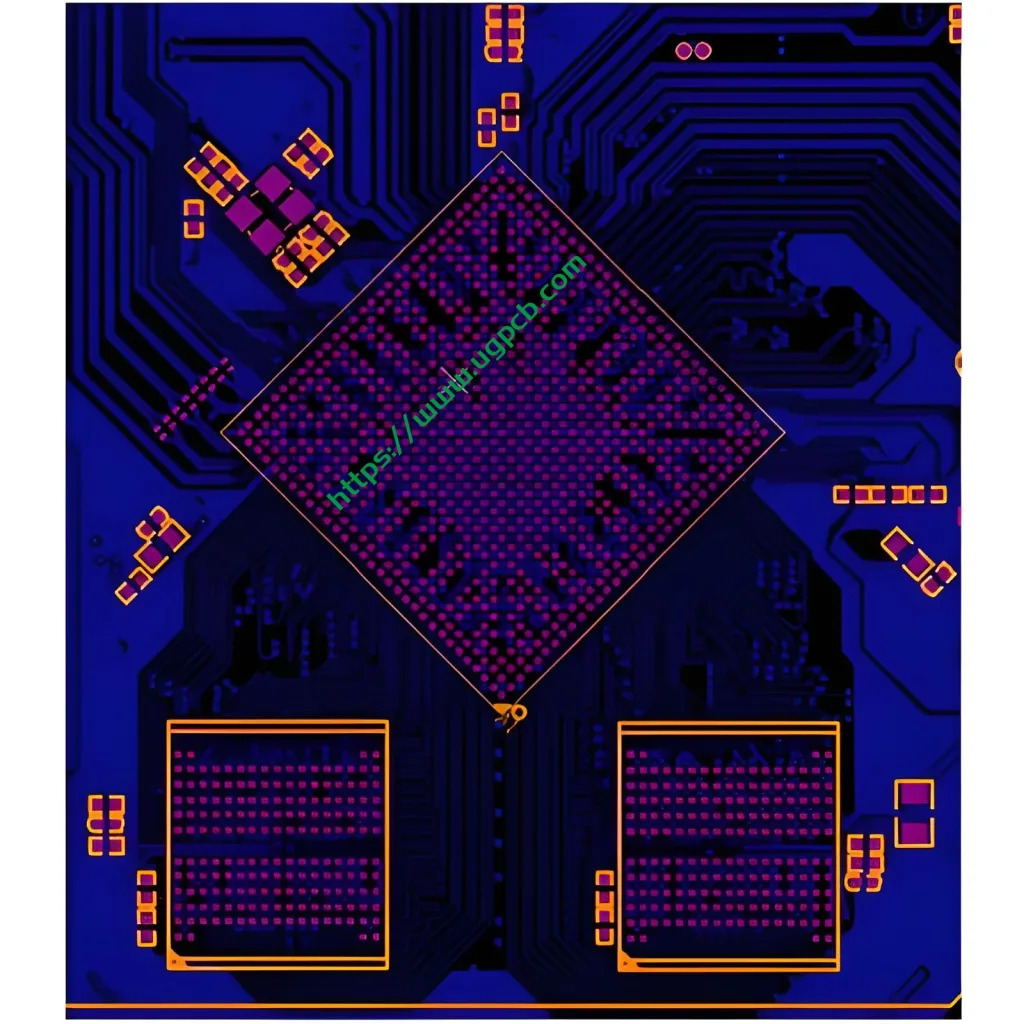

14-layer 25G high-speed HDI PCB design

Name: 14-layer 25G high-speed HDI PCB design

Platte: TG170 /TG180, F4BM, FR4, FR1-4, usw.

Gestaltbare Ebenen: 1-32 Schichten

Mindestlinienbreite und Zeilenabstand: 3Mil

Minimale Laserapertur: 4Mil

Minimale mechanische Blende: 8Mil

Dicke der Kupferfolie: 18-175cm (Standard: 18cm35cm70cm)

Schälfestigkeit: 1.25N/mm

Mindestlochdurchmesser: einseitig: 0.9mm/35mil

Mindestlochdurchmesser: 0.25mm/10mil

Blendentoleranz: ≤φ0,8 mm ± 0,05 mm

  • Produktdetails

High Performance Characteristics

High Insulation Reliability and Micro-Via Reliability

High insulation reliability and micro-via reliability;

High Glass Transition Temperature (Tg)

High glass transition temperature (Tg);

Low Dielectric Constant and Low Water Absorption

Low dielectric constant and low water absorption;

High Adhesion and Strength to Copper Foil

High adhesion and strength to copper foil;

Uniform Insulating Layer Thickness

The thickness of the insulating layer after curing is uniform.

Additional Advantages

Gleichzeitig, since RCC is a new product without glass fiber, it is conducive to laser and plasma etching processing, and is conducive to lightweight and thin multi-layer circuit boards. Zusätzlich, there are 12μm, 18μm, and other thin copper clad laminates, which are easy to process.
