Umfassender Leitfaden für 4-lagige Rogers-Sprühzinn-Leiterplatten (RO4350B)

Produktübersicht: What Is a 4-Layer Rogers Spray Tin PCB Board?

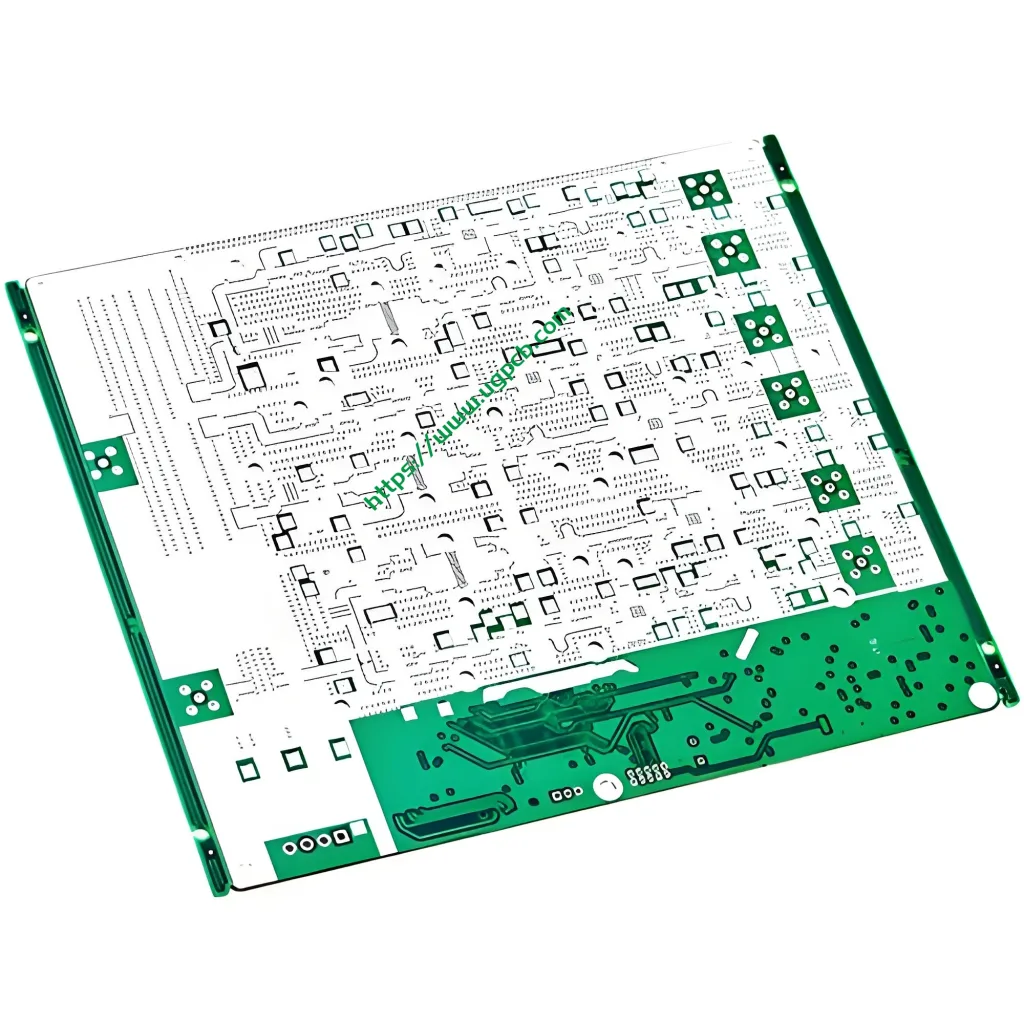

A 4-Schicht Rogers Spray Tin PCB-Platine uses Rogers RO4350B high-frequency laminate as its core material. It applies a lead-free hot air solder leveling (Bluten) beenden. This high-frequency multilayer printed circuit board serves 5G communication base stations, RF-Frontend-Module, and millimeter-wave radar systems. UGPCB offers this product as a key solution in our Hochfrequenz-Leiterplatte line.

The global high-frequency and Hochgeschwindigkeitsplatine market continues to grow rapidly. According to QYResearch, the market size reached approximately USD 3.611 Milliarden in 2024 and expects to grow to about USD 6.924 Milliarden von 2031. This represents a compound annual growth rate (CAGR) von 9.95%. Der 4-Schicht Rogers Spray Tin PCB-Platine plays an important role in this expanding market.

Scientific and Accurate Product Classification

Based on IPC-6012 Qualifikations- und Leistungsspezifikation für starre Leiterplatten, this product falls into the following category: rigid multilayer printed board with plated-through holes, Hochfrequenzlaminat, 4-layer structure, lead-free HASL finish. Under material classification, it belongs to ceramic-filled hydrocarbon resin high-frequency copper-clad laminates (RO4000 series), specifically the RO4350B type. For application, we classify it as a base station RF/microwave printed circuit board.

Product Definition and Technical Specifications

UGPCB designs and manufactures this 4-Schicht Rogers Spray Tin PCB-Platine as a high-frequency multilayer circuit board. It uses Rogers RO4350B laminate as the primary material. The 4-layer structure achieves high-frequency signal transmission and electrical interconnection. The lead-free HASL process completes the pad surface finish. This design meets both high-frequency performance and environmental compliance requirements for base station subboards.

Key Parameters Table

Working Principle and Electrical Characteristics

Der 4-Schicht Rogers Spray Tin PCB-Platine operates based on transmission line theories such as Mikrostreifen, Streifenleitung, und Coplanar -Wellenleiter. When high-frequency signals travel along the circuit, die Dielektrizitätskonstante (Dk) of the substrate determines the signal propagation speed and wavelength. The dissipation factor (Df) determines the energy loss during transmission.

Rogers RO4350B material offers excellent properties:

• Dielektrizitätskonstante (Dk): typischer Wert von 3.48 (±0.05 tolerance) bei 10 GHz. This tightly controlled Dk value allows precise impedance control to target values like 50Ω or 75Ω. This forms the physical basis for stable high-frequency circuit performance. Rogers official data confirms that both RO4350B and RO4835 maintain Dk tolerance within ±0.05. This far exceeds the ±0.2 or higher variation typical of standard FR-4 Materialien.

• Dissipationsfaktor (Df): typischer Wert von 0.0037 bei 10 GHz. This remains much lower than the loss of ordinary FR-4 (≈0.02). It effectively reduces high-frequency signal energy loss, ensuring RF signal transmission efficiency and signal-to-noise ratio.

• Temperature Stability: RO4350B’s dielectric constant shows excellent stability across a wide temperature range from -50°C to 150°C. The variation rate stays very low (Weniger als 0.05 ppm/° C.). This ensures stable operation of base station equipment even in harsh high or low temperature environments.

Product Structure and Stackup Design

Das 4-Schicht Rogers Spray Tin PCB-Platine uses a typical high-frequency 4-layer stackup configuration. As a rigid multilayer printed board, it must meet IPC-6012 specification requirements. This standard covers final product and surface finish requirements, conductor and via acceptance test frequencies, and quality conformance inspections. It also addresses electrical, mechanisch, and environmental performance criteria.

Product Features and Core Advantages

✅ Excellent High-Frequency Performance

The RO4350B substrate features a tight Dk tolerance of 3.48±0.05 combined with a low Df of 0.0037. This allows the 4-Schicht Rogers Spray Tin PCB-Platine to support signal transmission up to 10 GHz and even higher frequency bands. It works especially well for RF front-end applications such as base station subboards.

✅ Superior Thermal Stability

RO4350B material exhibits a coefficient of thermal expansion (CTE) that closely matches copper foil. In thermal cycling tests from -50°C to 150°C, the Z-axis CTE remains approximately 40 ppm/° C.. This significantly reduces the risk of delamination compared to standard FR-4 materials (which range from 60 Zu 70 ppm/° C.). Daher, Das 4-Schicht Rogers Spray Tin PCB-Platine ensures high reliability during long-term base station operation.

✅ Good Fabrication Friendliness

Unlike traditional PTFE (Polytetrafluorethylen) Hochfrequenzmaterialien, RO4350B is a thermoset hydrocarbon ceramic composite. Its processing method matches standard epoxy/glass (FR-4). It requires no special via treatment or plasma activation. daher, production costs for this 4-Schicht Rogers Spray Tin PCB-Platine stay much lower than for conventional microwave laminates.

✅ Strong Process Compatibility

The lead-free HASL surface treatment uses SAC305 alloy (Sn96.5Ag3.0Cu0.5). This complies with RoHS environmental directives. Lead-free HASL offers relatively low cost, good solderability, and good corrosion resistance. According to industry standards like IPC-A-610 and IPC-6012, HASL-finished PCBs have a shelf life of approximately 12 Monate. Typical tin layer thickness ranges from 1 Zu 40 μm.

✅ Excellent Flame Retardancy

RO4350B material achieves UL 94 V-0 Flammenbewertung. This represents the highest flame retardancy level in the standard for flammability testing of plastic materials. After removing the flame, the material self-extinguishes within 10 seconds and produces no flaming drips. This feature enables the 4-Schicht Rogers Spray Tin PCB-Platine to meet the safety and fire protection requirements of base station equipment.

✅ Authoritative Certifications

UGPCB 4-Schicht Rogers Spray Tin PCB-Platine fully complies with international standard systems. Dazu gehören ISO 9001:2015 quality management certification, UL 94 V-0 Flammenbewertung, IPC-6012 rigid board qualification and performance specification, and IPC-A-600 printed board acceptance standard.

Design Guidelines and Key Considerations

When designing a 4-Schicht Rogers Spray Tin PCB-Platine, engineers should focus on the following areas:

1. Impedance Control Design

Transmission line theory gives the characteristic impedance of a microstrip line:

Where εr is the dielectric constant (3.48 for RO4350B), H ist die dielektrische Dicke, w ist die Spurbreite, und t ist die Kupferdicke. The stable Dk of this 4-Schicht Rogers Spray Tin PCB-Platine provides a physical foundation for precise impedance control. We recommend using impedance calculation software for accurate simulation.

2. Minimum Line Width and Spacing Limits

This product supports a minimum line width and spacing of 5 Mil (≈0,127 mm) and a minimum drilled hole diameter of 0.3 mm. Designers must consider manufacturing tolerances. For high-density interconnect needs, maintain proper spacing between signal lines and ground planes to optimize signal integrity.

3. Wärmemanagement-Design

The outer copper thickness reaches 2 OZ (≈70 μm) while the inner copper thickness is 1 OZ (≈35 μm). This thicker copper layer design not only enhances the current-carrying capacity of the 4-Schicht Rogers Spray Tin PCB-Platine but also provides excellent heat dissipation. For high-power applications like base station subboards, optimize heat distribution by adding ground via arrays and thermal pads.

4. HASL Process Adaptation

Lead-free HASL requires higher solder pot and hot air temperatures (typically 235–250°C). The soldering temperature can reach 255±5°C. When designing this 4-Schicht Rogers Spray Tin PCB-Platine, avoid dense, fine-pitch pads on large copper areas. Also ensure adequate solder mask dam width. This prevents solder bridging issues caused by uneven tin layer thickness.

5. Lead-Free Process Control

Lead-free HASL demands strict process control. The solder pot must use titanium alloy or cast iron to withstand the high temperature corrosion of lead-free solder. The temperature difference across the pot must stay within ±2°C. A powerful hot air system and fast air cooling module ensure uniform tin layer application and leveling.

Manufacturing Process and Quality Control

UGPCB follows a standardized process flow for producing the 4-Schicht Rogers Spray Tin PCB-Platine. This ensures consistent product quality and reliability. The core manufacturing steps for multilayer rigid PCBs include inner layer circuit formation, lamination and pressing, drilling and via metallization, outer layer circuit formation, Lötmaske, and surface finishing. UGPCB sets inspection points at each critical stage. All products fully meet IPC-6012 qualification and performance requirements.

Application Scenarios and Use Cases

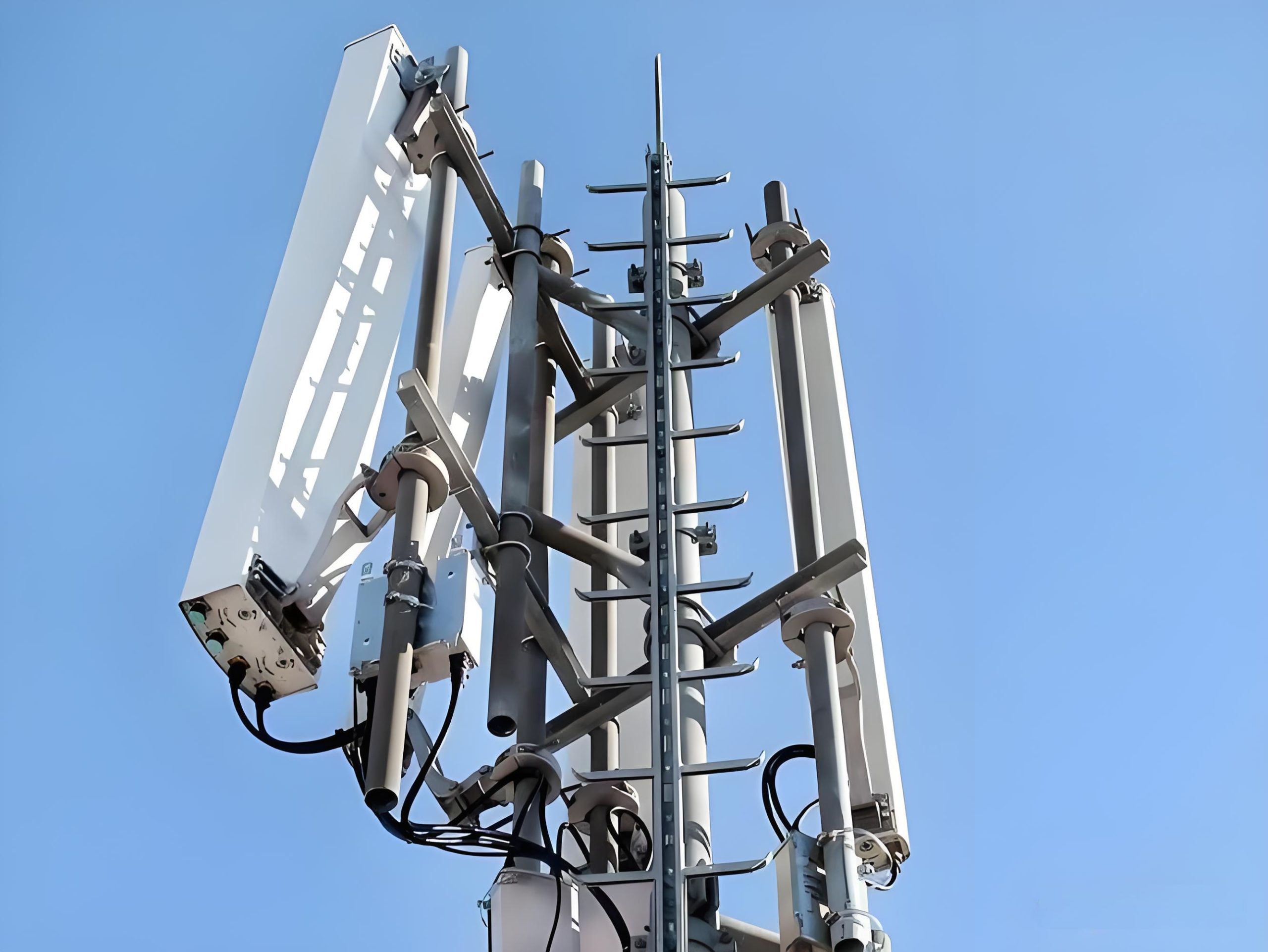

Primäre Anwendung: Base Station Subboard

Das 4-Schicht Rogers Spray Tin PCB-Platine is specifically designed for base station subboards. It serves as a critical interconnect carrier in RF transceiver modules, power amplifier modules, antenna tuning modules, and filters within 5G/4G communication base stations.

Typische Anwendungsfälle

Request a Quote or Technical Support

UGPCB provides high-quality 4-Schicht Rogers-Sprühzinn-Leiterplatten and complete high-frequency PCB solutions to global customers. We operate advanced high-frequency PCB production lines and maintain a professional engineering team. We implement full-process quality control from customer design input to final product delivery.

📩 How to Request a Quote or Contact Technical Support

You can reach us through any of the following methods:

• Visit the UGPCB official website (www.ugpcb.com) and submit an online inquiry form

• Send your design files (Gerber-Dateien) to our sales email address

• Call our hotline to discuss your technical requirements with our engineers

To speed up your inquiry, please provide the following information:

• Design Files: Gerber-Dateien, Bohrdateien, stackup diagram, impedance control requirements

• Technische Spezifikationen: Special Dk/Df requirements, tolerances, test and acceptance standards for the 4-Schicht Rogers Spray Tin PCB-Platine

• Quantity and Lead Time: Prototype or production phase, target delivery schedule

• Besondere Anforderungen: Flying probe testing, AOI -Inspektion, 100% elektrische Prüfung
