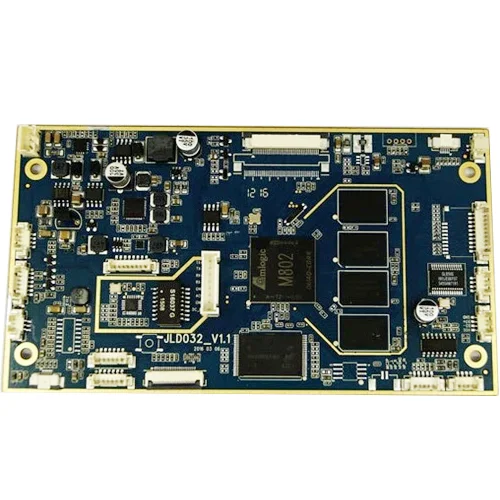

Automotive Control Module PCB Assembly

Product Description

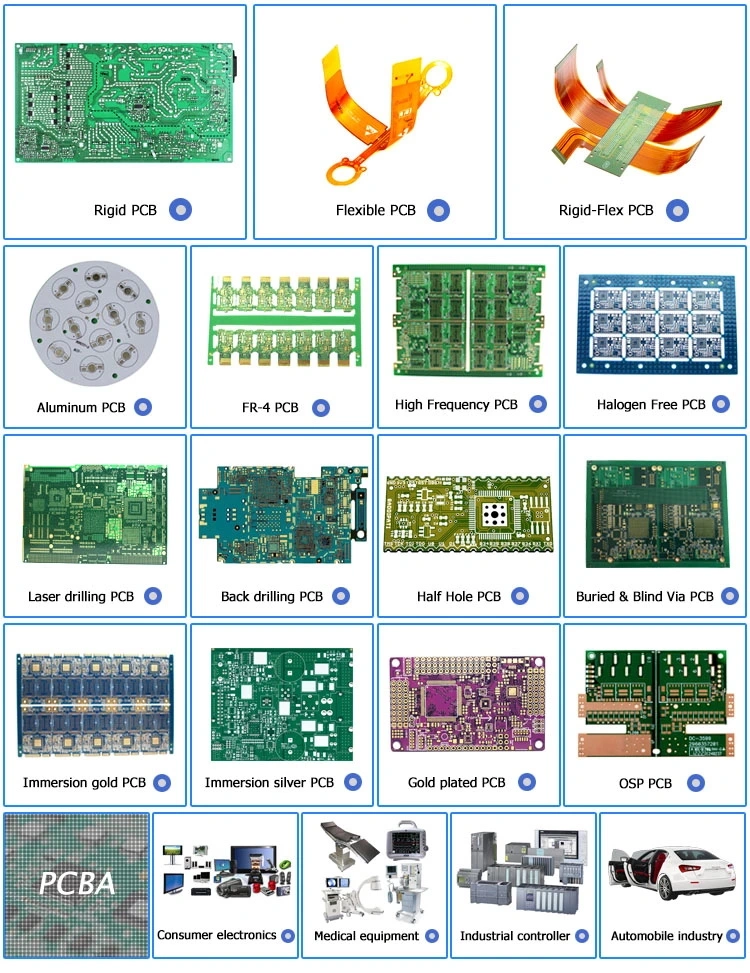

PCBA/PCB Assembly/Electronic Assembly/PCB Board/Circuit Board/Printed Circuit Board

Schicht:	1-40 Schicht
Surface:	HASL/OSP/ENIG/ImmersionGold/Flash Gold/Gold finger ect.
Kupferdicke:	0.25 Oz -12 Oz
Material:	FR-4,Halogen free,High TG,Cem-3,PTFE,Aluminum BT,Rogers
Board thickness	0.1 to 6.0mm(4 to 240mil)
Minimum line width/space	0.076/0.076mm
Minimum line gap	+/-10%
Outer layer copper thickness	140eins(Schüttgut) 210eins(pcb prototype)
Inner layer copper thickness	70eins(Schüttgut) 150eins(pcb protytype)
Min.finished hole size(Mechanical)	0.15mm
Min.finished hole size (laser hole)	0.1mm
Aspect ratio	10:01(Schüttgut) 13:01(pcb prototype)
Solder Mask Color	Green,Blue,Black,White,Yellow,Red,Grey
Tolerance of dimension size	+/-0.1mm
Tolerance of board thickness	<1.0mm +/-0.1mm
Tolerance of finished NPTH hole size	+/-0.05mm
Tolerance of finished PTH hole size	+/-0.076mm
Delivery time	Mass:10~12d/ Sample:5~7D
Kapazität	35000sq/m

OUR SERVICE

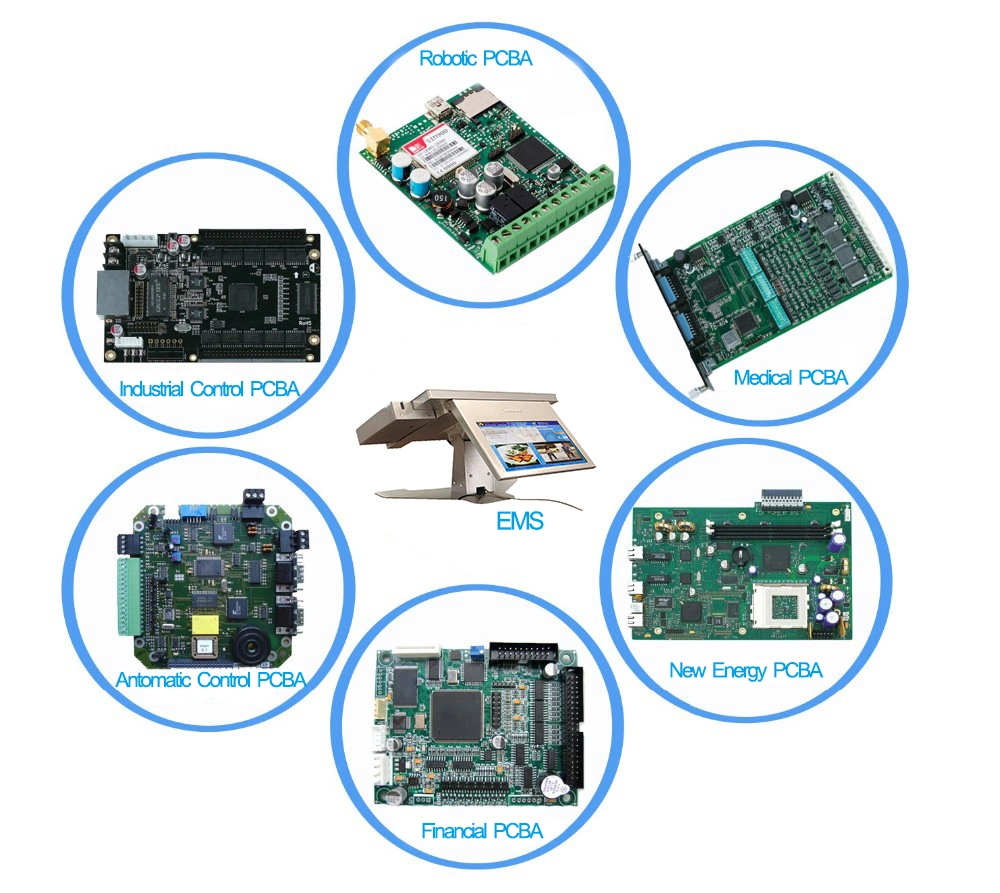

1、We offer high quality PCB & PCBA Service for Industrial control Board, Financial Industrial Board, Automatic PCBs, New enery controller PCBAs, Medical equipment printed circuits and other high level circuit boards.

2、We offer one-stop service for PCB , including PCB manufacturing, parts sourcing, Röntgen, AOI testing, Function testing, final assembly if requested.

COMPANY PROFILE

We have more than 10 years of SMT manufacturing experience, well appointed SMT ,DIP and assembly lines, offering one stop service from SMT,FPC,TAUCHEN,EMS, Schutzbeschichtung, Testen, final assembly, Komponentenbeschaffung ,design, peripheral products support and so on. we are equipped with High-speed and accurately SMT Equipment ,and we provide a whole range of SPI,AOI,IKT,FCT,Röntgen,ROHS and aging testing for products. All ourshop floors are dust free, all lines are lead free, we are ISO9001 certified company.
