Product Description
UGPCB specializes in electronics medical PCBA and PCB assembly with over 15 Jahrelange Erfahrung in der PCBA-Auftragsfertigung.
Capabilities
Factory Equipment
Our factory is equipped with multiple lines of SMT, Montage, and testing equipment, including brand-new Juki and Samsung SMT machines, full-automatic solder paste printing machines, ten-temperature zone reflow ovens, and wave-soldering ovens.
Quality Management
We have passed ISO9001:2015, IATF16949:2016, und ISO13485:2016 Zertifizierungen von Qualitätsmanagementsystemen, ensuring superior quality in our products and services.
Applications
Unsere PCBA und Produkte werden häufig in der industriellen Steuerung eingesetzt, medizinische Geräte, Lebensmittelausrüstung, Lasermodule, Kommunikationsgeräte, SPS-Module, Wandlermodule, Verkehrskontrolle, Automobile, Smart-Home-Systeme, und intelligentes POS.
Überlegene Qualität
Robust Quality System
As an ISO9001 certified company, we have a very robust quality system and professional quality team.
Zuverlässige Lieferkette
We have established long-term strategic cooperation with top electronic component manufacturers worldwide, such as Xilinx, VON, Avnet, und Zukunft.
Hohe Fertigungskapazität
Our PCB can reach a max of 64 Schichten, with minimum placement component size meeting 0201 and minimum placement spacing of BGA meeting 0.3mm. We offer complete inspection and testing for PCBA, including SPI, AOI, IKT, FCT, Röntgen, ROHS, and aging.
Schnelle Abwicklung
Quick Quotation
We offer fast and open BOM quotations to customers.
Professional Response
With 10 years of cooperation experience with European and North American clients, we quickly and professionally respond to customer requirements.
Schlüsselfertiger Service
Comprehensive Services
We professionally offer PCB Assembly (SMT, TAUCHEN, MI, KI), Komponentenbeschaffung, Endmontage des Produkts, Testen, PCBA-konforme Beschichtung, Elektronisches Produktdesign, und Unterstützung für Peripherieprodukte.
Global Reach
Our factory is located in Shenzhen, and we have warehouses in Hong Kong, Europa, und Nordamerika. We can prepare boards at the warehouse closest to the customer and offer Kanban service according to customer requirements.
IP-Schutz
We strongly believe in IP protection and have proven records to support this.
SMT & DIP Machines List
| NEIN | Maschinenname | Maschinentyp | Menge | Herstellung | Kapazität | Bemerkungen |
|---|---|---|---|---|---|---|
| 1 | Auto. Druckmaschine | GKG-G5 | 3 | GKG | Zykluszeit:<15S<> | Plattengröße:420520mm-737737mm, Größe der bedruckbaren Tafel:5050mm-400310mm, Druckgenauigkeit:±0,025 mm, Wiederholte Genauigkeit:±0,01 mm |
| 2 | Platzierungsmaschine | SM481 | 2 | SAMSUNG | Placement speed: 39000 CPH | Corresponding element:0201-55mmIC(H 15mm), Placement accuracy:Span ±0,05 mm,QFP ± 0,03 mm, Min Size of board:50mm(L)40mm(W), Max Size of board:740mm(L)400mm(W)(Standard) |
| SM482 | 1 | SAMSUNG | Placement speed: 28000 CPH | Corresponding element:0201-55mmIC(H 15mm), Placement accuracy:Span ±0,05 mm,QFP ± 0,03 mm, Min Size of board:50mm(L)40mm(W), Max Size of board:740mm(L)400mm(W)(Standard) | ||
| SM421 | 1 | SAMSUNG | Placement speed: 21000 CPH | Corresponding element:0201-55mmIC(H 15mm), Placement accuracy:Span ±0,05 mm,QFP ± 0,03 mm, Min Size of board:50mm(L)40mm(W), Max Size of board:740mm(L)400mm(W)(Standard) | ||
| KE-3020AL | 1 | JUKI | Placement speed: 17100 CPH | Corresponding element:0201-50mmIC(H 20mm), Placement accuracy:Span ±0,04 mm,QFP±0,04 mm, Corresponding PCB Size:Min:40mm(L)40mm(W) Max:650mm(L)360mm(W) | ||
| KE-3010AL | 1 | JUKI | Placement speed: 18500 CPH | Corresponding element:0201-33mmIC(H 12mm), Placement accuracy:Span ±0,04 mm,QFP±0,04 mm, Corresponding PCB Size:Min:40mm(L)40mm(W) Max:650mm(L)360mm(W) | ||
| 3 | Reflow-Ofenmaschine | JTR-1000 | 1 | JT | 650-800mm/Minute | Number of zone:10 Zonen, Temperature accuracy: +/-1°C |
| AS-1000 | 1 | JT | 650-800mm/Minute | Number of zone:10 Zonen, Temperature accuracy: +/-1°C | ||
| NS-1000-N | 1 | JT | 650-800mm/Minute | Number of zone:10 Zonen, Temperature accuracy: +/-1°C | ||
| 4 | IC-Schrank | STF100S | 1 | HengKai | 22 Arten von Materialien | |
| 5 | AOI | JTA-300 | 1 | JT | 20000 Komponenten/H | Color image matching Resolution:Standardmäßig 20 µm/Pixel, Sichtbarer Bereich:4433mm/3224mm, Geschwindigkeit:0.25 Sek./FOV |
| ALD515 | 1 | Aleader | 20000 Komponenten/H | Color image matching Resolution:Standardmäßig 20 µm/Pixel, Sichtbarer Bereich:4433mm/3224mm, Geschwindigkeit:0.25 Sek./FOV | ||
| 6 | IC-Backmaschine | 100 | 1 | Jingyi | Innenmaß L=600MM, B=500MM, H=1000MM | Temperaturbereich:0-250(°C) |
| 7 | BGA-Rework-Maschine | LK-T6 | 1 | LK | Maximale Heißlufttemperatur: 400 °C, Hochpräziser Temperaturregler, Temperaturfehler von 1 ° | Größe:69CM55CM48CM, Welding success rate of up to 98% |
| 8 | Wave soldering machine | FM-350 | 1 | SUNEAST | Transmission speed: 5001800mm/Min., Board size: 50350mm(W)*120mm(H), Board height: 750±20mm, Preheating temperature: Max.200°C, Tin furnace temperature: Max.300°C | |
| 9 | X-Ray | View X1800 | 1 | Scienscope | Image speed (fps):30, Detection range (cm2):0.05-30 | X-ray tube type:Transmissive closed tube, Spatial resolution (eins):5, Tube voltage (KV):90 (optional 100), Tube current (uA):256, Magnification:500X |
| 10 | Conformal Coating machine | iCoat-3 | 1 | ANDA | Geschwindigkeit:Max 800mm/S | Repeated positioning accuracy:±0.02mm |

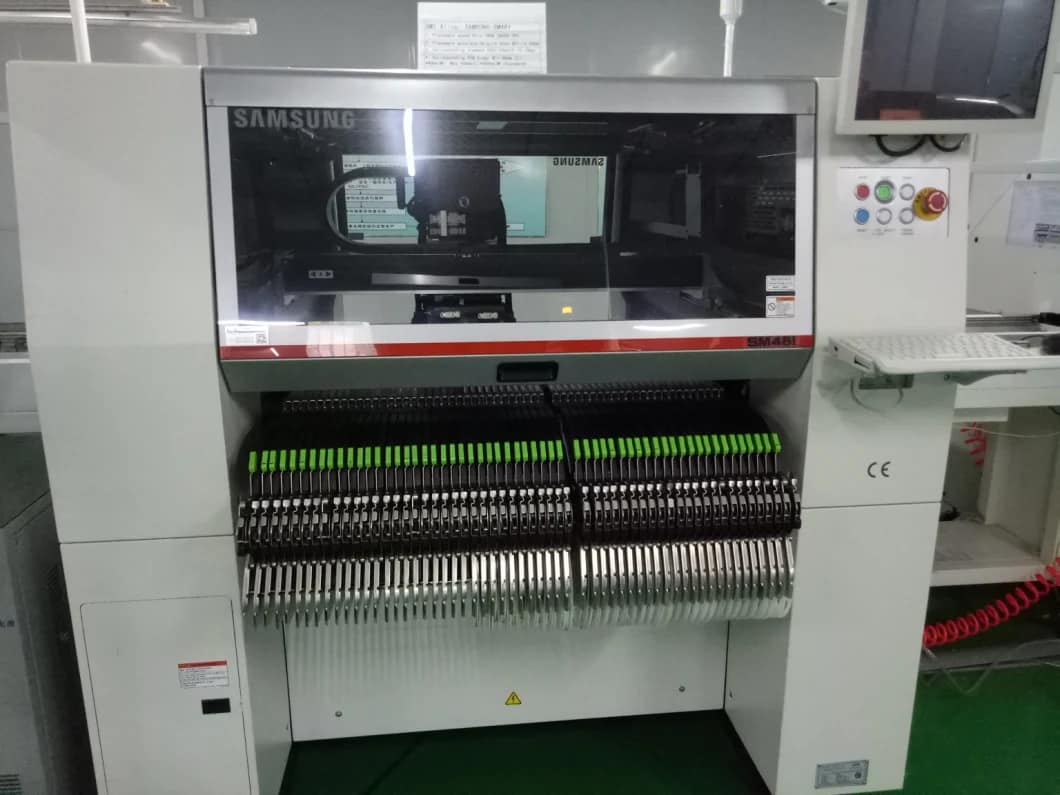

Photos of SMT & DIP Machines and Inspection Machines
Our Services
We offer high-quality PCB & PCBA services for industrial control boards, financial industrial boards, automatic PCBs, new energy controller PCBAs, medical equipment printed circuits, and other high-level circuit boards. We offer a one-stop service for PCB, including PCB manufacturing,
