Fundamental Contents

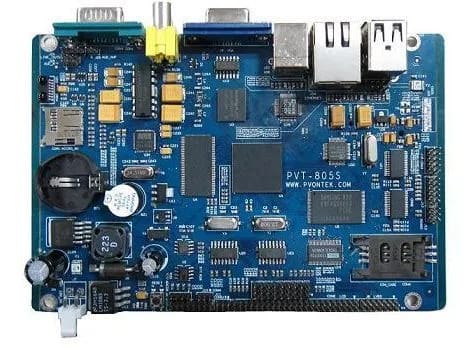

The so-called industrial control motherboard
- CPU can be a common plug-in type, or a part of it is a board-mounted type. The main reason is to see
- Memory slot is usually 1-2
- Integrated graphics card
- Many 4th I/O devices, but some motherboards will omit the printing port
- PCI slot is usually about 2-3
- Plate type is relatively small
Special or General Circuit Board for Industrial Control
The bottom circuit is completed, und IO ist reserviert. Nach dem Kauf der industriellen Steuerplatine, Verbinden Sie die auf der Platine reservierten Ein- und Ausgänge mit den eigenen Geräten des Benutzers, wie zum Beispiel ein Motor, Magnetventil, Sensor, um die gewünschte Funktion abzuschließen.
Dedicated Circuit Board
Eine dedizierte Leiterplatte ist eine Platine, die speziell für eine bestimmte Funktion entwickelt wurde, wie zum Beispiel eine Temperaturkontrollplatine. Nach dem Kauf, Der Eingangsanschluss ist mit einem Thermoelement verbunden, and the output port is connected to a heating contactor or solid-state relay to control the heating device to complete temperature control and current flow. Bedienfelder, Motion-Control-Panels, usw.
Universal Control Board
Most of which can be programmed, durch die eigene Sekundärentwicklung des Benutzers, Erfüllt bestimmte Funktionen, und ist vielseitig einsetzbar. Zum Beispiel, SPS ist eine allgemeine industrielle Steuerplatine. Nachdem der Benutzer das Programm geschrieben und die Eingabe kompiliert hat, Es können verschiedene Funktionen ausgeführt werden. Digitaler Eingang, analoger Eingangsanschluss, Hochgeschwindigkeits-Zähleranschluss, digitaler Ausgangsanschluss, analoger Ausgangsanschluss, and some also have communication functions.
Characteristic
Working Temperature and Heat Dissipation
Industrial control motherboards can work stably and without failure between -20°C and 60°C, and even some industrial control motherboards adopt special wide temperature design, and the temperature range can reach -20°C to 70°C. This is a severe test for the heat dissipation scheme and heat dissipation efficiency of the organization. In the heat dissipation design of the industrial control motherboard mechanism, an all-aluminum mechanism shell and a special heat dissipation design must be used, and special treatment must be carried out for large heat-generating units such as the CPU, north and south bridges, and hard drives to ensure the normal operation of the industrial control motherboard and the whole machine.
Manageability
In addition to providing similar remote connection management, the industrial control motherboard can also realize remote unattended automatic power on and off. Through the embedded IPMB and SMNP-1000 modules, the management, Aufnahme, and transmission of real-time system operation information can be realized.
Protection Function
Through special design, the industrial control motherboard can realize the functions of watchdog automatic restart and anti-surge impact in case of abnormal situations such as a crash, and fully guarantee the high stability of the system in harsh environments.
Market Size
Industrial control motherboards are mainly customized products, with relatively small output and market scale, and the cost of switching to other brands of motherboards is high. daher, users who choose industrial control motherboards generally do not easily switch to other brands.
UGPCB Services

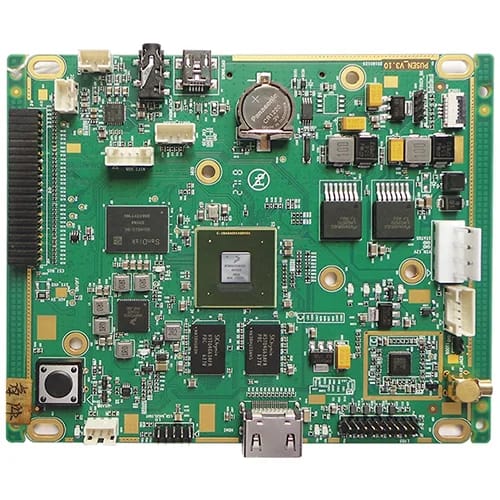

UGPCB provides Mass industrial control motherboard assembly services. This is a PCBA one-stop assembly factory with senior industry experience. Welcome to know us.
