Introducción

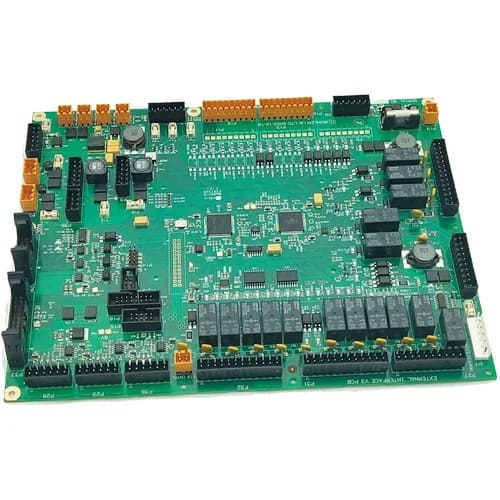

UGPCB provides High Quality Double-Sided Fr4 PCB OEM Assembly Service. This is a PCBA one-stop assembly factory with senior industry experience. Welcome to inquiry.
1. Características
AEC-Q100 Qualification
AEC-Q100 qualified for automotive applications – Device temperature grade 2: –40°C to +105°C, TA.
HDMI and FPD-Link III Support
- Supports TMDS clock up to 96 MHz for WXGA and 720p60 or 1080i60 resolutions with 24-bit color depth.
- FPD-Link III outputs.
- High-definition multimedia (hdmi) v1.4b inputs.
- HDMI-mode DisplayPort (DP++) inputs.
- HDMI audio extraction for up to 8 canales.
Cable and Temperature Compensation
- Supports up to 15 meters of cable with automatic temperature and aging compensation.
- Monitors spread-spectrum input clock to reduce EMI.
Communication Protocols
- I2C (master/slave) with 1-Mbps fast-mode plus.
- Compatible with DS90UB926Q-Q1 and DS90UB928Q-Q1 FPD-Link III deserializers.
2. Aplicaciones
Automotive Infotainment
- IVI head units and HMI modules.
- Rear seat entertainment systems.
- Digital instrument clusters.
Surveillance Cameras
- Surveillance cameras.
Consumer Inputs
- Consumer input HDMI port.
3. Descripción
HDMI to FPD-Link III Bridge
The DS90UB929-Q1 is an HDMI to FPD-Link III bridge device which, in conjunction with the FPD-Link III DS90UB926Q-Q1/DS90UB928Q-Q1 deserializers, supplies 1-lane high-speed serial stream over cost-effective 50-Ω single-ended coaxial or 100-Ω differential shielded twisted-pair (STP) cable. It serializes an HDMI v1.4b input supporting video resolutions up to WXGA and 720p with 24-bit color depth. The DS90UB929-Q1 is also compatible with the DS90UB940-Q1/DS90UB948-Q1 deserializers.
