Introduction to Fibre-Optical Module PCB

Overview and Definition

Fibre-Optical Module PCBs, also known as Fiber Optic Boards, are specialized printed circuit boards (PCB) designed for use in fiber optic communication systems. These PCBs are integral components in modern telecommunications and data transmission networks due to their ability to handle high-speed data transfer with minimal signal loss.

Purpose and Application

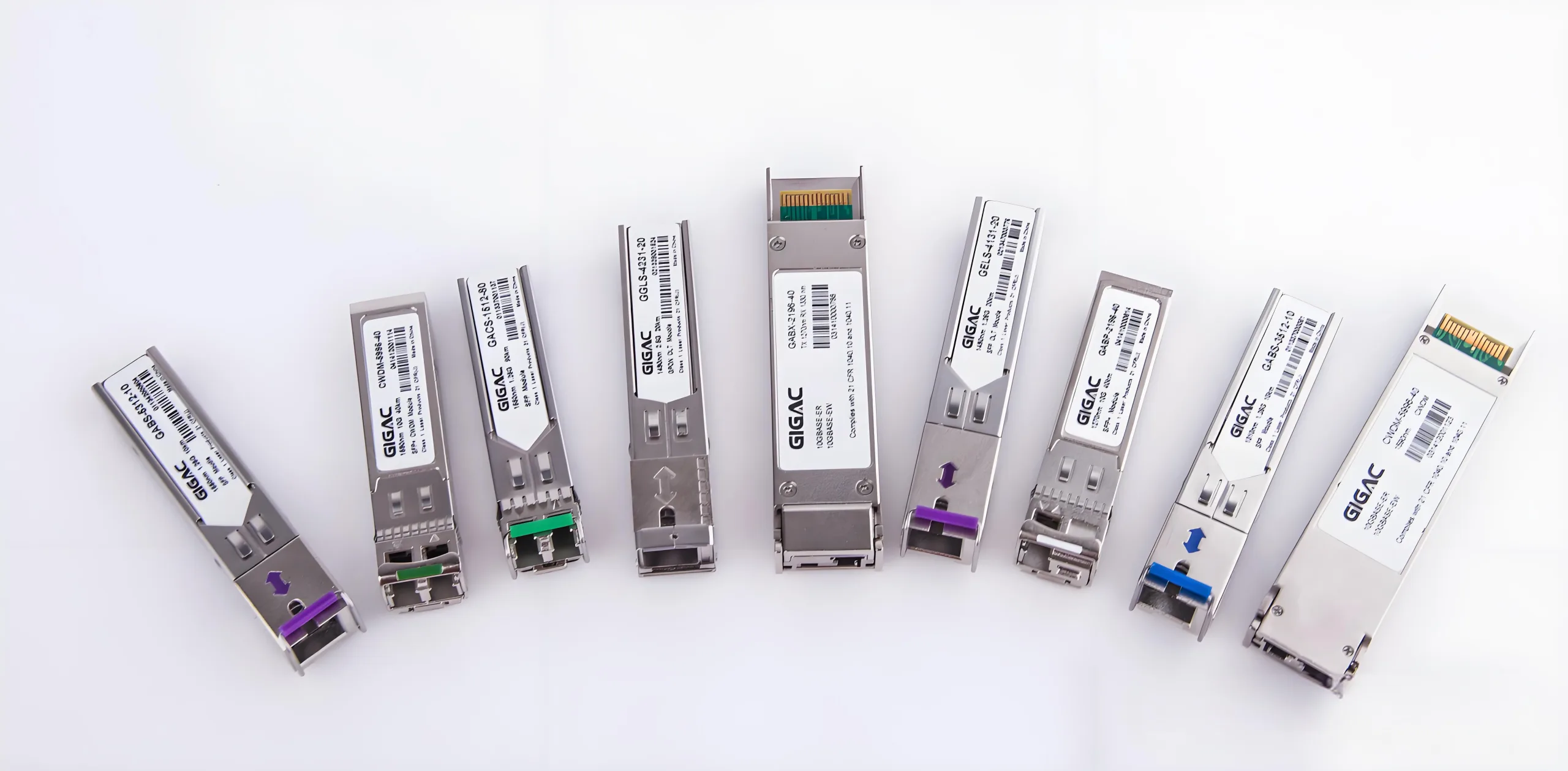

The primary purpose of a Fibre-Optical Module PCB is to provide a reliable platform for mounting and interconnecting optical components such as lasers, photodetectors, and other optoelectronic devices. These PCBs are commonly used in:

• Telecommunications equipment
• Data centers
• High-speed networking devices
• Medical imaging equipment
• Industrial automation systems

Classification

Fibre-Optical Module PCBs can be classified based on several criteria including:

• Nombre de couches (par ex., single-layer, double-sided, multi-layer)
• Material composition (par ex., MEGTRON 6, Panasonic M6)
• Contrôle d'impédance (par ex., 50 ohms, 100 ohms)
• Traitement de surface (par ex., immersion gold, doigts d'or)

Material and Build

Matériel

The Fibre-Optical Module PCB utilizes MEGTRON 6, also known as Panasonic M6, which is a high-performance material offering excellent thermal stability and mechanical strength. This makes it ideal for applications requiring durability and reliability.

Construction Details

• Calques: The PCB consists of 8 couches, providing ample space for complex circuit designs and component placement.
• Couleur: Available in green and white, allowing for easy differentiation and identification in various applications.
• Épaisseur finie: The PCB has a finished thickness of 1.0mm, optimizing both structural integrity and space efficiency.
• Épaisseur du cuivre: With a copper thickness of 1OZ (ounce), the PCB ensures efficient electrical conductivity.

Performance Characteristics

• Impedance Control: The PCB maintains impedance values of 100 ± 7% et 50 ± 10%, ensuring consistent signal transmission quality.
• Speed: Capable of handling speeds up to 400g, making it suitable for high-frequency applications.
• Tolérance: The tolerance between the gold finger and plate edge is ±0.05mm, ensuring precise alignment and connection reliability.

Production Process

The manufacturing process of a Fibre-Optical Module PCB involves multiple stages including:

1. Material Preparation: Selecting and preparing the base material (MEGTRON 6).
2. Layer Stacking: Stacking multiple layers of the PCB material to achieve the desired thickness and functionality.
3. Pattern Etching: Using chemical etching or laser cutting to create the circuit patterns on each layer.
4. Laminage: Compressing the layers together under high pressure and temperature to form a cohesive unit.
5. Plating: Applying copper plating to the PCB surface to ensure good electrical connectivity.
6. Traitement de surface: Treating the surface with immersion gold and adding gold fingers to improve conductivity and corrosion resistance.
7. Contrôle de qualité: Conducting rigorous testing to ensure the PCB meets all performance specifications.

Key Features and Advantages

• High Signal Integrity: Maintains signal purity over long distances, crucial for fiber optic communications.
• Durability: Made from robust materials that withstand harsh environmental conditions.
• Precision: High precision in manufacturing ensures reliable connections and minimal signal loss.
• Versatilité: Suitable for a wide range of applications due to its adaptable design and material properties.

Usage Scenarios

Fibre-Optical Module PCBs are essential in scenarios where high-speed data transmission is critical, tel que:

• Telecommunication Networks: Ensuring seamless data flow across vast distances.
• Data Centers: Supporting the backbone of data storage and retrieval operations.
• Équipement médical: Enhancing the performance of diagnostic and imaging devices.
• Industrial Applications: Facilitating automation and control systems with high precision and reliability.

En conclusion, the Fibre-Optical Module PCB represents a pinnacle of technological advancement in the realm of high-speed data communication. Its meticulous design, superior materials, and stringent manufacturing processes collectively contribute to its unparalleled performance and reliability, making it an indispensable component in modern telecommunications and data center infrastructures. Whether it’s enabling lightning-fast internet connections or ensuring the accuracy of medical imaging, this PCB stands as a testament to human ingenuity in harnessing the power of light for information transfer.
