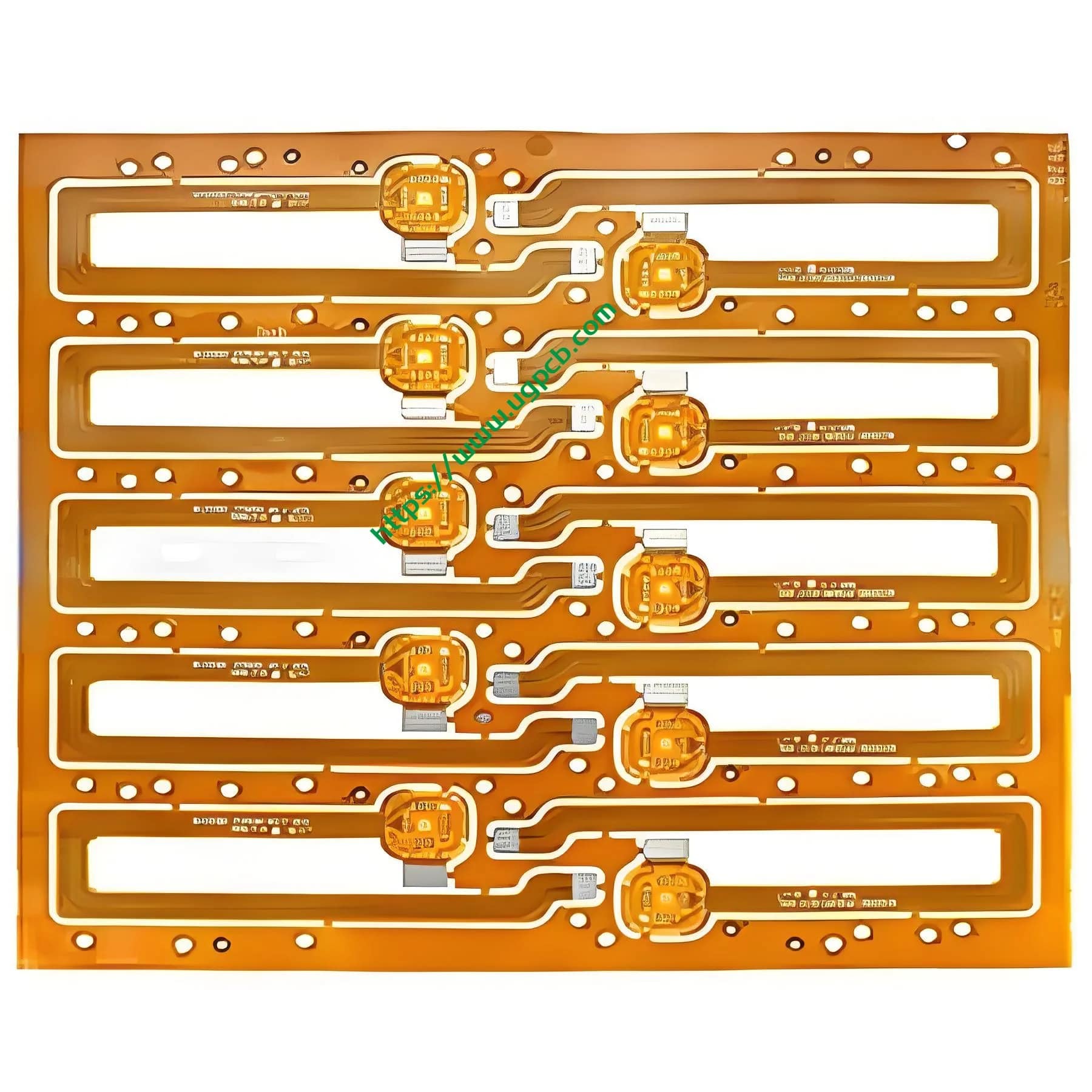

Fingerprint Identification FPCB

Introduction to Flexible PCB

Flexible PCB is a kind of printed circuit board which is made of polyimide or polyester film. It has high reliability and excellent flexibility. Referred to as soft board or FPC, il a les caractéristiques de haute densité, poids léger, and thin thickness.

Characteristics of FPCB

Épaisseur

The thickness of FPC must be more flexible and thinner.

Folding Resistance

Bending is the inherent characteristic of FPC. The future FPC must have stronger bending resistance, which must exceed 10,000 times. This requires better substrate.

Price

At this stage, the price of FPC is much higher than that of Rigid PCB. If the price of FPC comes down, the market will certainly be much broader.

Process Level

In order to meet the requirements of many aspects, the process of FPC must be upgraded. The minimum aperture, minimum linewidth / wire spacing must meet higher requirements.

Fingerprint Identification FPC

Fingerprint Module Overview

Fingerprint module is the core component of fingerprint lock, which is installed on devices such as fingerprint access control, hard disk, téléphone mobile, etc.. It is used to complete fingerprint collection and fingerprint identification. Fingerprint module is mainly composed of fingerprint acquisition module, fingerprint identification module, and extended function module (such as lock driving module). FPC fingerprint module is an important part of it.

Classification of FPCB Fingerprint Module

The FPCB fingerprint module can be divided into three parts according to its fingerprint identification methods:

1. Optical Fingerprint Module
   • Can identify fingerprint by refraction and reflection of light.
2. Capacitance Fingerprint Module
   • Collects the fingerprint by the value change of capacitance.
3. RF Fingerprint Module (Scratch Fingerprint Module)
   • Uses a small amount of RF signal to detect the texture.
