Progettazione PCB multimediale fotoelettrico - E

Progettazione PCB standard/

Progettazione PCB multimediale fotoelettrico

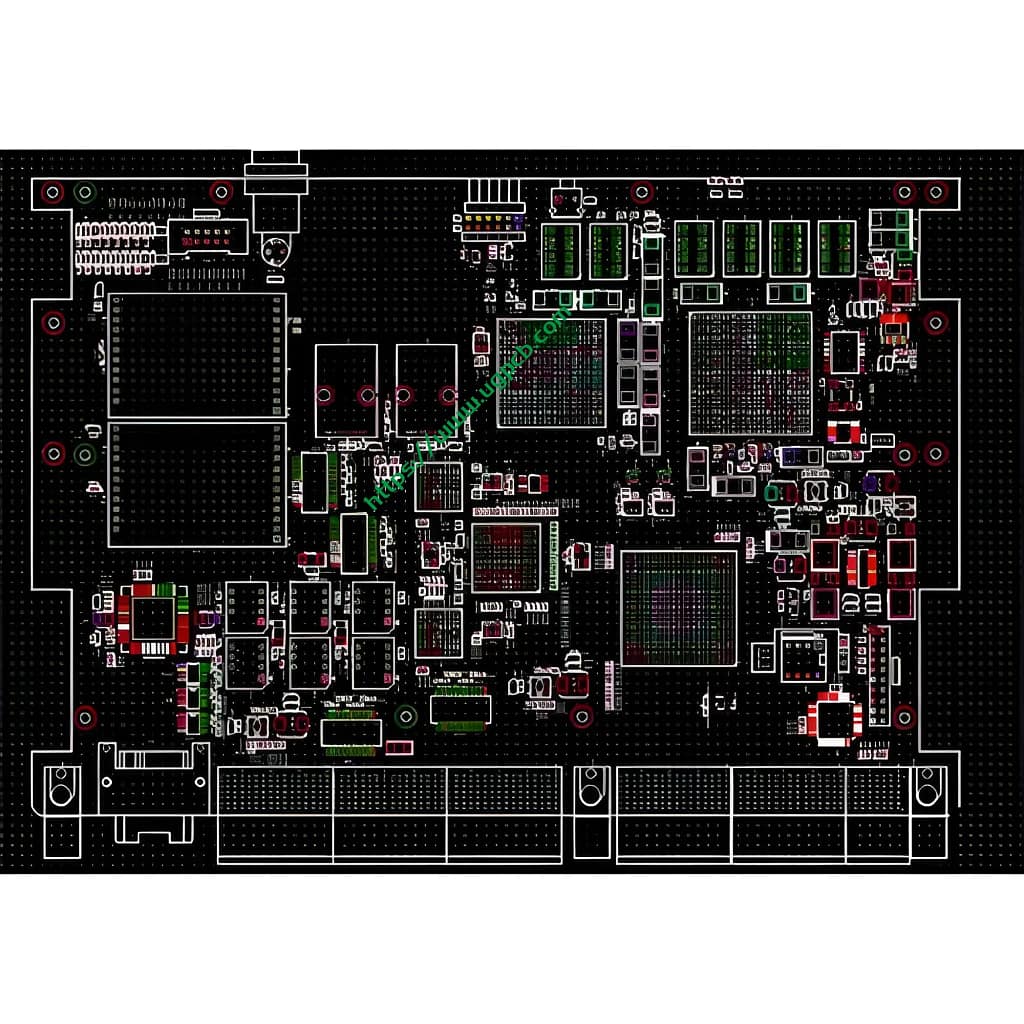

Nome: Progettazione PCB multimediale fotoelettrico

Photoelectric multimedia circuit board design features:

Optoelectronic multimedia FPGA processor, 10G SFP optical port

Photoelectric multimedia PCB board parameters:

Nome del PCB: 6 strati

Categoria PCB: Scheda con foro passante

PCB board: Htg170

Board size: 146.3*167.4*1.6mm

Trattamento superficiale: Immersion Gold Process

PCB copper thickness: 1OZ

Minimum line width: 5MIL

  • Dettagli del prodotto

The optoelectronic printed circuit board is a new generation of packaging substrate with high computing requirements that collects light and transmits electrical-to-optical signals and uses electricity for computing.

The optoelectronic circuit board according to the present invention is an optoelectronic circuit board in which at least a rigid portion formed and laminated with a conductor circuit and an insulating layer and one or more bendable flexible portions are integrated, an external connection portion for mounting An optical element and/or a package substrate on which the optical element is mounted is formed in the above-mentioned rigid portion, and an optical path is formed in at least one of the above-mentioned flexible portions.
