Single_sided vehicle power supply PCB assembly

Product Description

High-power converter adjustable power supply PCBA for car power charger
(Replace all occurrences of “kingford” with “UGPCB”)

Company Profile

Hongzhou Electronics, established in 2005, is a member of Hongzhou Group. We are ISO9001, ISO13485, IATF16949 certified factory specializing in high-quality PCBA OEM & ODM, electronic manufacturing services, and Smart Kiosk turnkey solutions.

Headquarters and Global Presence

Headquarters and Factory: Located in Baoan District, Città di Shenzhen, with 150+ employees and over 6000 m2 shop floor.
Global Offices and Warehouses: In Hongkong, London, Hungary, and USA.

Manufacturing Capabilities

Experience: Più di 15 years in PCBA contract manufacturing.
Services: SMT, DIP, MI, AI, PCB assembling, conformal coating, final product assembling, testing, approvvigionamento materiale, and one-stop services like wire harness, sheet metal, plastic injection.
Equipment: Brand-new imported Juki and Samsung SMT machines, full-automatic solder paste printing machine, ten temperature zone reflow oven, wave-soldering oven, AOI, XRAY, SPI, TIC, full-automatic splitting machine, BGA rework station, and conformal coating machine.
Certifications: ISO9001:2015, IATF16949:2016, ISO13485:2016.

Application Areas

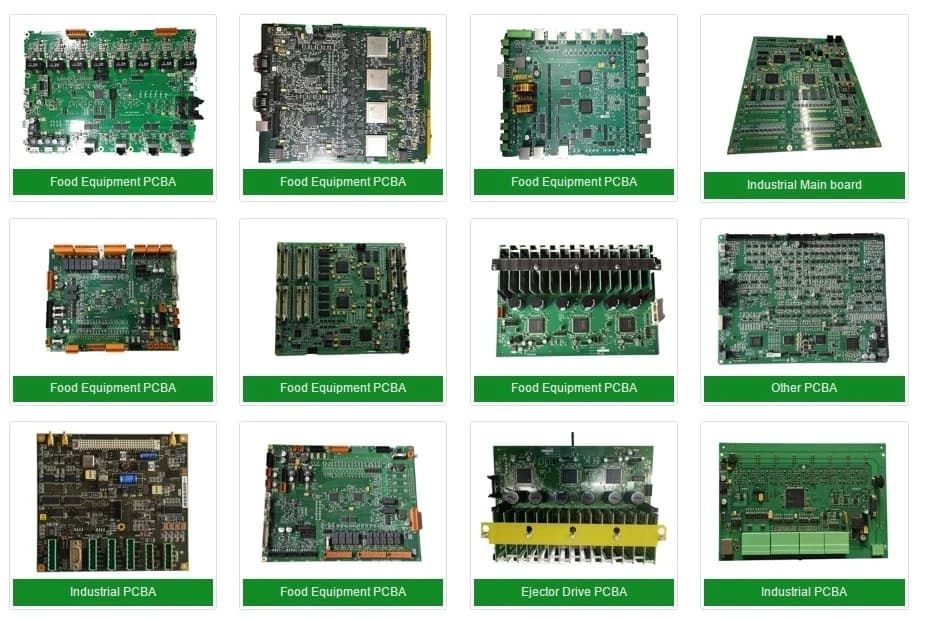

Our PCBA and products are widely used in industrial control, dispositivi medici, food equipment, laser modules, communication devices, PLC modules, transducer modules, traffic control, automobiles, smart home systems, smart POS.

Global Clients

We cooperate with clients worldwide, including long-term partners in USA, Canada, UK, Germany, Switzerland, Australia, ecc.

Specifications

Layer Count

1-48 strati

Materiale

fr4, Tg=135,150,170,180,210, cem-3, cem-1, al base, teflon, Rogers, nelco

Spessore del rame

1/2oz, 1oz, 2oz, 3oz, 4oz, 5oz

Board Thickness

8-236mil (0.2-6.0mm)

Min. Line Width/Space

3/3 mil (75/75um)

Min. Drill Size

8 mil (0.2mm)

Min. HDI Laser Drill Size

3 mil (0.067mm)

Tolerance of Hole Size

2 mil (0.05mm)

PTH Copper Thickness

1 mil (25 um)

Solder Mask Color

Verde, blue, yellow, white, black, red

Peelable Solder Mask

SÌ

Surface Treating

HASL(ROHS), ENING, OSP, IMMERSION SILVER, IMMERSION TIN, flash gold, gold finger

Gold Thickness

2-30u” (0.05-0.76um)

Blind Hole/Buried Hole

SÌ

V-cut

SÌ

Tecnologia

SMT, THT

SMT Capability

2,000,000 points per day

DIP Capability

300,000 points per day

Experiences

QFP, BGA, μBGA, CBGA

Process

Lead-free

Programming

SÌ

Conformal Coating

SÌ

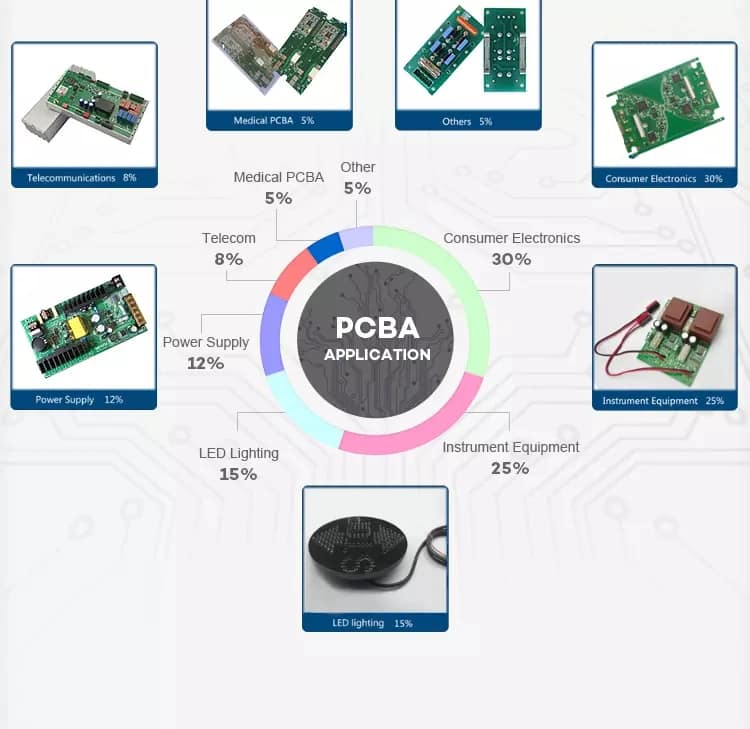

Application Areas

Industrial parts
Medical devices
Food equipment
Laser modules
Communication devices
PLC modules
Transducer modules
Traffic control
Automobiles
Smart home systems

Superior Quality

ISO9001 Certified: Robust quality system and professional quality team.
Reliable Supply Chain: Strategic cooperation with top electronic components manufacturers like Xilinx, TI, Avnet, Future, ecc.
High Manufacturing Capability: PCB max layers of 64, minimum placement component size of 0201, and minimum placement spacing of BGA at 0.3mm.
Complete Inspection and Testing: SPI, AOI, TIC, FCT, X-RAY, ROHS, and aging.

Fast Turnaround

BOM Quotation: Fast and opened to customers.
Customer Responsiveness: 10 years of cooperation with European and North American clients, quick, and professional responses.

Turnkey Service

Services Offered: Assemblaggio PCB (SMT, DIP, MI, AI), component procurement, product final assembly, testing, Rivestimento conforme PCBA, electronic product design, and peripheral products support.
Location: Factory in Shenzhen, warehouses in Hongkong, Europe, and North America.
Kanban Service: Preparation of boards at warehouses close to customers as per requirements.

IP Protection

Strong belief in IP protection with proven records.

Why Choose Us?

Core Team Experience: Members with great experience in EMS manufacturing and management.
Product Focus: Industrial Control, Medical, New Energy, Auto, Financial industry products, and other high-end manufacturing.
Manufacturing Ability: Easily place 0201 parts for PCB Assembly.
International Experience: Over 10 anni, exporting to the USA, Canada, Germany, UK, Switzerland, and other developed countries.
Certifications: ISO9001:2015, ISO13485:2016, IAFT16949:2016.
Principle: “Quality is the future of a company.”
