CNC PCB Drilling Machines

Foratura di precisione, Produzione intelligente: UGPCB Leads PCB Innovation with Advanced CNC Drilling Technology

Nell’odierna industria elettronica in rapida evoluzione, circuiti stampati (PCB) serve as the “Madre dei prodotti elettronici,” where their quality directly determines the performance and reliability of the entire electronic device. UGPCB, a leading PCB and PCBA manufacturer, remains at the forefront of technology. The implementation of HAN’S CNC PCB drilling machines has elevated our precision manufacturing capabilities to new heights.

The Critical Role of Drilling in PCB Fabrication

With over 200 steps in the Produzione di PCB processo, drilling is a crucial stage that directly impacts the quality of interlayer conductor interconnections and component mounting channels. Industry statistics indicate that equipment-related issues account for up to 30% of downtime, while scientific equipment selection and standardized maintenance can reduce this figure to below 10%.

Advanced Equipment: The Foundation of Precision Drilling Technology

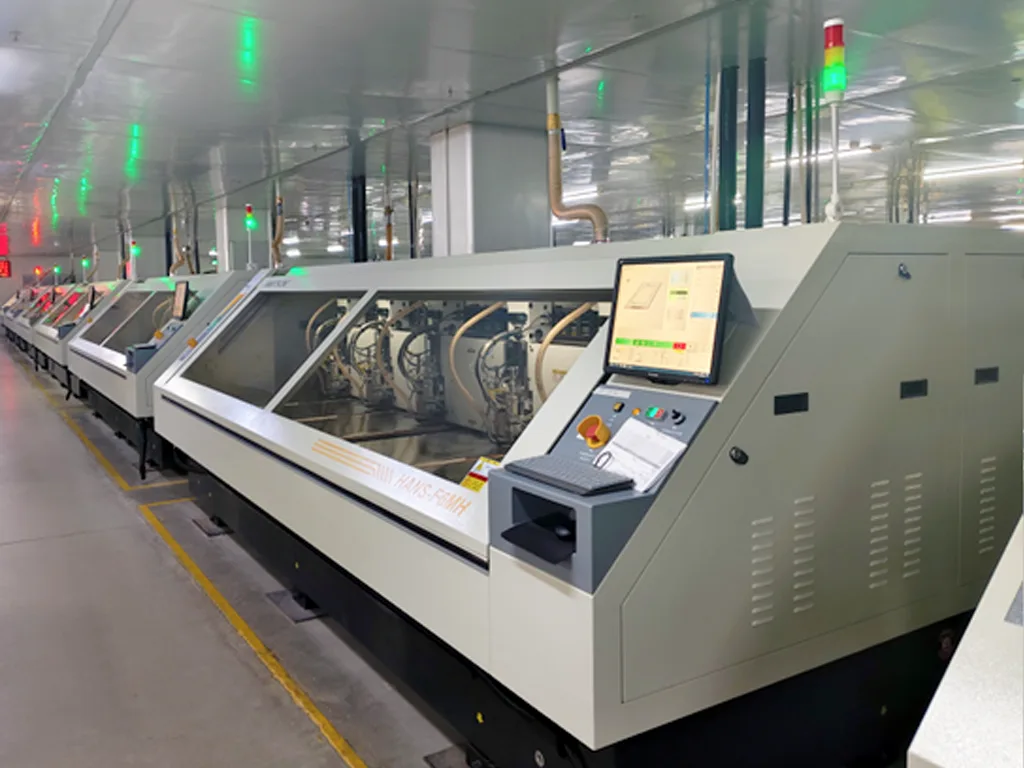

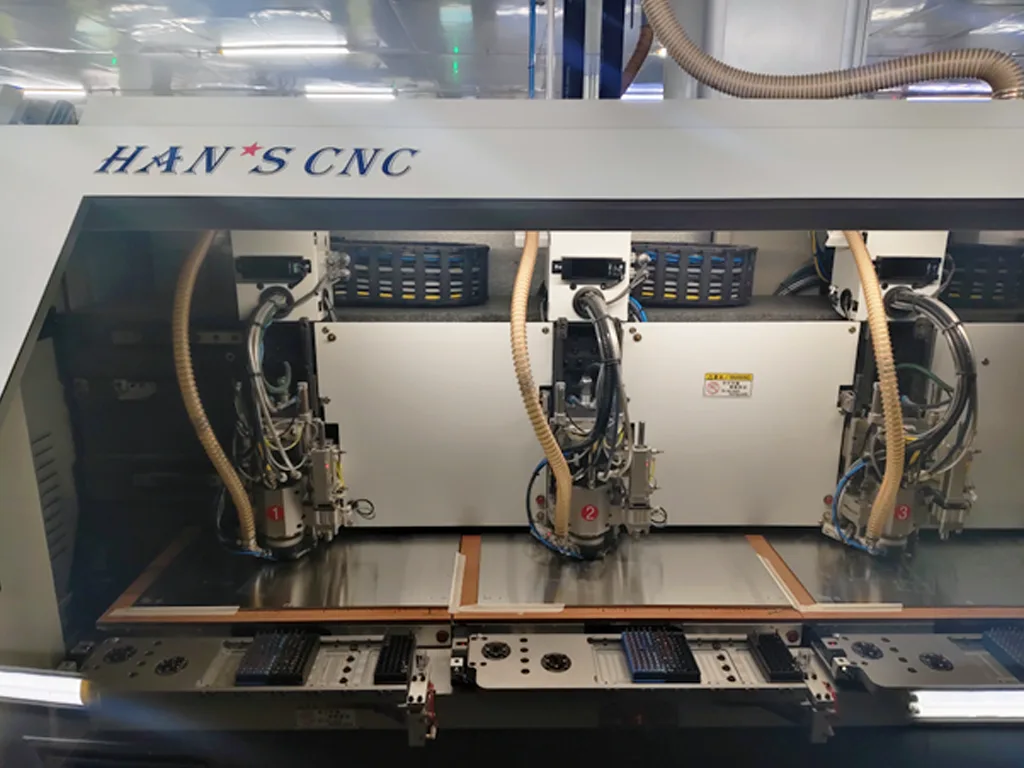

UGPCB’s investment in HAN’S CNC PCB drilling machines represents cutting-edge industry technology, providing a solid foundation for producing high-precision, high-reliability PCBs.

Vantaggi tecnici fondamentali:

• Ultra-High Precision: Utilizing fully digital dynamic simulation analysis, we’ve designed a high-rigidity mechanical structure paired with a high-performance control system and selected high-precision components. This achieves a positioning accuracy of ±0.005mm, repeatability of ±0.0025mm, and a drilling accuracy of ±0.018mm.
• High Speed and Efficiency: Maximum X and Y-axis travel speeds reach 80m/min, with a Z-axis speed of 50m/min. Combined with a spindle speed range of 160K-250Krpm, this significantly enhances drilling processing efficiency.
• Intelligent Stability: The equipment features a contact-type broken tool detection system for real-time monitoring and automatic tool changing functionality supporting magazine capacities of 220 O 300 utensili, ensuring stability during continuous operation.

Professional Applications: Precision Machining for Diverse Needs

Leveraging our advanced CNC drilling equipment, UGPCB meets the demanding requirements of various complex PCB manufacturing scenarios.

Adapting to Diverse Materials and Designs

Our drilling technology handles various substrates, from standard FR-4 to alta frequenza, ad alta velocità, and high-Tg materials. The drill hole diameter range covers Φ0.1mm to 6.35mm, accommodating through-holes, blind vias, and buried vias.

For blind via processing, we integrate a contact trigger system with Z-axis closed-loop control, achieving drilling depth accuracy control within ±25μm.

Support for Large-Format Processing

Our equipment’s maximum working area of 2000×650mm(2-layer PCBS) enables the processing of large boards and panels, facilitating Produzione di PCB for industrial equipment, elettronica automobilistica, e altri settori.

Process Optimization: Technical Expertise Beyond Equipment

A ugpcb, we understand that exceptional PCB manufacturing relies not only on advanced equipment but also on optimizing process parameters and stringent quality management.

Scientific Optimization of Drilling Parameters

Our engineering team optimizes spindle speed, feed rate, and retraction strategy through precise calculations and extensive testing based on substrate type, spessore, and hole size.

For FR-4 materials with hole diameters between 0.3-1.0mm, spindle speed is typically set between 15,000-30,000 RPM, with feed rates optimized between 5-20 mm/min to balance hole wall quality and processing efficiency.

Advanced Quality Inspection Systems

We employ “2D+3D Hybrid Inspection” AOI equipment capable of detecting ±5μm line width deviations and solder mask bubbles with depths >10μm, achieving a defect detection rate exceeding 99.5%, far surpassing traditional 2D systems.

Empowering PCBA: From Circuit Boards to Complete Solutions

UGPCB’s expertise extends beyond PCB fabrication to the entire PCB processo, offering customers integrated solutions.

Precise Interconnection

High-precision drilling ensures proper alignment between layers in schede multistrato, laying a reliable foundation for subsequent SMT assembly and component insertion, thereby reducing defect rates in the PCBA assembly process.

Supporto tecnico

We provide customers with DFM analysis, recommending optimal Progettazione di circuiti stampati and drilling strategies tailored to different product characteristics, such as high-speed digital circuits, RF circuits, and power electronics.

Quality Traceability

We have established a comprehensive drilling quality feedback mechanism, conducting regular sampling inspections on drilled PCBs for metrics like hole size, hole wall roughness, and hole position accuracy. We utilize Statistical Process Control (Spc) methods to monitor and analyze the drilling process, enabling continuous improvement in drilling quality.

Industry Outlook: Leading Technological Development Trends

Addressing the growing demand for high-density, high-performance PCBs, UGPCB continuously pursues technological upgrades and innovation.

We actively monitor emerging technologies like diamond drill bits, which offer extreme hardness and wear resistance compared to traditional tungsten-cobalt carbide bits, achieving a service life of 10,000-20,000 holes per bit and significantly enhancing mass production efficiency.

Contemporaneamente, we are advancing intelligent manufacturing by installing online monitoring systems for the drilling process, such as force sensors and acoustic emission sensors. These systems collect real-time data on drilling forces and acoustic signals during operation. Analyzing the trends in this data allows for the timely identification of abnormalities like drill bit wear or chip clogging.

Conclusione

A ugpcb, we firmly believe that exceptional PCB manufacturing begins with every precise drill hole. From simple single-sided boards to complex Schede HDI E Substrati dei circuiti integrati, our drilling technology ensures the reliability and consistent performance of our customers’ prodotti.

Visita il UGPCB official website or contact our technical team to learn more about our PCB manufacturing capabilities. Let’s pioneer your path to electronic innovation together with our precision drilling technology!
