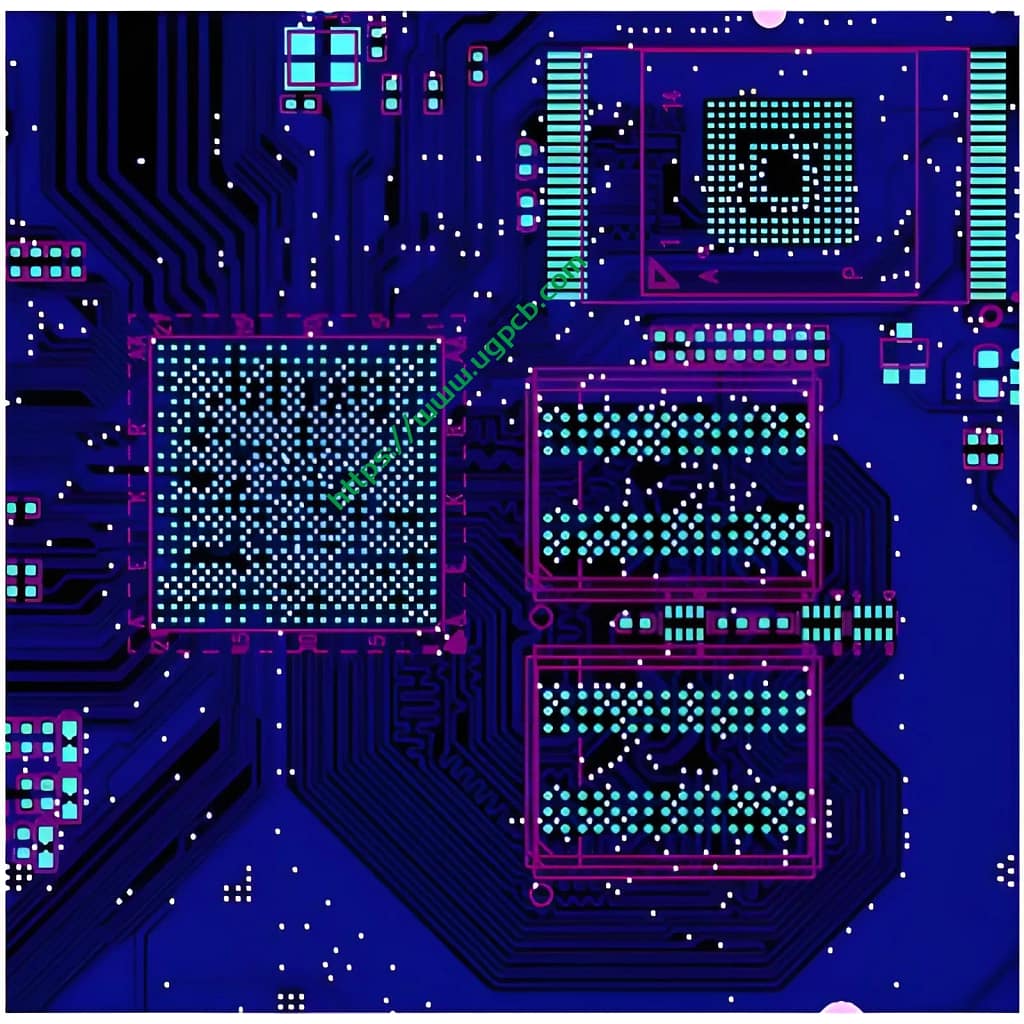

8-layer 2+N+2 HDI PCBA design

名前: 8-layer second-order HDI PCBA design

Plate: TG170 /TG180, F4BM, FR4, FR1-4, 等.

Designable layers: 1-32 レイヤー

Minimum line width and line spacing: 3ミル

Minimum laser aperture: 4ミル

Minimum mechanical aperture: 8ミル

Copper foil thickness: 18-175цm (標準: 18цm35цm70цm)

Peel strength: 1.25N/mm

Minimum punching hole diameter: single side: 0.9mm/35mil

Minimum hole diameter: 0.25mm/10mil

Aperture tolerance: ≤φ0.8mm±0.05mm

Hole tolerance: ±0.05mm

Hole wall copper thickness: double-sided/multi-layer: ≥2um/0.8mil

Hole resistance: double-sided/multi-layer: ≤300цΩ

最小線幅: 0.127mm/5mil

Minimum pitch: 0.127mm/5mil

Screen printing color: 黒, 白, 赤, 緑, 等.

表面処理: lead/lead-free tin spray, 同意する, silver, OSP

サービス: Provide OEM service

Certificate: ISO9001.ROSH.UL
