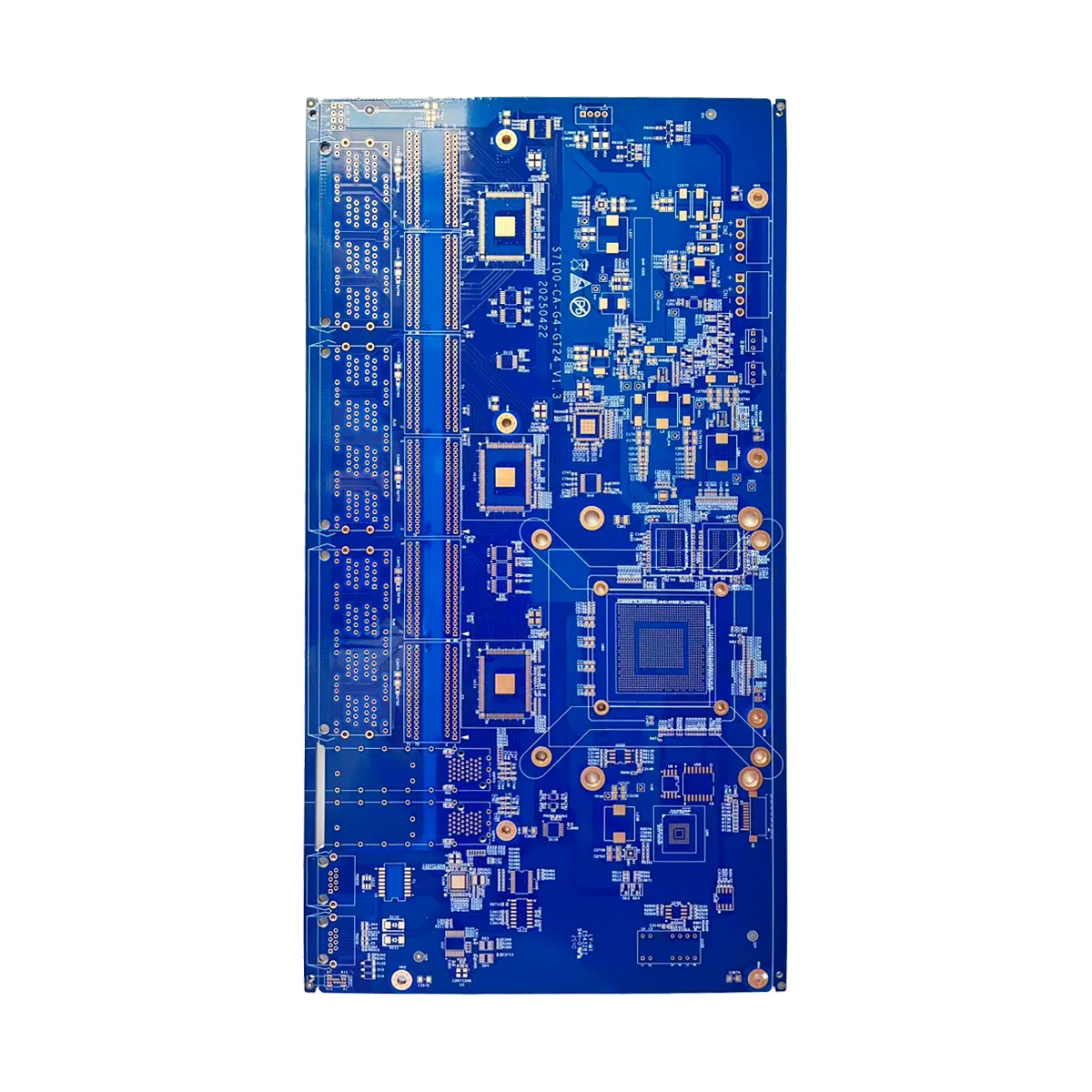

Blue solder mask PCB

Overview of the Blue Solder Mask PCB

The Blue Solder Mask PCB is a high-density, multilayer printed circuit board (プリント基板) designed for digital applications requiring mass production. This PCB is ideal for complex electronic systems that need to manage high power and signal integrity.

What is a Blue Solder Mask PCB?

A Blue Solder Mask PCB is a printed circuit board (プリント基板) with a blue solder mask layer, which is used to protect the copper traces from oxidation and short circuits. The blue color makes it easy to distinguish different components and layers during assembly and inspection.

Design Requirements

The design requirements for a Blue Solder Mask PCB are stringent to ensure its performance and reliability:

• 材料: FR4, chosen for its excellent electrical and thermal properties.
• レイヤー数: 6 layers to accommodate complex and dense circuit designs.
• 色: Blue/White for easy identification and aesthetic appeal.
• 仕上がり厚さ: 1.2mm to provide structural integrity and durability.
• 銅の厚さ: 1/0.5/0.5/0.5/0.5/1 OZ to ensure adequate conductivity and heat dissipation.
• 表面処理: Immersion Gold to enhance solderability and corrosion resistance.
• Minimum Trace and Space: 4ミル(0.1mm) to support fine circuit patterns.

How Does It Work?

The Blue Solder Mask PCB works by providing a platform for various electronic components to be interconnected through conductive pathways. These pathways, or traces, are made of copper and are etched onto the board. The blue solder mask layer protects the copper traces from environmental factors, while the immersion gold surface treatment ensures that these traces remain conductive and resistant to corrosion.

アプリケーション

The primary application of the Blue Solder Mask PCB is in digital electronics where it manages and regulates the flow of electrical signals. This includes:

• Digital signal processors
• マイクロコントローラー
• Memory modules
• Data communication devices

分類

Based on its features and applications, the Blue Solder Mask PCB can be classified as a high-speed digital PCB designed for mass production. This classification highlights its capability to handle high-frequency signals and provide stable electrical connections.

材料構成

The core material used in the Blue Solder Mask PCB is FR4, a high-performance composite material known for its excellent mechanical, thermal, and electrical properties. This material ensures that the PCB can withstand the demands of digital applications.

性能特性

The performance characteristics of the Blue Solder Mask PCB include:

• High signal integrity
• Low signal loss
• Superior thermal management
• Robust mechanical strength
• Long-term stability

Structural Details

The structural details of the Blue Solder Mask PCB are as follows:

• レイヤー数: 6 レイヤー
• 仕上がり厚さ: 1.2mm
• 銅の厚さ: 1/0.5/0.5/0.5/0.5/1 オズ
• 表面処理: イマージョンゴールド
• Minimum Trace and Space: 4ミル(0.1mm)

特徴と利点

The key features and benefits of the Blue Solder Mask PCB include:

• High density interconnectivity
• Excellent signal integrity
• Robust mechanical construction
• Reliable long-term performance
• Aesthetic color options (ブルー/ホワイト)

製造工程

The production process of the Blue Solder Mask PCB involves several steps including:

1. Material Selection: Choosing high-quality FR4 material.
2. Layer Stacking: Arranging the 6 layers with precision.
3. エッチング: Removing excess copper to form the desired trace patterns.
4. ソルダーマスクの塗布: Applying a blue solder mask layer to protect the copper traces.
5. メッキ: Applying immersion gold surface treatment.
6. Assembly: Incorporating PTHs and vias for layer interconnections.
7. テスト: Ensuring the PCB meets all performance specifications.

Use Cases

The Blue Solder Mask PCB is used in various scenarios such as:

• Digital consumer electronics
• Industrial control systems
• Telecommunication equipment
• Automotive electronics
