Dell Computer Connect PCB Board
材料
The Dell Computer Connect PCB Board is manufactured using high-quality FR-4 material. FR-4, also known as glass-epoxy laminate, is a flame-retardant grade of epoxy resin combined with woven glass fiber cloth. This material is chosen for its excellent electrical properties, 機械的強度, 耐熱性, and flame retardancy, making it ideal for PCB applications.
パフォーマンス
With a finished thickness of 1.6mm, the Dell Computer Connect PCB Board offers robust structural integrity while maintaining flexibility in design. The 6-layer construction allows for complex circuitry and high component density, supporting advanced functionality in Dell computers. The copper thickness of 1OZ ensures good conductivity and current carrying capacity, essential for reliable performance.
構造
The PCB board features a green/white solder mask, which not only provides a protective layer against environmental factors but also enhances visual inspection and component placement accuracy. The immersion gold surface treatment offers superior corrosion resistance and enhances the electrical connection between components and the PCB, 長期信頼性の確保.
特殊な特性

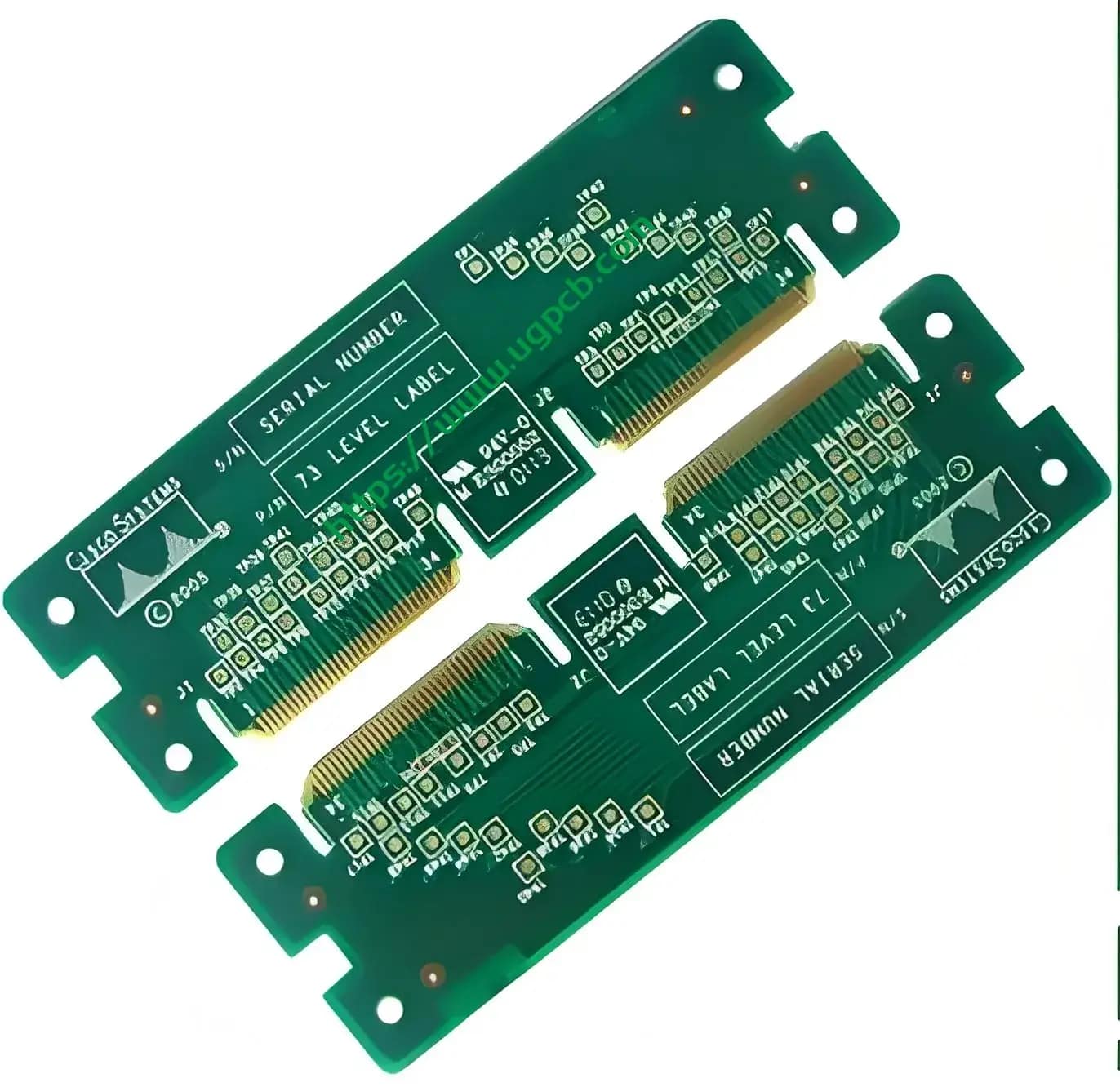

One of the standout features of the Dell Computer Connect PCB Board is its golden finger process. Golden fingers are the plated edge connectors on the PCB that facilitate the connection between the board and other components or circuits. This special process ensures a secure, low-resistance connection, crucial for high-speed data transfer and signal integrity.
製造工程
The production of the Dell Computer Connect PCB Board involves several precision steps:
- Design and Layout: The PCB design is meticulously planned and laid out using advanced CAD software.
- 材料の準備: High-quality FR-4 material is cut to size and prepared for processing.
- 回路パターニング: The copper circuitry is etched onto the FR-4 base material using photolithography techniques.
- Layer Lamination: Multiple layers are aligned and bonded together to form the final 6-layer structure.
- 穴あけ加工とメッキ加工: Holes are drilled for component placement and interconnection, followed by plating to enhance conductivity.
- 表面処理: The immersion gold process is applied to the PCB surface.
- Solder Mask and Legend Printing: A protective solder mask is applied, and component identifications are printed.
- 最終組み立てとテスト: The PCB is assembled with components and thoroughly tested to ensure functionality and reliability.
アプリケーションシナリオ

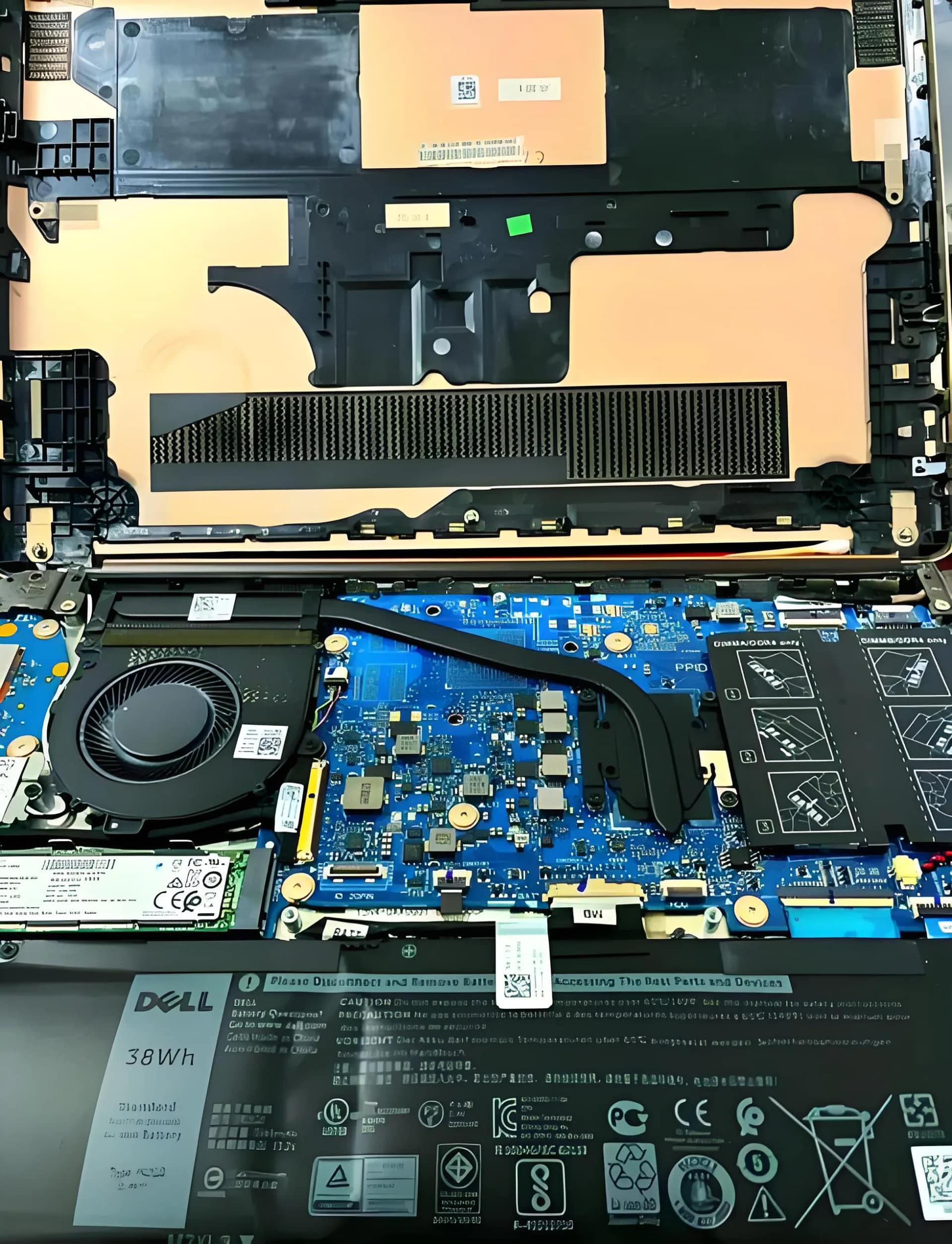

The Dell Computer Connect PCB Board is specifically designed for use in Dell computers, where it serves as a critical component in connecting various internal systems and devices. Its advanced features make it suitable for a wide range of Dell computer models, from desktops to laptops, enabling seamless communication between hardware components and ensuring optimal performance. Whether used in high-performance gaming systems, business workstations, or everyday computing tasks, the Dell Computer Connect PCB Board plays a vital role in delivering reliable and efficient computing experiences.
