Embedded motherboard PCB design - そして

ハイパワー PCB 設計/

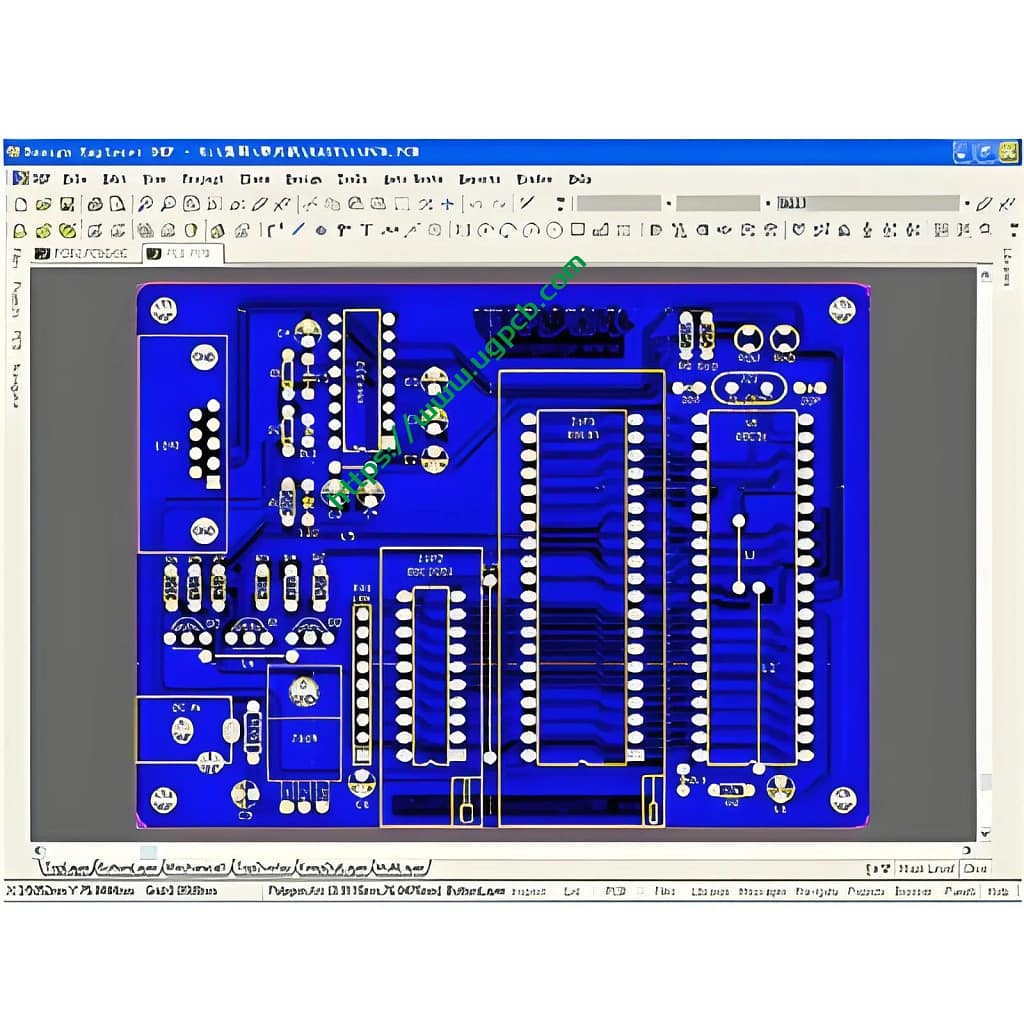

Embedded motherboard PCB design

名前: Embedded motherboard PCB design

Designable layers: 1-32 レイヤー

Minimum line width and line spacing: 3ミル

Minimum laser aperture: 4ミル

Minimum mechanical aperture: 8ミル

Copper foil thickness: 18-175цm (標準: 18цm35цm70цm)

Peel strength: 1.25N/mm

Minimum punching hole diameter: single side: 0.9mm/35mil

Minimum hole diameter: 0.25mm/10mil

Aperture tolerance: ≤φ0.8mm±0.05mm

Hole tolerance: ±0.05mm

  • 製品詳細

Computing Element: The Embedded Motherboard

The computing element is the embedded motherboard, which is the feature-rich small form factor that is the heart of the embedded system.

Connectivity and Functionality

Professional I/O such as video capture, communication ports, digital and analog signals are connected to the computing center for the system to work.

Understanding the Embedded Motherboard

The embedded motherboard is generally understood as the CPU board embedded in the device for control and data processing, つまり, の “brainof the device.

Specific Requirements for Embedded Motherboards

Embedded into the device, of course, there will be stricter requirements on the volume and power consumption of the motherboard (the heat dissipation problem of the UGPCB).
