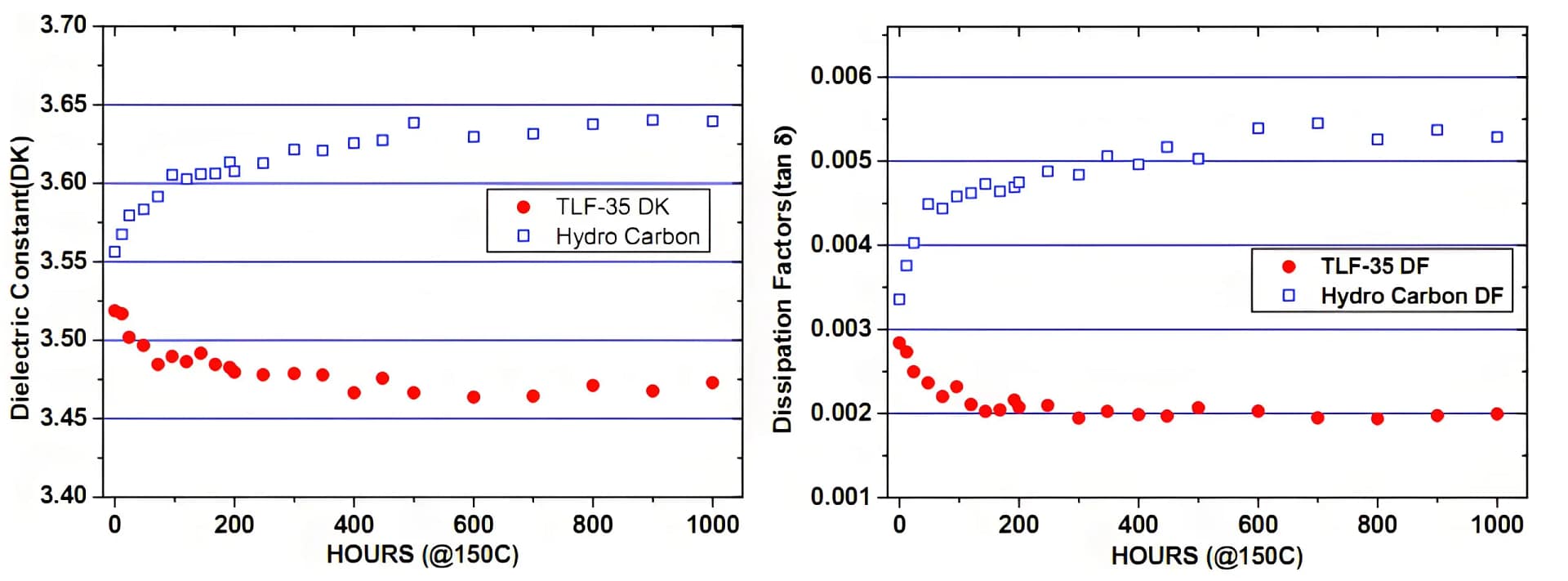

Taconic RF-35 Dielectric Constant Variation Chart.
Taconic rf-35 benefits:Low cost, Excellent peel strength, Exceptionally low DF, Low moisture absorption, Very high thermal reliability
Taconic rf-35 applications : Filter, 연결기, splitter, combiner and mixer, 안테나, High power Amplifier, TMA, TMB, LNA, Repeater, Passive components, Medical scanners
rf35 PCB
1. RF-35 is the organic ceramic laminate material in TACONIC product ORCER.
2. 유리섬유포를 기반으로 한 강화유리 소재입니다., which is a combination of TACONIC’s ceramic filling technology and glass fiber coated teflon PCB technology.
3. RF-35 is the best choice for low-cost, 대용량 상업용 전자레인지 및 무선 주파수 애플리케이션.
4. The glass transition temperature of RF-35. Over 315 degree Celsius.

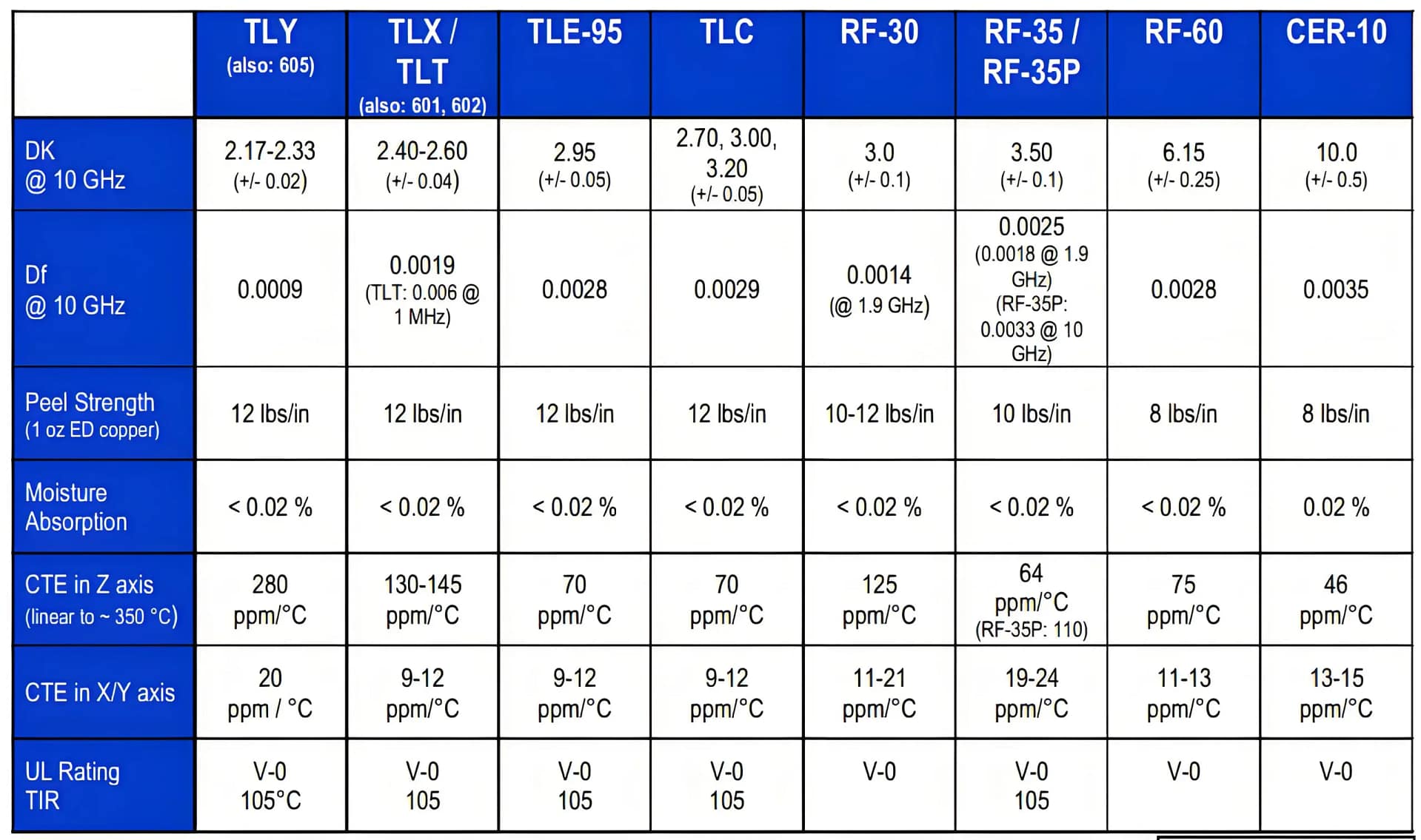

Taconic RF-35 material properties table.
5. RF-35’s ultra-low water absorption and low loss factor minimize the phase shift in the frequency range.
6. The dimensional stability of RF-35 is due to the use of glass fiber cloth in its design and development.
7. RF-35 teflon PCB materials, generally single-sided or double-sided 1/20Z, 10Z and 20Z thick electrolyte copper foil. Different sizes of plates can be selected according to requirements.
8. Taconic RF-35 1/20Z and 10Z copper foil boards, even if standard epoxy materials are used, have excellent peel strength and can be reworked at any time.
