10-layer communication switch PCB/PCBA design - UG

Multilayer PCB Design/

10-layer communication switch PCB/PCBA design

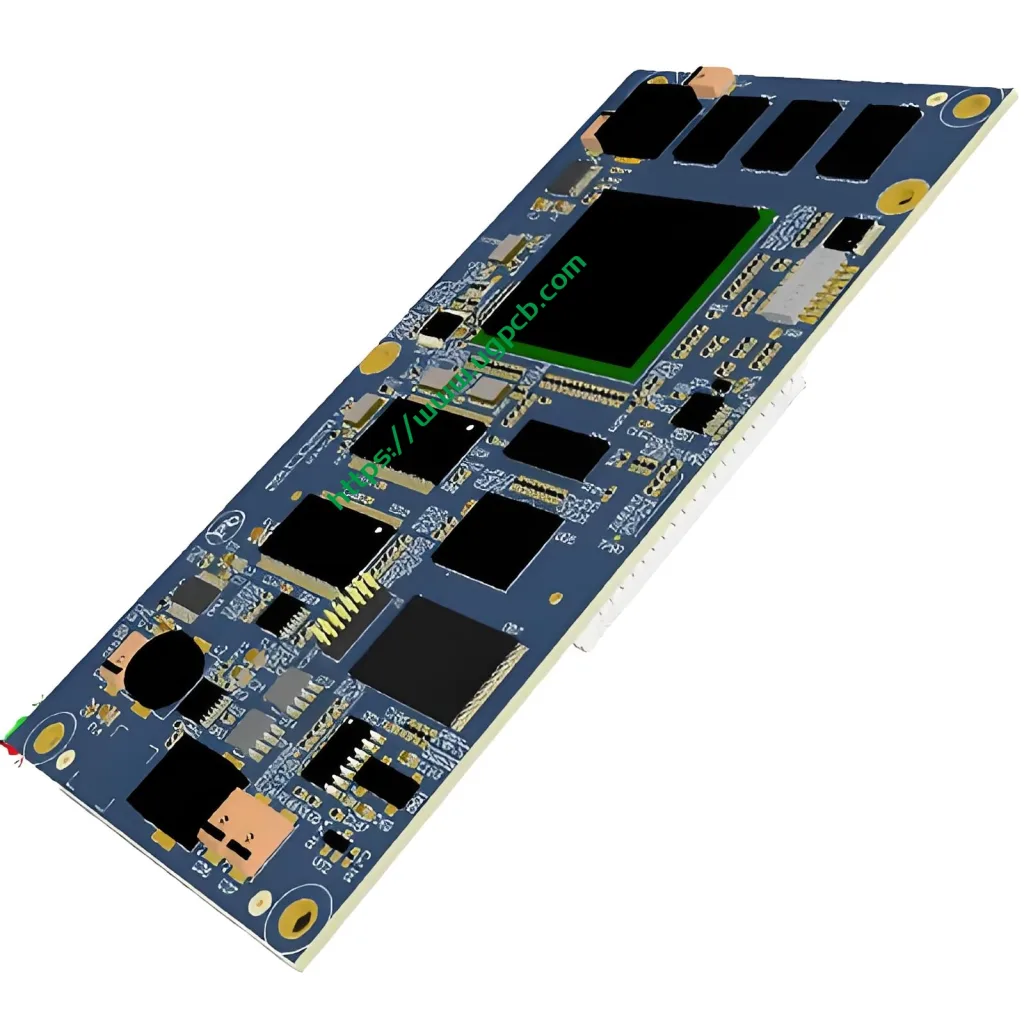

Name: 10-layer communication switch PCB/PCBA design

Sheet: IT180, F4BM, FR4, FR1-4, etc.

Designable layers: 1-32 layers

Minimum line width and line spacing: 3mil

Minimum laser aperture: 4mil

Minimum mechanical aperture: 8mil

Copper foil thickness: 18-175цm (standard: 18цm35цm70цm)

Peel strength: 1.25N/mm

Minimum punching hole diameter: single side: 0.9mm/35mil

Minimum hole diameter: 0.25mm/10mil

Aperture tolerance: ≤φ0.8mm±0.05mm

  • Product Details

What is a Communication Switch?

What is a communication switch?

Switched Communication Network

A switched communication network transfers data from a source to a destination through a series of network nodes.

Adaptive Communication Switch

Purpose and Functionality

Adaptive switches allow users with physical difficulties and special needs to activate assistive technology devices in their environment.

Importance of the Right Switch

Deceptively simple buttons, the right switch will open up access to a world of communications equipment, environmental controls, computer software, and mobile devices.
