UGPCB Company Specialized in RF PCB Manufacturing
UGPCB company specialized with the RF PCB manufacturing for more than 17 years in China. We know how much the proper RF material would affect the performance of the board. The parameters such as RF microwave energy levels, operating frequency, operating temperature range, current, and voltage are of great importance when choosing the suitable material for the high-frequency PCB fabricating. Getting familiar with those RF PCB materials is one of our jobs. Check below material listing for reference. We have enough of them in stock to ensure fast delivery.
Quality Assurance and Customer Satisfaction
The confidence towards our product quality comes from our experienced engineers and production team. They cooperate closely with our QA department to provide a qualified product. We didn’t expect to achieve a big thumbs-up from our customers, but more and more repeat orders speak to their satisfaction. Quality is the core value of our company. We know the importance of quality for long-term business. Thanks very much to our customers who have accompanied us in developing and improving our capacity and technical field for the past 17 years.
Rogers and Other Materials
RF/Microwave PCB material: Rogers RO4350B / RO3003 / RO4003 / RO3006 / RT/Duroid 5880 / RT5870, and etc. Arlon / Isola / Taconic / PTFE F4BM / Teflon material should also not be forgotten.
Hybrid PCB Materials
Hybrid PCB material (Mixed dielectric / Laminate): Rogers RO4350B + FR4 / RO4350B + IT180 / RO4003C + FR4 / RO3010 + FR4 / RO3003 + FR4 / RO3010 + FR4, etc.
Applications and Surface Finishing
RF Microwaves PCBs (printed circuit board) are used in various fields, such as Consumer Electronics / Military/Space / High power / Medical / Automotive / Industrial, etc. Surface finishing options include OSP / ENIG / HASL LF / Plated gold / flash gold / Immersion Tin / Immersion silver / Electrolytic gold.
Capacity and Material
Capacity: Golden finger / Heavy copper / Blind buried via / impedance control / filled with resin / carbon ink / backdrill / countersink / depth drilling / half plated hole / pressfit hole / peelable blue mask / peelable solderstop / thick copper / oversize. Material: Rogers RO4350B / RO3003 / RO4003 / RO3006 / RT/Duroid 5880 / RT5870, and Arlon / Isola / Taconic / PTFE F4BM / Teflon material, etc.
Layer and Dielectric Constant
Layer: 2L, 4L, 6L, 8L, 10L, 12L, 14L, 16L, 18L, 20L, 22L, 24L, 26L, 28L, 30L. Dielectric Constant (DK): 2.20 / 2.55 / 3.00 / 3.38 / 3.48 / 3.50 / 3.6 / 6.15 / 10.2.
Applications
Application: Consumer Electronics / Military/Space / Antenna & Communications System / High Power / Medical / Automotive / Industrial / Handheld device cellular / Wifi Antenna / Telematics and infotainment / Wifi/Computing/Radar/Power Amplifiers.

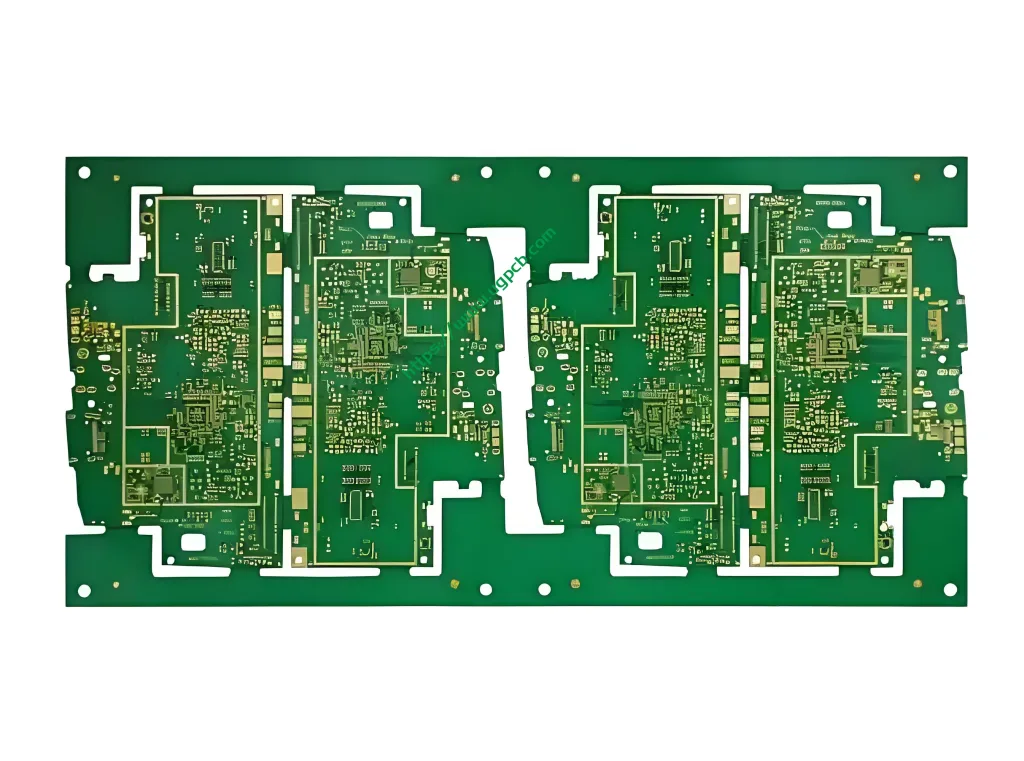

Introduction to Automotive Locator
Automotive locator, also known as automobile positioning tracker, is mainly a car anti-theft GPS positioning product. The functions of an automobile location tracker generally include SMS location, time location, network query, remote monitoring, and remote car lock.
Features of the Smallest Anti-theft GPS Tracker
The smallest anti-theft GPS positioning tracker in the world. Today’s Tong automobile positioning tracker is only the size of a matchbox. It is free of disassembly of internal lines. It can be positioned simply by connecting the positive and negative lines of the automobile battery. It can keep track of the three-month driving route of the vehicle in real-time. It can print a Chinese address report and automatically locate the vehicle in real-time. It can be timed, positioned, and tracked to monitor the car’s routine behavior. It doesn’t require professional technicians to install it. It’s easy and can be done by anyone in 5 minutes.
Real-Time Tracking and Location Query
If the target vehicle is stolen, stolen, robbed, or other emergencies occur, you can use a mobile phone or computer to query the location of the vehicle and track and locate the moving route of the vehicle in real-time, so that you can easily find your car and catch the thieves smoothly.
GPS Positioning Monitoring Framework
The GPS positioning monitoring framework is a three-tier networked comprehensive monitoring system composed of a GPS terminal, transmission network, and monitoring center. It provides functions such as anti-theft, anti-robbery, route monitoring, real-time wireless transmission of video images inside and outside the vehicle, rapid response to accidents, call command, etc., to solve the dynamic management problems of existing vehicles.
