PCB design of fast charging power bank - UG

High Power PCB Design/

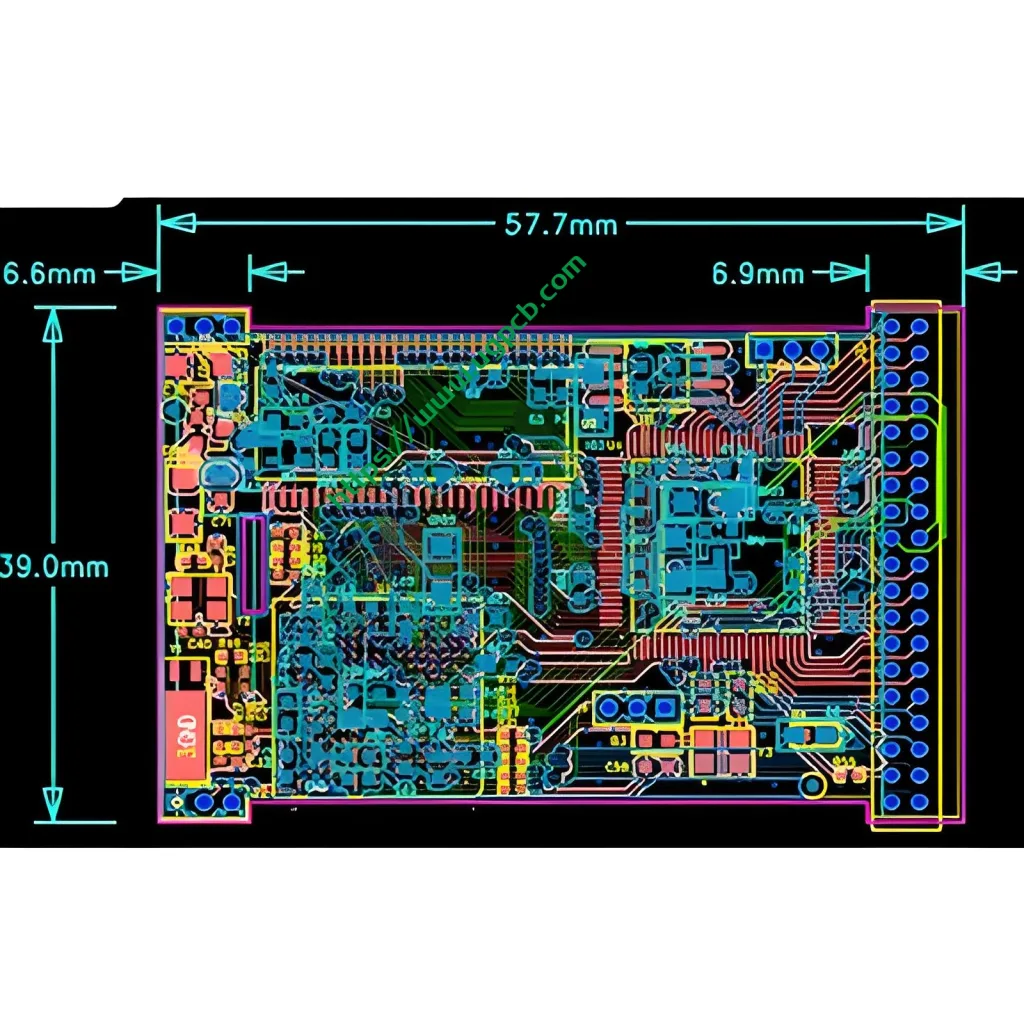

PCB design of fast charging power bank

Name: PCB design of fast charging power bank

Designable layers: 1-32 layers

Minimum line width and line spacing: 3mil

Minimum laser aperture: 4mil

Minimum mechanical aperture: 8mil

Copper foil thickness: 18-175цm (standard: 18цm35цm70цm)

Peel strength: 1.25N/mm

Minimum punching hole diameter: single side: 0.9mm/35mil

Minimum hole diameter: 0.25mm/10mil

Aperture tolerance: ≤φ0.8mm±0.05mm

Hole tolerance: ±0.05mm

  • Product Details

What is a Power Bank Circuit Board?

Basic Functionality

The charging and discharging module integrates the microUSB interface, and the mobile power circuit board can be used to charge other electronic products. The power bank circuit board integrates overcurrent protection, overvoltage protection, and undervoltage protection. The power bank has high precision.

Fast Charging

Fast Charging for Short

Fast charging refers to a charging method that can make the battery reach or close to a fully charged state within 1 to 2 hours.
