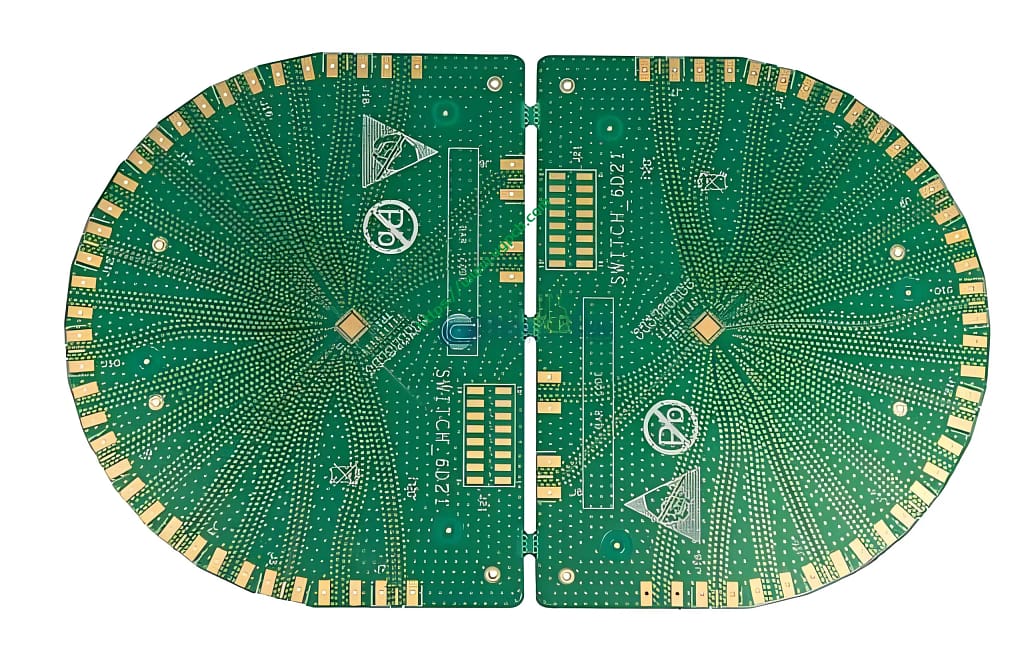

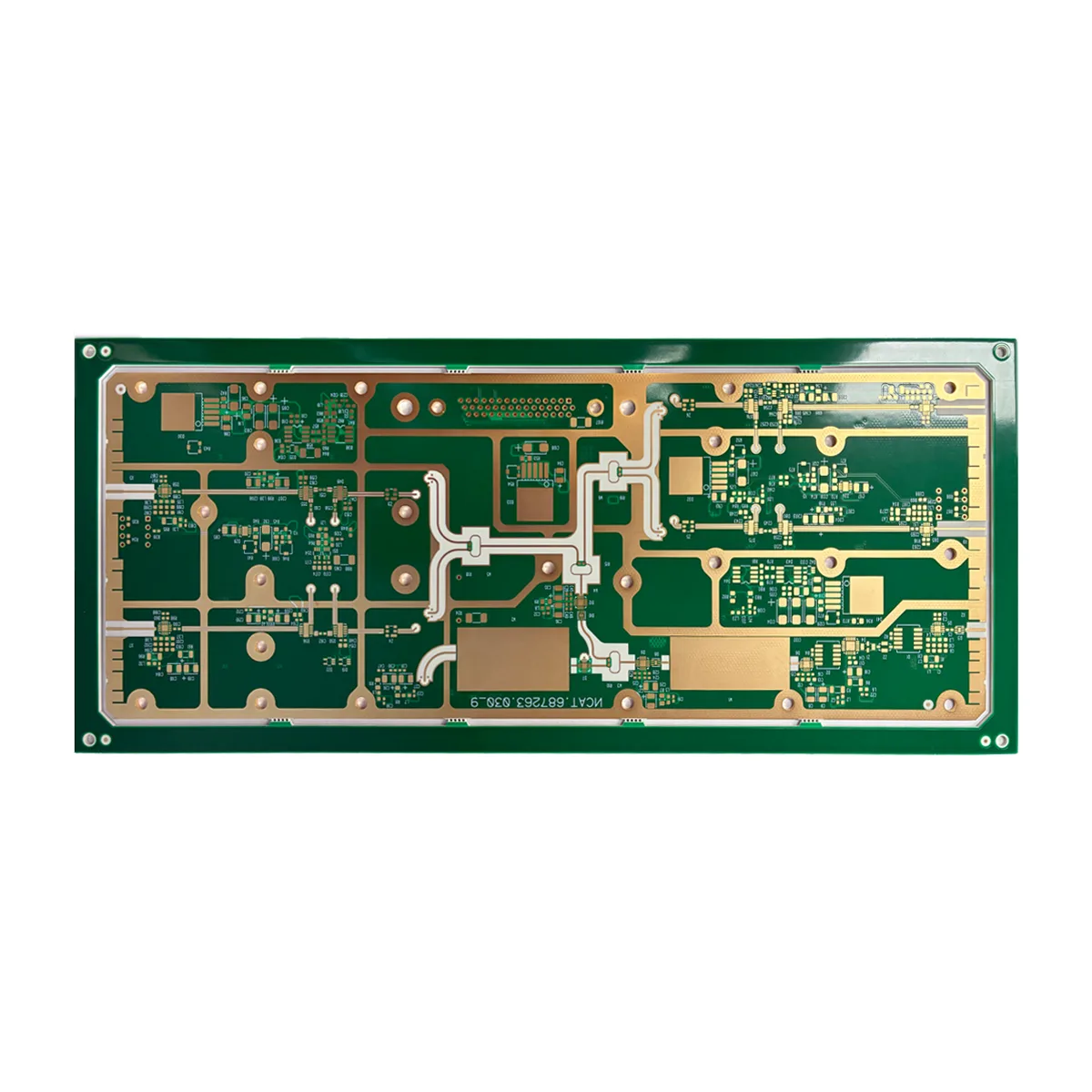

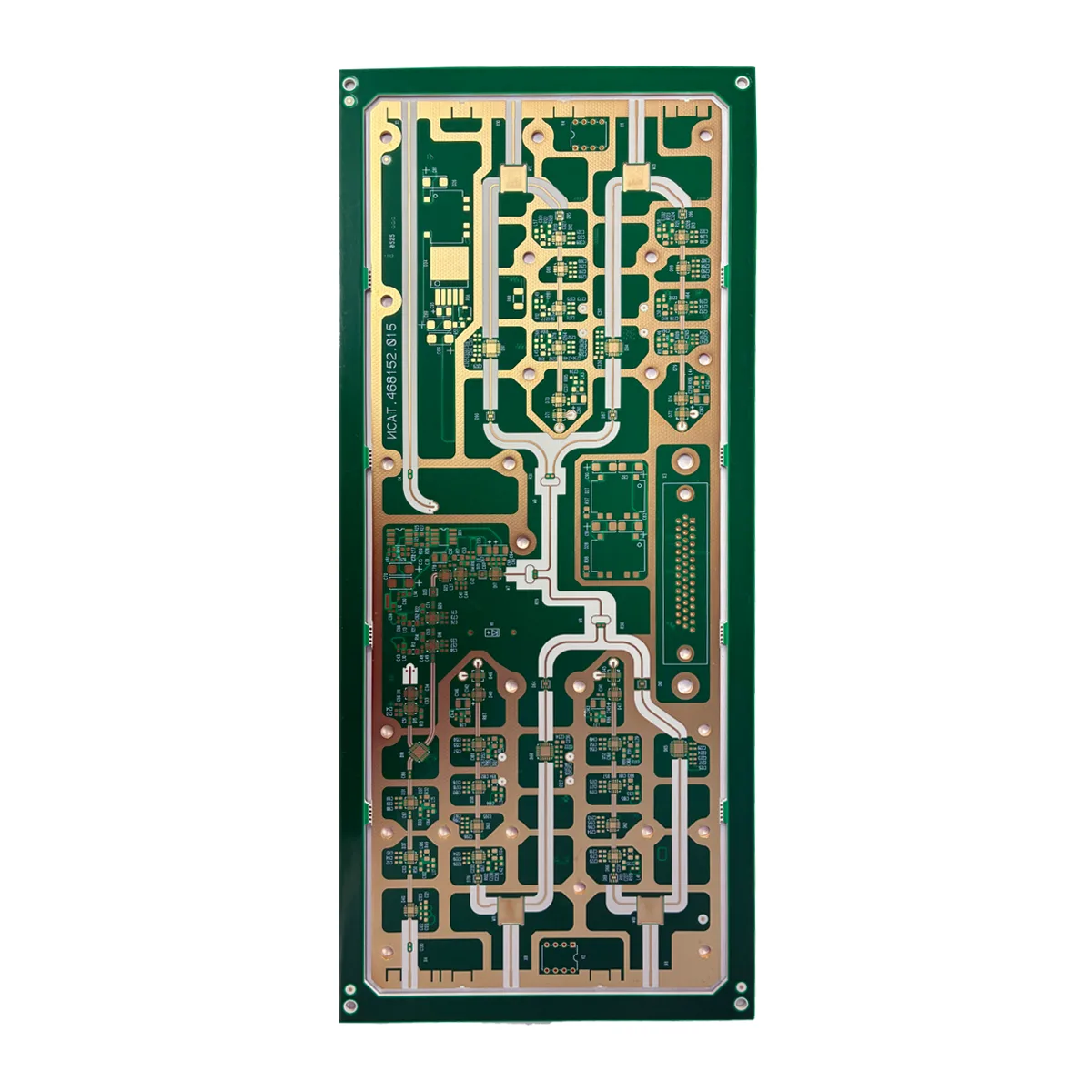

rogers ro4350B PCB Real Project display
Rogers RO4350B is a hydrocarbon/ceramic laminates with a dielectric constant of 3.48
Advantages:

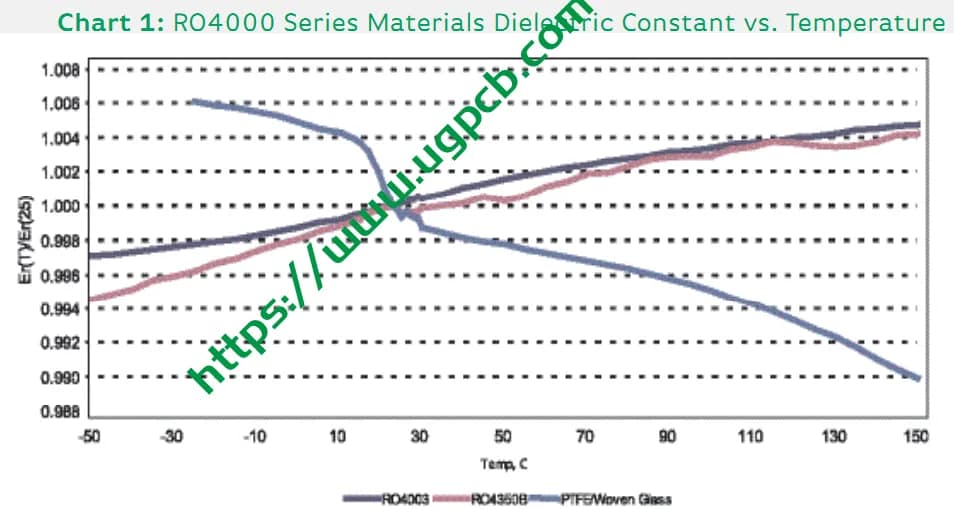

1. Low DK fluctuates with temperature
2. Low Z axis thermal expansion coefficient
3. Low internal expansion coefficient
4. Low DK tolerance
5. Stable electrical characteristics at different frequencies
6. Easy for mass production and multi-layer mixing of FR4, high cost performance
UGPCB company introduction
UGPCB company specialized with the RF PCB manufacturing for more than 17 years in China. We know how much the proper RF material would affect to the performance of the board .The parameters such as RF microwave energy levels,operating frequency, operating temperature range,current and voltage are of great importance when choosing the suitable material for the high frequency PCB fabricating. Getting familiar with those RF PCB material is one of our job,Check below material listing for refer. We have enough of them in stock to ensure the fast delivery.
RF/Microwave PCB material
Rogers RO4350B / RO3003 / RO4003 / RO3006 / RT/Duroid 5880 / RT5870 and etc.
Arlon / Isola / Taconic / PTFE F4BM / Teflon material also shouldn’t be forgotten.
Hybrid PCB material (Mixed dielectric / Laminate)
Rogers RO4350B + FR4 / RO4350B + IT180 / RO4003C + FR4 / RO3010 + FR4 / RO3003 + FR4 / RO3010 + FR4 etc.
Radio Frequency (RF) microwave PCB application
RF Microwaves PCBs (printed circuit board) are used in various of fields, Such as Consumer Electronics / Military/Space / High power / Medical / Automotive / Industrial ect.
Surface finishing: OSP / ENIG / HASL LF / Plated gold / flash gold / Immersion Tin / Immersion silver / Electrolytic gold
Capacity: Golden finger / Heavy copper / Blind buried via / impendance control / filled with resion / carbon ink / backdrill / countersink / depth drilling / half plated hole / pressfit hole / peelable blue mask / peelable solderstop / thick copper / oversize
Material: Rogers RO4350B / RO3003 / RO4003 / RO3006 / RT/Duroid 5880 / RT5870 and Arlon / Isola / Taconic / PTFE F4BM / Teflon material etc.
Layer: 2L 4L 6L 8L 10L 12L 14L 16L 18L 20L 22L 24L 26L 28L 30L
Dielectric Constant (DK): 2.20 / 2.55 / 3.00 / 3.38 / 3.48 / 3.50 / 3.6 / 6.15 / 10.2
Rogers RO4350B Application: Consumer Electronics / Military/Space / Antenna & Communications System / High Power / Medical / Automotive / Industrial / Handheld device cellular / Wifi Antenna / Telematics and infotainment / Wifi/Computing/Radar/Power Amplifiers
