Product Description
UGPCB specializes in electronics medical PCBA and PCB assembly with over 15 years of experience in PCBA contract manufacturing.
Capabilities
Factory Equipment
Our factory is equipped with multiple lines of SMT, assembly, and testing equipment, including brand-new Juki and Samsung SMT machines, full-automatic solder paste printing machines, ten-temperature zone reflow ovens, and wave-soldering ovens.
Quality Management
We have passed ISO9001:2015, IATF16949:2016, and ISO13485:2016 quality management system certifications, ensuring superior quality in our products and services.
Applications
Our PCBA and products are widely used in industrial control, dispositivos médicos, food equipment, laser modules, communication devices, PLC modules, transducer modules, traffic control, automobiles, smart home systems, and smart POS.
Superior Quality
Robust Quality System
As an ISO9001 certified company, we have a very robust quality system and professional quality team.
Reliable Supply Chain
We have established long-term strategic cooperation with top electronic component manufacturers worldwide, such as Xilinx, TI, Avnet, and Future.
High Manufacturing Capability
Our PCB can reach a max of 64 camadas, with minimum placement component size meeting 0201 and minimum placement spacing of BGA meeting 0.3mm. We offer complete inspection and testing for PCBA, including SPI, AOI, ICT, FCT, X-RAY, ROHS, and aging.
Fast Turnaround
Quick Quotation
We offer fast and open BOM quotations to customers.
Professional Response
With 10 years of cooperation experience with European and North American clients, we quickly and professionally respond to customer requirements.
Turnkey Service
Comprehensive Services
We professionally offer PCB Assembly (SMT, DIP, MI, AI), component procurement, product final assembly, testing, PCBA conformal coating, electronic product design, and peripheral products support.
Global Reach
Our factory is located in Shenzhen, and we have warehouses in Hong Kong, Europe, and North America. We can prepare boards at the warehouse closest to the customer and offer Kanban service according to customer requirements.
IP Protection
We strongly believe in IP protection and have proven records to support this.
SMT & DIP Machines List
| No | Machine Name | Machine Type | Qty | Manufacture | Capacidade | Remarks |
|---|---|---|---|---|---|---|
| 1 | Auto. Printing machine | GKG-G5 | 3 | GKG | Cycle Time:<15s<> | Plate size:420520mm-737737milímetros, Size of printable board:5050mm-400310milímetros, Printing Accuracy:±0.025mm, Repeated Accuracy:±0.01mm |

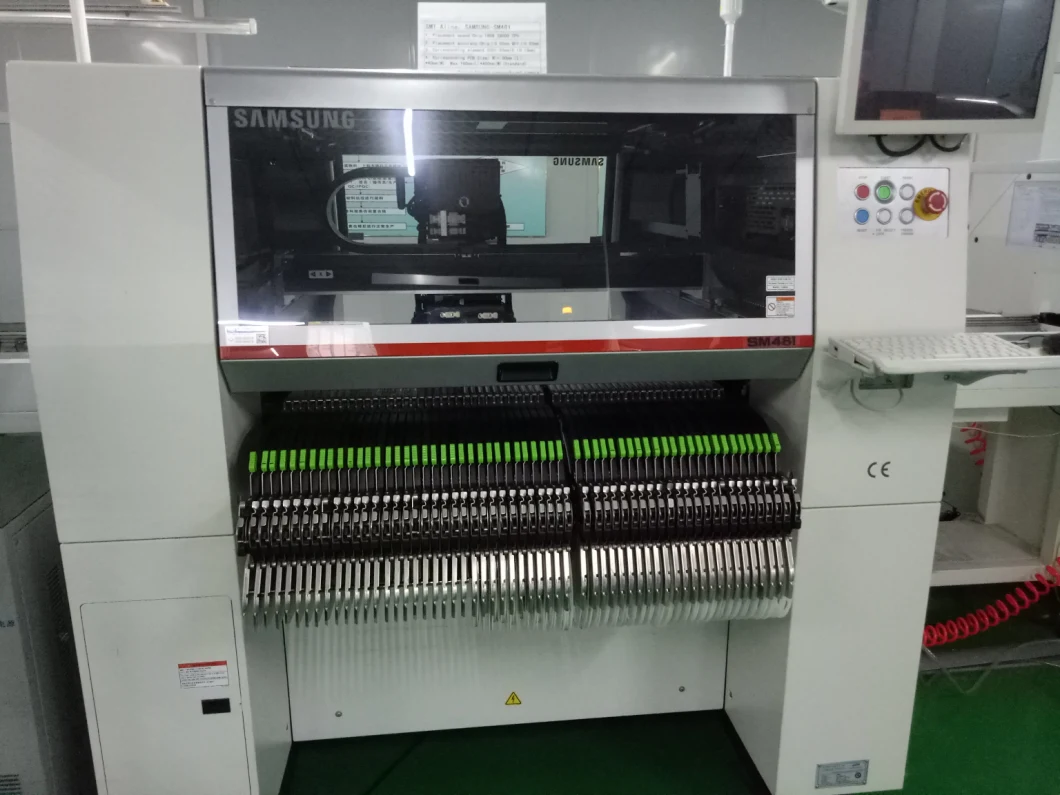

| 2 | Placement machine | SM481 | 2 | SAMSUNG | Placement speed: 39000 CPH | Corresponding element:0201-55mmIC(H 15mm), Placement accuracy:Chip±0.05mm,QFP±0.03mm, Min Size of board:50milímetros(eu)40milímetros(W), Max Size of board:740milímetros(eu)400milímetros(W)(Standard) |
| SM482 | 1 | SAMSUNG | Placement speed: 28000 CPH | Corresponding element:0201-55mmIC(H 15mm), Placement accuracy:Chip±0.05mm,QFP±0.03mm, Min Size of board:50milímetros(eu)40milímetros(W), Max Size of board:740milímetros(eu)400milímetros(W)(Standard) | ||
| SM421 | 1 | SAMSUNG | Placement speed: 21000 CPH | Corresponding element:0201-55mmIC(H 15mm), Placement accuracy:Chip±0.05mm,QFP±0.03mm, Min Size of board:50milímetros(eu)40milímetros(W), Max Size of board:740milímetros(eu)400milímetros(W)(Standard) | ||
| KE-3020AL | 1 | JUKI | Placement speed: 17100 CPH | Corresponding element:0201-50mmIC(H 20mm), Placement accuracy:Chip±0.04mm,QFP±0.04mm, Corresponding PCB Size:Min:40milímetros(eu)40milímetros(W) Max:650milímetros(eu)360milímetros(W) | ||
| KE-3010AL | 1 | JUKI | Placement speed: 18500 CPH | Corresponding element:0201-33mmIC(H 12mm), Placement accuracy:Chip±0.04mm,QFP±0.04mm, Corresponding PCB Size:Min:40milímetros(eu)40milímetros(W) Max:650milímetros(eu)360milímetros(W) | ||
| 3 | Reflow oven machine | JTR-1000 | 1 | JT | 650-800mm/minute | Number of zone:10 Zones, Temperature accuracy: +/-1ºC |
| AS-1000 | 1 | JT | 650-800mm/minute | Number of zone:10 Zones, Temperature accuracy: +/-1ºC | ||
| NS-1000-N | 1 | JT | 650-800mm/minute | Number of zone:10 Zones, Temperature accuracy: +/-1ºC | ||
| 4 | IC cabinet | STF100S | 1 | HengKai | 22 kinds of materials | |
| 5 | AOI | JTA-300 | 1 | JT | 20000 Components/H | Color image matching Resolution:Standard 20um/pixel, Viewable range:4433mm/3224milímetros, Speed:0.25 sec/FOV |
| ALD515 | 1 | Aleader | 20000 Components/H | Color image matching Resolution:Standard 20um/pixel, Viewable range:4433mm/3224milímetros, Speed:0.25 sec/FOV | ||
| 6 | IC bake machine | 100 | 1 | Jingyi | Inside size L=600MM, W=500MM, H=1000MM | Temperature range:0-250(ºC) |
| 7 | BGA Rework machine | LK-T6 | 1 | LK | Maximum hot air temperature: 400 °C, High-precision temperature controller, temperature error of 1 ° | Size:69CM55CM48CM, Welding success rate of up to 98% |
| 8 | Wave soldering machine | FM-350 | 1 | SUNEAST | Transmission speed: 5001800mm/Min., Tamanho do tabuleiro: 50350milímetros(W)*120milímetros(H), Board height: 750±20mm, Preheating temperature: Max.200°C, Tin furnace temperature: Max.300°C | |
| 9 | X-Ray | View X1800 | 1 | Scienscope | Image speed (fps):30, Detection range (cm2):0.05-30 | X-ray tube type:Transmissive closed tube, Spatial resolution (um):5, Tube voltage (KV):90 (optional 100), Tube current (uA):256, Magnification:500X |
| 10 | Conformal Coating machine | iCoat-3 | 1 | ANDA | velocidade:Max 800mm/S | Repeated positioning accuracy:±0.02mm |
Photos of SMT & DIP Machines and Inspection Machines
Our Services
We offer high-quality PCB & PCBA services for industrial control boards, financial industrial boards, automatic PCBs, new energy controller PCBAs, medical equipment printed circuits, and other high-level circuit boards. We offer a one-stop service for PCB, including PCB manufacturing,
