PCB Capability
General Specifications
- Layer count: 1-48 camadas
- Material: fr4, Tg=135,150,170,180,210, cem-3, cem-1, al base, teflon, rogers, nelco
- Espessura do cobre: 1/2onças, 1onças, 2onças, 3onças, 4onças, 5onças
- Espessura da placa: 8-236mil (0.2-6.0milímetros)
- Min. line width/space: 3/3 mil (75/75um)
- Min. drill size: 8 mil (0.2milímetros)
- Min. HDI laser drill size: 3 mil (0.067milímetros)
- Tolerance of hole size: 2 mil (0.05milímetros)
- PTH copper thickness: 1 mil (25 um)
Surface Finishing
- Solder mask color: Verde, blue, yellow, white, black, red
- Peelable solder mask: Sim
- Surface treating: HASL (ROHS), CONCORDAR, OSP, IMMERSION SILVER, IMMERSION TIN, brilho dourado, gold finger
- Espessura do ouro: 2-30u” (0.05-0.76um)
Advanced Features
- Blind hole/buried hole: Sim
- V-cut: Sim
PCBA Capability
Tecnologia & Capacidade
- Tecnologia: SMT, THT
- SMT capability: 2,000,000 points per day
- DIP capability: 300,000 points per day
Expertise & Process
- Experiences: QFP, BGA, μBGA, CBGA
- Process: Lead-free
- Programming: Sim
- Conformal coating: Sim
Aplicativo

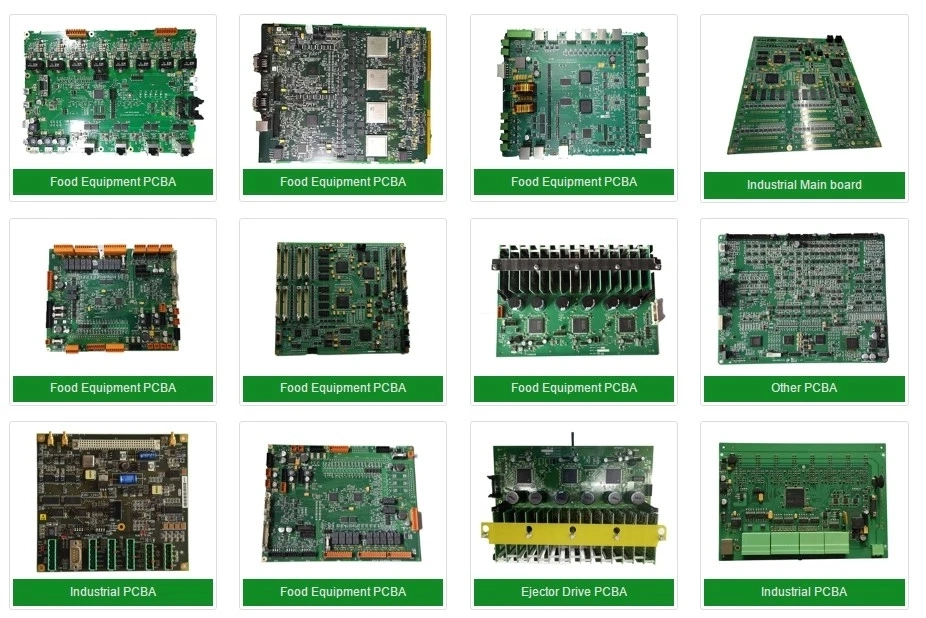

Key Industries
- Industrial control
- Medical device
- Food equipment
- Laser module
- Communication device
- PLC module
- Transducer module
- Traffic control
- Automobile
- Smart home system
Customized OEM Services

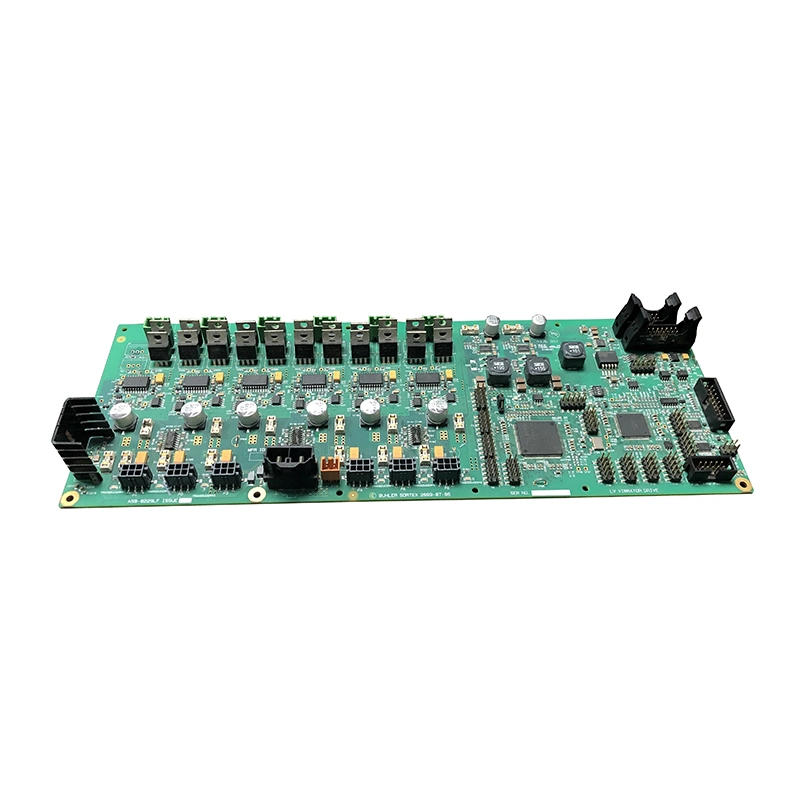

UGPCB is a professional one-stop PCBA service factory, supporting customized OEM electronic medical equipment PCB services. Welcome to learn more about our company.
