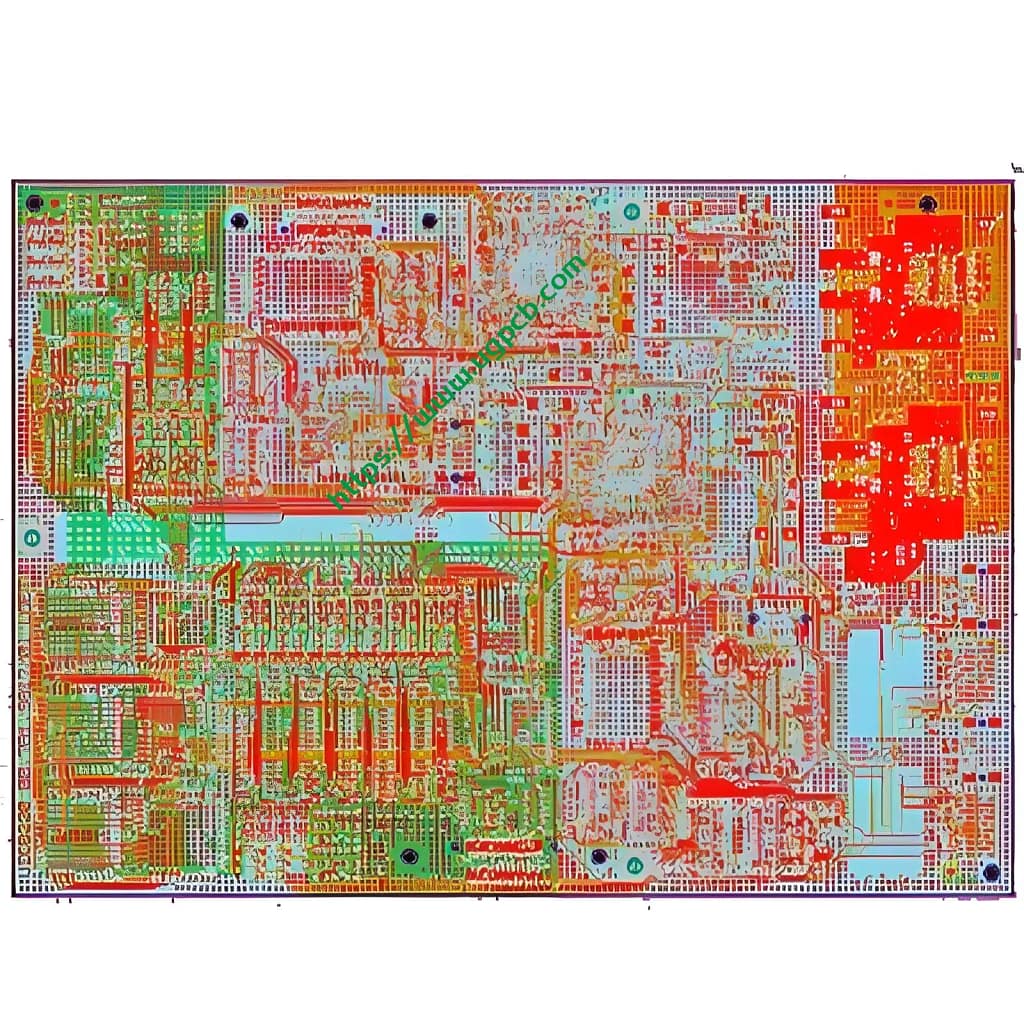

16-layer 2+N+2 high-precision PCB design

Overview of 16-Layer Stack PCB

A 16-layer stack has 16 layers of routing and is typically used for high-density designs.

Routing Challenges and Solutions

Routing Challenges

In EDA applications, routing techniques often fail to route the design.

Solution: Adding Multiple Layers

That’s why manufacturers add multiple layers to accommodate the complexity of high-density designs.

Specifications of 16-Layer PCB Fabrication

Composition

• Made of 16 straturi
• Made of halogen-free materials, aluminum, CEM, and FR

Plate Thickness

• Extended to 7 mm

Board Size

• Maximum finished board size is 500 x 500 mm

Finishes

• Halogen-free gold and silver plated

UGPCB: High-Quality Fabrication

UGPCB offers high-quality fabrication of 16-layer stack PCBs, ensuring reliability and performance for high-density designs.
