14-layer PCB circuit board - и

Многослойная печатная плата/

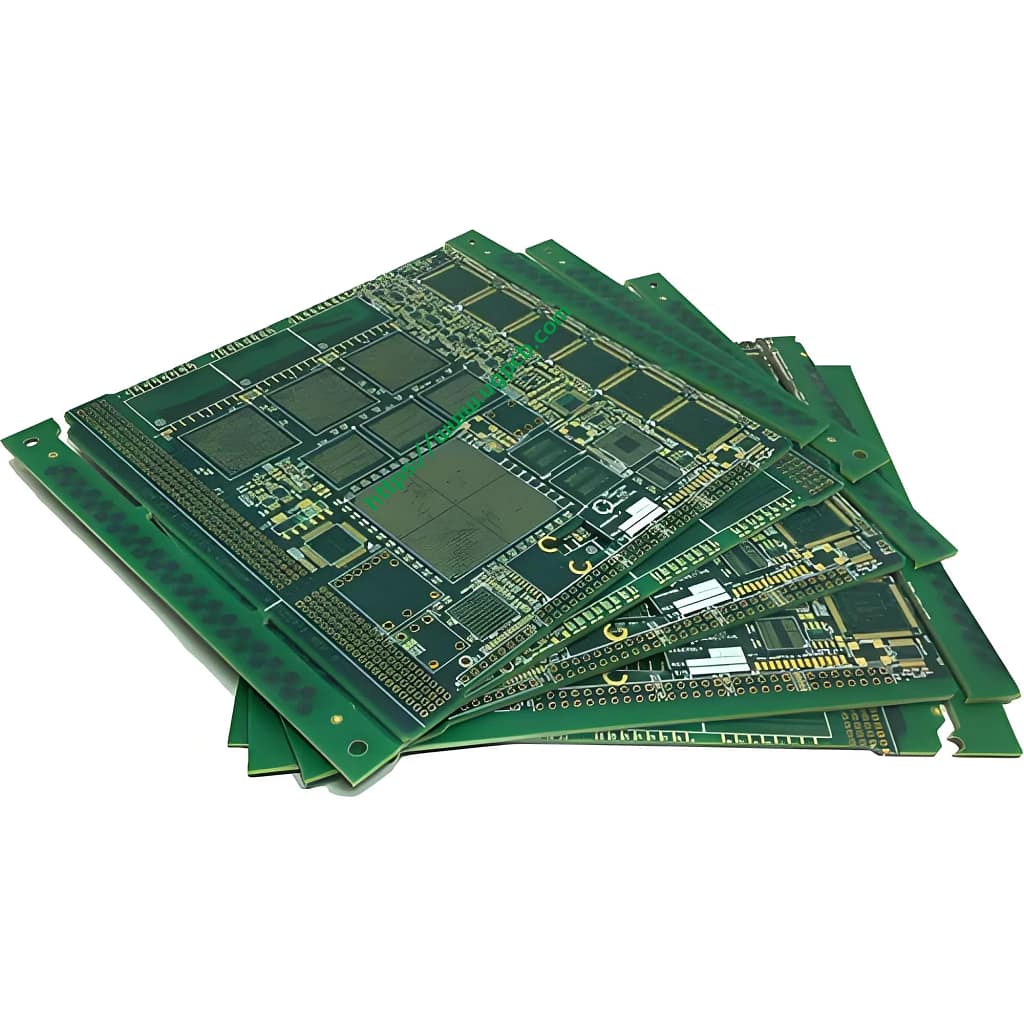

14-layer PCB circuit board

Имя: 14-layer PCB circuit board

Слои: 14L

Sheet: FR4 Tg180

Толщина пластины: 2.4мм

Panel size: 120*95mm/1

Outer copper thickness: 35мкм

Inner layer copper thickness: 35мкм

Minimum through hole: 0.20мм

Minimum BGA: 0.25мм

Line width line spacing: 3/3.2мил

Обработка поверхности: Immersion gold 2U''

Область применения: automotive core PCB board

  • Подробная информация о продукте

Uses of 14-Layer PCB Stackup

Приложения

The 14-layer PCB stackup has a variety of uses in applications such as satellite dishes, preamplifiers, memory modules, SAN storage, AC drives, and more. It is a multi-layer printed circuit board device that must be used whenever 8 signal layers are required. Кроме того, it is necessary for creating special shields made of net.

Industries Where 14-Layer PCB Stackup is Applied

Industry

The 14-layer PCB stackup is now well-known in different industrial applications. It is useful in control systems and industrial computers, as well as in industrial and manufacturing applications where it runs machinery due to its small size, functionality, и долговечность.

Electronic Products

Microwave ovens and smartphones are electronic gadgets that use printed circuit boards. Однако, more products now prefer to use a 14-layer PCB stackup instead of the usual single-layer PCB.

Автомобильная промышленность

The headlight switch, onboard computer, GPS, and engine sensor use a 14-layer PCB stackup. Electric vehicles also utilize this stack-up in different applications.

Медицинское оборудование

A large number of electronic devices in the healthcare sector use a 14-layer PCB stackup, including equipment for X-rays, CAT scans, medical tests, and heart monitors.

Telecommunications

Devices used in telecommunications use 14-layer PCB stack-ups in many of their general-purpose applications, such as GPS, signaling, and satellite applications. Outdoor towers or mobile equipment typically utilize telecommunications applications that use a 14-layer PCB stackup.

Benefits of 14-Layer PCB Stackup

High Quality

Creating a 14-layer PCB stackup involves a lot of work and planning, which is why it has better quality compared to other PCB stack-ups. It is also more reliable.

Small Size

The 14-layer PCB stack-up is smaller compared to other stack-ups with similar functionality due to its layered design. The smaller and more compact size of the 14-layer PCB stackup gives it an advantage in modern technology.

Power Increase

A 14-layer PCB stack-up integrates multiple layers on one printed circuit board, which is one of the reasons why they offer blazing fast speeds.

More Durable

With a 14-layer PCB stackup, you can easily handle extreme pressure and heat and withstand their weight. Connecting the layers with prepregs and other useful materials provides sufficient insulation, making the 14-layer PCB stack-up more durable.

Гибкость

The 14-layer PCB stack-up utilizes flexible construction techniques, making your printed circuit board more flexible. This flexibility is needed in situations where slight bends are possible in semi-regular situations.
