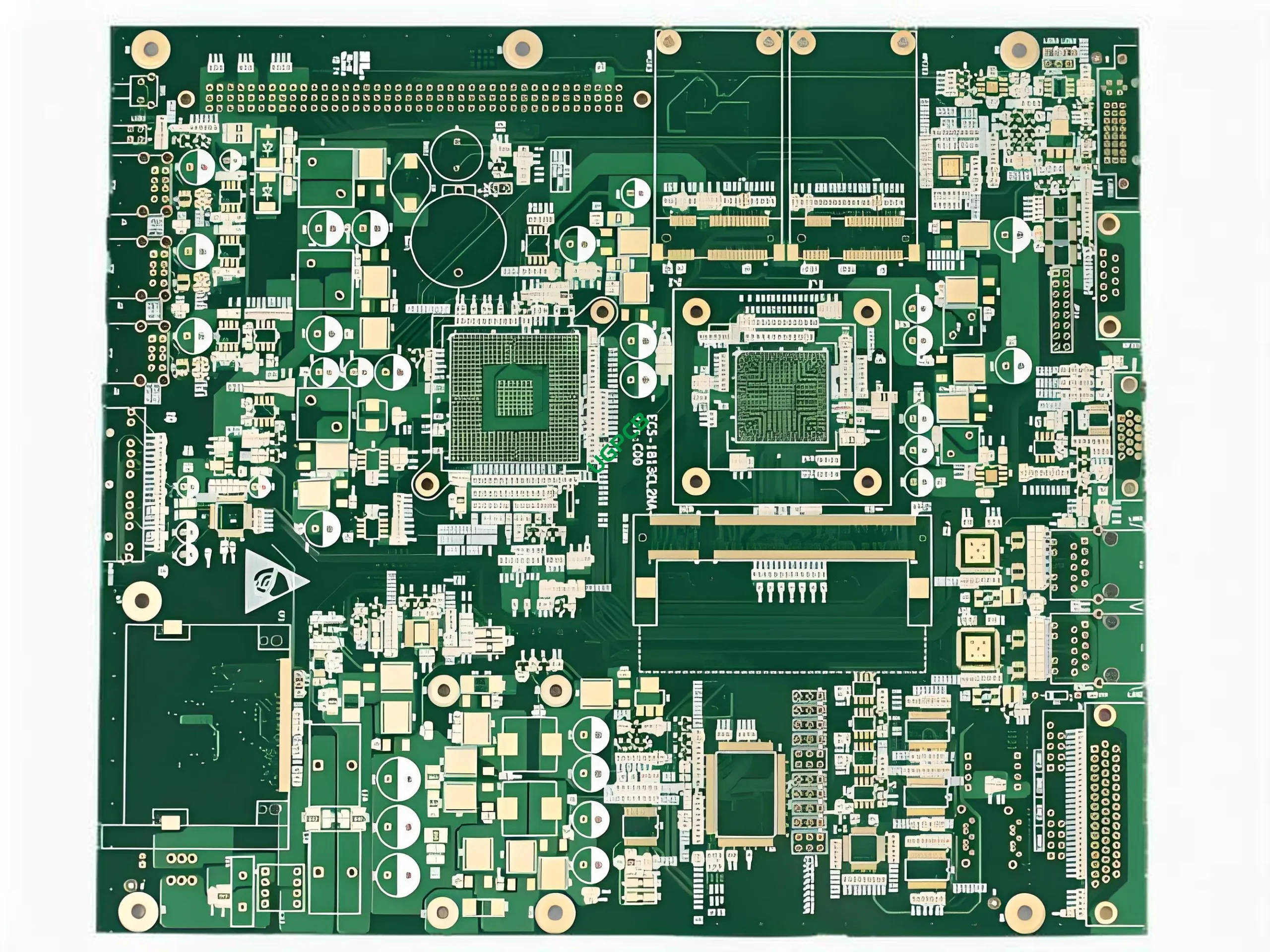

Introduction to the Industrial Controller PCB
The Industrial Controller PCB is a robust and reliable printed circuit board designed specifically for industrial control systems. It ensures stable and efficient operation in demanding environments, making it essential for various industrial applications.
What is an Industrial Controller PCB?
An Industrial Controller PCB, or Printed Circuit Board, is a specialized electronic board used in industrial control systems. It houses various components and provides the necessary interconnections to ensure the proper functioning of industrial machinery and processes.
Требования к дизайну
The design requirements for an Industrial Controller PCB are critical to ensure its reliability and performance:
- Материал: EM-82, chosen for its durability and excellent electrical properties.
- Layer Count: 4 layers to accommodate complex circuit designs.
- Цвет: Black/White for easy identification and aesthetic appeal.
- Готовая толщина: 1.6mm to provide structural integrity without being overly bulky.
- Толщина меди: 1OZ to ensure adequate conductivity.
- Обработка поверхности: Immersion Gold to enhance solderability and corrosion resistance.
- Minimum Trace and Space: Both 6mil (0.15мм) to support fine circuit patterns.
- Characteristic: Hole copper is larger than 25um for better electrical connectivity.
How Does It Work?
The Industrial Controller PCB works by providing a platform for various electronic components to be interconnected through conductive pathways. These pathways, or traces, are made of copper and are etched onto the board. The immersion gold surface treatment ensures that these traces remain conductive and resistant to environmental factors.
Приложения
The primary application of the Industrial Controller PCB is in industrial control systems where it manages and regulates the operations of machinery and processes. This includes:
- Automated manufacturing systems
- Industrial robotics
- Process control systems
- Machine tool controllers
Классификация
Based on its features and applications, the Industrial Controller PCB can be classified as a high-reliability PCB designed for industrial use. This classification highlights its capability to withstand harsh industrial environments.
Material Composition
The core material used in the Industrial Controller PCB is EM-82, a high-performance laminate material known for its excellent mechanical, thermal, and electrical properties. This material ensures that the PCB can withstand the demands of industrial applications.
Характеристики производительности
The performance characteristics of the Industrial Controller PCB include:
- Высокая надежность
- Excellent signal integrity
- Superior thermal management
- Robust mechanical strength
- Long-term stability
Structural Details
The structural details of the Industrial Controller PCB are as follows:
- Layer Count: 4 слои
- Готовая толщина: 1.6мм
- Толщина меди: 1ОЗ
- Minimum Trace Width: 6мил (0.15мм)
- Minimum Space Between Traces: 6мил (0.15мм)
- Обработка поверхности: Погружение Золото
- Hole Copper Thickness: Larger than 25um
Features and Benefits
The key features and benefits of the Industrial Controller PCB include:
- High density interconnectivity
- Excellent signal integrity
- Robust mechanical construction
- Reliable long-term performance
- Aesthetic color options (Black/White)
Производственный процесс
The production process of the Industrial Controller PCB involves several steps, включая:
- Material Selection: Choosing high-quality EM-82 material.
- Наложение слоев: Arranging the 4 layers with precision.
- Офорт: Removing excess copper to form the desired trace patterns.
- Покрытие: Applying immersion gold surface treatment.
- Сборка: Incorporating PTHs and vias for layer interconnections.
- Тестирование: Ensuring the PCB meets all performance specifications.
Варианты использования
The Industrial Controller PCB is used in various scenarios, такой как:
- Automated manufacturing lines
- Industrial robot control systems
- Process control equipment
- Machine tool automation
In summary, the Industrial Controller PCB is a sophisticated and reliable component designed to meet the demanding requirements of industrial control systems. Its high-density design, excellent performance characteristics, and robust construction make it an essential part of any advanced industrial setup.
