UGPCB Custom UAV Rigid-Flex PCB: Легкий, Прочный, and Precision-Engineered for Drones

As unmanned aerial vehicles (Беспилотники) evolve, every gram impacts flight time, and every signal determines flight safety. Traditional rigid PCBs cannot fit into compact, folded drone frames, while flexible PCBs alone lack structural support. УГКПБ solves this challenge with the unmanned aerial vehicle rigid-flex PCB—a specialized circuit board designed for high-vibration, space-constrained aerospace applications.

This article explains the design, материалы, and manufacturing standards behind this advanced жестко-гибкая печатная плата. You will learn why it is the preferred interconnect solution for modern drone electronics.

1. Product Overview and Definition

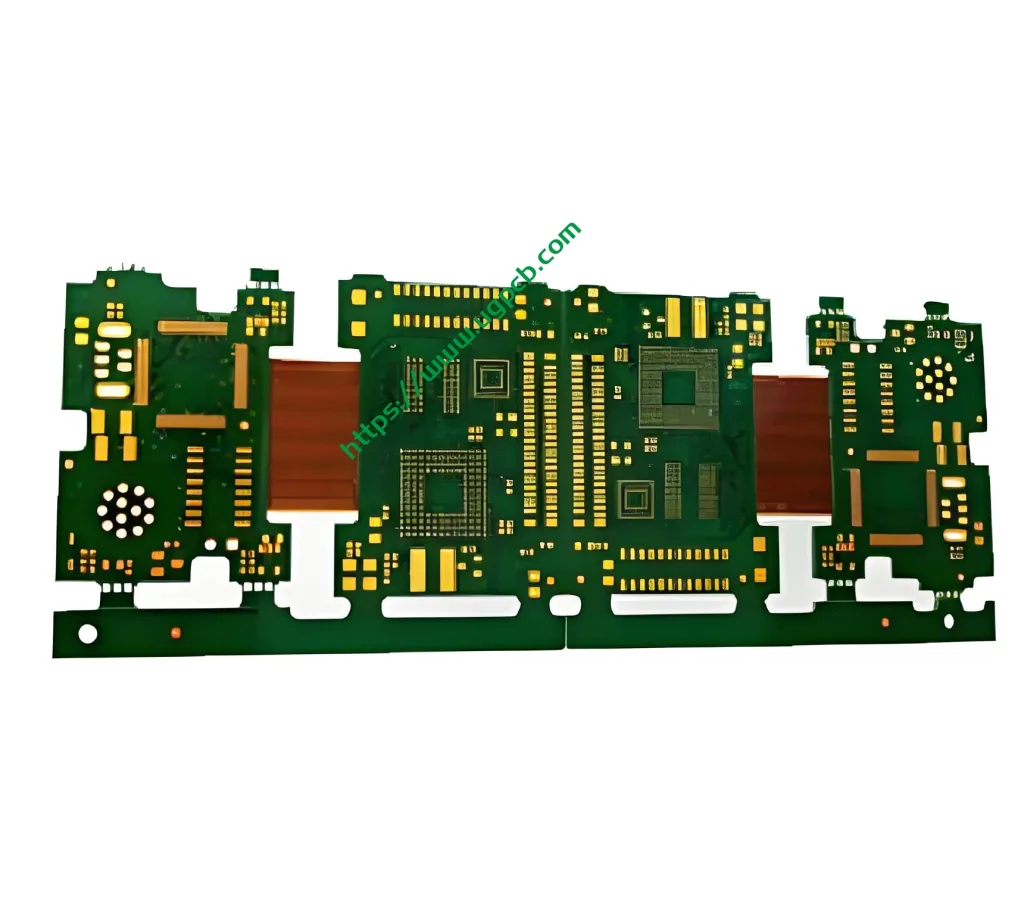

А UAV rigid-flex PCB combines rigid circuit board sections with flexible circuit board sections into a single, unified structure. The rigid areas (made of FR-4) support heavy components like processors and connectors. The flexible areas (made of polyimide, or PI) allow bending and folding. This design removes the need for connectors and wiring harnesses.

В UGPCB, we define a high-quality rigid-flex printed circuit board as one that maintains signal integrity under drone-specific stresses, including high vibration, tight folding, and wide temperature variation. Our model is tailored for flight control systems, video transmission modules, and gimbal assemblies.

2. Key Specifications and Structure

The table below lists the core specifications for this UGPCB model.

3. How It Works and Key Design Considerations

Как это работает

Этот жестко-гибкая печатная плата acts as the central nervous system of a drone. The 4-layer rigid section provides a stable platform for soldering core components such as the main processor, Гироскоп, и микросхемы управления питанием. The 2-layer flexible section connects moving parts—like motors and gimbal cameras—without mechanical connectors. This allows free movement and folding without breaking the electrical path.

Соображения дизайна

1. Transition Zone Protection: The junction between rigid and flexible areas is the most stress-prone point. UGPCB reinforces this area using teardrop pads and tapered trace widths. This prevents circuit breaks caused by continuous drone vibration.

2. Контроль импеданса: For high-frequency video transmission signals (typically 50Ω or 100Ω differential), we use the 4 mil trace width and spacing to maintain consistent impedance across both rigid and flex sections.

4. Выбор материала: FR-4 and PI

Why does UGPCB use FR-4 and PI for this unmanned aerial vehicle rigid-flex PCB?

• Жесткие области (ФР-4): We select high-Tg (glass transition temperature) ФР-4. This ensures the board does not soften or warp during high-power drone flights, preventing solder joint failure.

• Flex Areas (ПИ – Полиимид): The flexible sections use high-grade polyimide. This material withstands repeated bending and extreme temperatures ranging from -40°C to +150°C. The asymmetric thickness (1.0mm rigid vs. 0.15mm flex) balances mechanical strength with the thinness required for tight folding.

5. Функции производительности

The combination of 1 Оз меди, Погружение золота, и 4 Мил трасса/пространство delivers measurable performance benefits.

• Высокая надежность: Погружение золота (СОГЛАШАТЬСЯ) creates a flat, oxidation-resistant surface. This supports fine-pitch BGA soldering and eliminates the risk of solder balls common with HASL finishes.

• Целостность сигнала: The 4 mil trace width allows designers to route differential pairs in tight spaces. This reduces electromagnetic interference (Эми), which is critical for sensitive GPS and video signals.

• Weight Reduction: Replacing a “rigid board + разъем + cable” assembly with a single rigid-flex board can reduce total interconnect weight by up to 40%. This weight saving extends drone flight time.

• Тепловые характеристики: The white coverlay on the flexible section reflects more heat than traditional yellow coverlay. This helps manage temperatures during prolonged drone hovering.

6. Industry Classification

Based on МПК and industry standards, this product falls under:

• Primary Category: Flexible and Rigid-Flex Printed Boards

• Secondary Category: Multi-layer Rigid-Flex with Asymmetric Construction

• Application Class: Aerospace and Unmanned Aerial Vehicle Electronics

7. Производственный процесс (IPC-6013 & UL Compliance)

UGPCB follows a controlled process to meet IPC-6013 (Flexible/Rigid-Flex Board Qualification) and UL 94 В-0 flammability standards. The key steps for this 4-layer rigid + 2-layer flex design are:

1. Подготовка материала: FR-4 and PI base materials are cleaned and prepared.

2. Coverlay and Lamination: The flexible areas receive precision coverlay openings. The 4 rigid layers and 2 flex layers are then laminated together under high temperature and vacuum. This step requires precise adhesive flow control to prevent voids at the rigid-flex boundary.

3. Сверление и покрытие: Laser drilling is used for microvias in the flexible areas. Copper is then plated to achieve 1 oz thickness in all vias.

4. Outer Layer Imaging and Plating: The outer layer circuits are formed, and final copper plating completes the 1 oz specification.

5. Поверхностная отделка (Погружение Золото): ENIG is applied to all exposed copper pads.

6. Profiling and Electrical Test: The board is routed to final shape. Every board undergoes 100% Тестирование летающих зондов to verify electrical integrity.

8. Типичные приложения

Этот unmanned aerial vehicle rigid-flex PCB is suitable for the following applications:

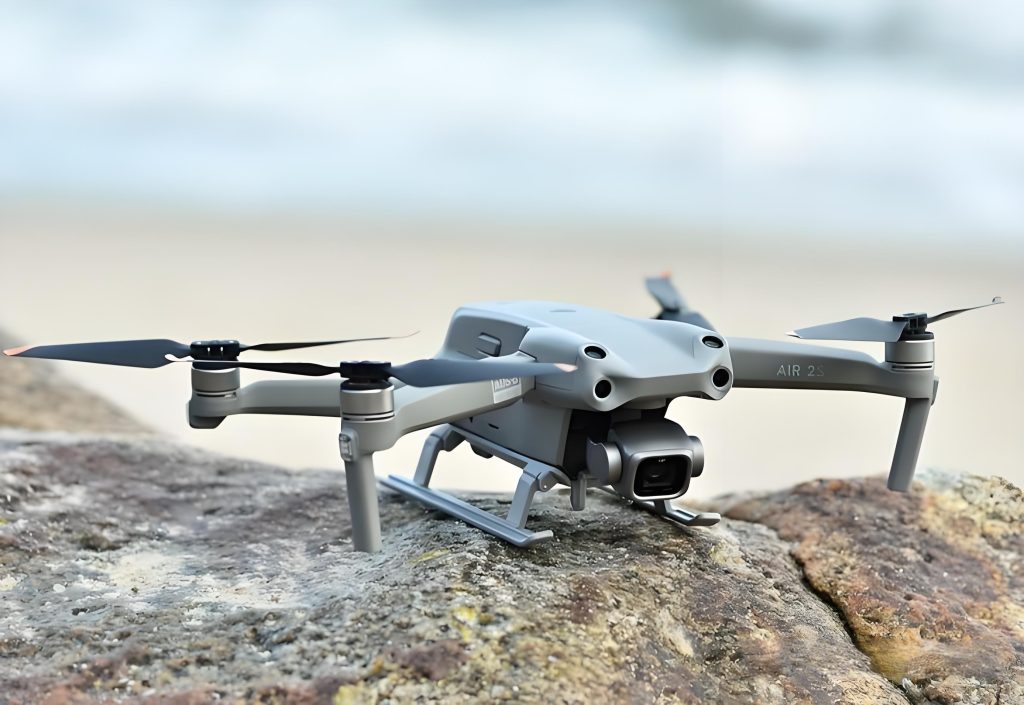

• Foldable Consumer Drones: Used in hinge areas that require thousands of folds over the product lifespan.

• FPV (First-Person View) Racing Drones: Eliminates connectors to reduce weight and improve thrust-to-weight ratio.

• Camera Gimbals: Connects motors to the main board with fine flexible circuits that ensure zero signal lag during rapid movement.

• Tethered Drones: The 1 oz copper in rigid sections handles high current and dissipates heat effectively during long-duration operations.

9. Почему выбирают UGPCB?

УГКПБ специализируется на жестко-гибкие печатные платы with complex stackups. We have proven experience manufacturing fine-line designs (4 mil/4 mil) and asymmetric structures (1.0mm rigid + 0.15mm flex). Our commitment includes:

• Exact Specification Match: We build strictly to your Gerber files and stackup requirements.

• Быстрое прототипирование: Мы предлагаем 5- to 7-day expedited service for drone developers who need rapid iteration.

• Поддержка дизайна: Our engineering team reviews your files to optimize rigid-flex transitions and minimize manufacturing risks.

10. Request a Quote

Are you developing a drone and need a UAV rigid-flex PCB that balances weight, долговечность, и целостность сигнала? UGPCB supports projects from prototype to mass production. Contact our sales team for a competitive quote based on your 4-layer rigid, 2-layer flex requirements.

Click “Inquire Now” to let UGPCB support your next-generation drone design.
