Empowering High-Precision PCB Manufacturing with UGPCB’s Intelligent Factory Equipment

Discover how UGPCB leverages state-of-the-art intelligent manufacturing equipment to deliver superior high-precision PCBs, from advanced drilling systems to efficient quality assurance technologies. Experience the future of electronics manufacturing.

As a leading global supplier of PCB solutions, UGPCB showcases its intelligent manufacturing prowess through its PCB Factory section. This article delves into six core clusters of production equipment that support our internationally certified quality, providing you with insights from precision drilling to high-speed inspection.

Full Automation of PCB Equipment Cluster Establishes Industry-Leading Productivity

Investing $120 million in smart production equipment ensures technical consistency from prototyping to mass production:

Laser Drilling System: Featuring German LPKF ProtoLaser U4 series and Japanese Mitsubishi ML605GT, supporting 0.1mm micro-hole processing.

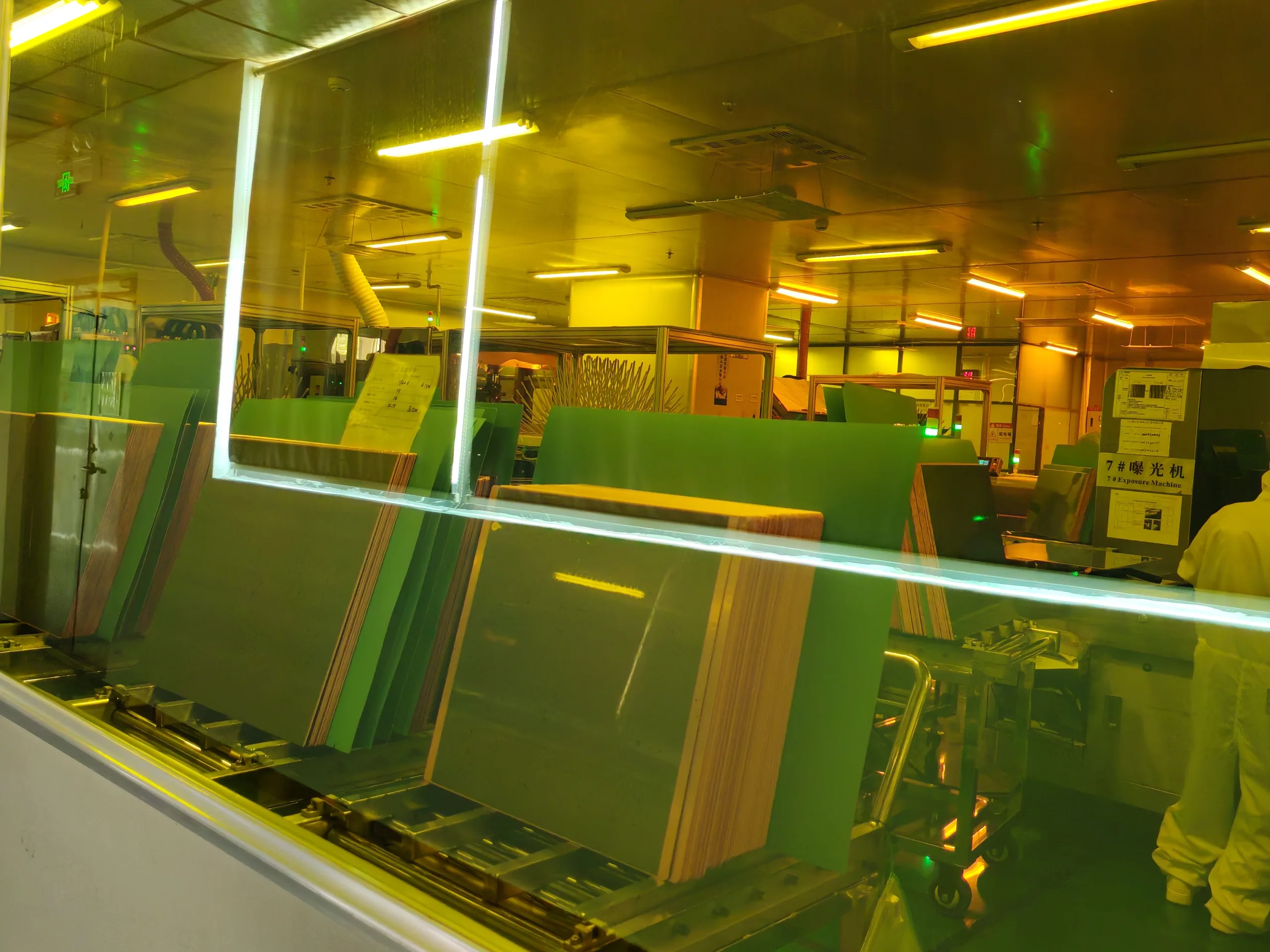

High-Precision Imaging System: Utilizing Israeli Orbotech Diamond 8 LDI aligner and German Atotech horizontal copper plating line for precise alignment.
Multi-layer PCB Pressing System: Equipped with American Virtek 3D lamination monitoring system and vacuum hot press units for enhanced layer-to-layer alignment accuracy.

Smart PCB Manufacturing Facility Drives Product Quality Upgrades

Utilizing Industry 4.0 technology for full digital management:

Smart Storage System: Incorporates KUKA automated material towers, increasing raw material turnover efficiency by 40%.
Online Inspection Network: Integrates Camtek AOI and Keyence 3D SPI devices, establishing an AI-driven quality early warning system.
Intelligent Logistics System: Applies AGV unmanned handling systems and RFID tracking technology to ensure production cycle error rates below 0.5%.

Specialized PCB Process Equipment Highlights Technical Depth

Building dedicated intelligent manufacturing capabilities for high-end markets such as 5G and automotive electronics:

High-frequency Material Processing Unit: Configured Rogers-specific processing lines for precise milling of PTFE/Teflon materials.
IC Substrate Manufacturing System: Includes ABF pressing machines and SAP process lines for ultra-fine circuitry.
Flexible-Rigid PCB Production Line: Uses Mitsubishi Chemical vacuum bonding technology ensuring compliance with IPC-6013 standards.

Sustainable Production Capability Ensures Delivery Commitments

Optimizing equipment to enhance both capacity and environmental protection:

German Schmoll Dual-table Drill Machine: Exceeding 350,000 drilling hours per month.

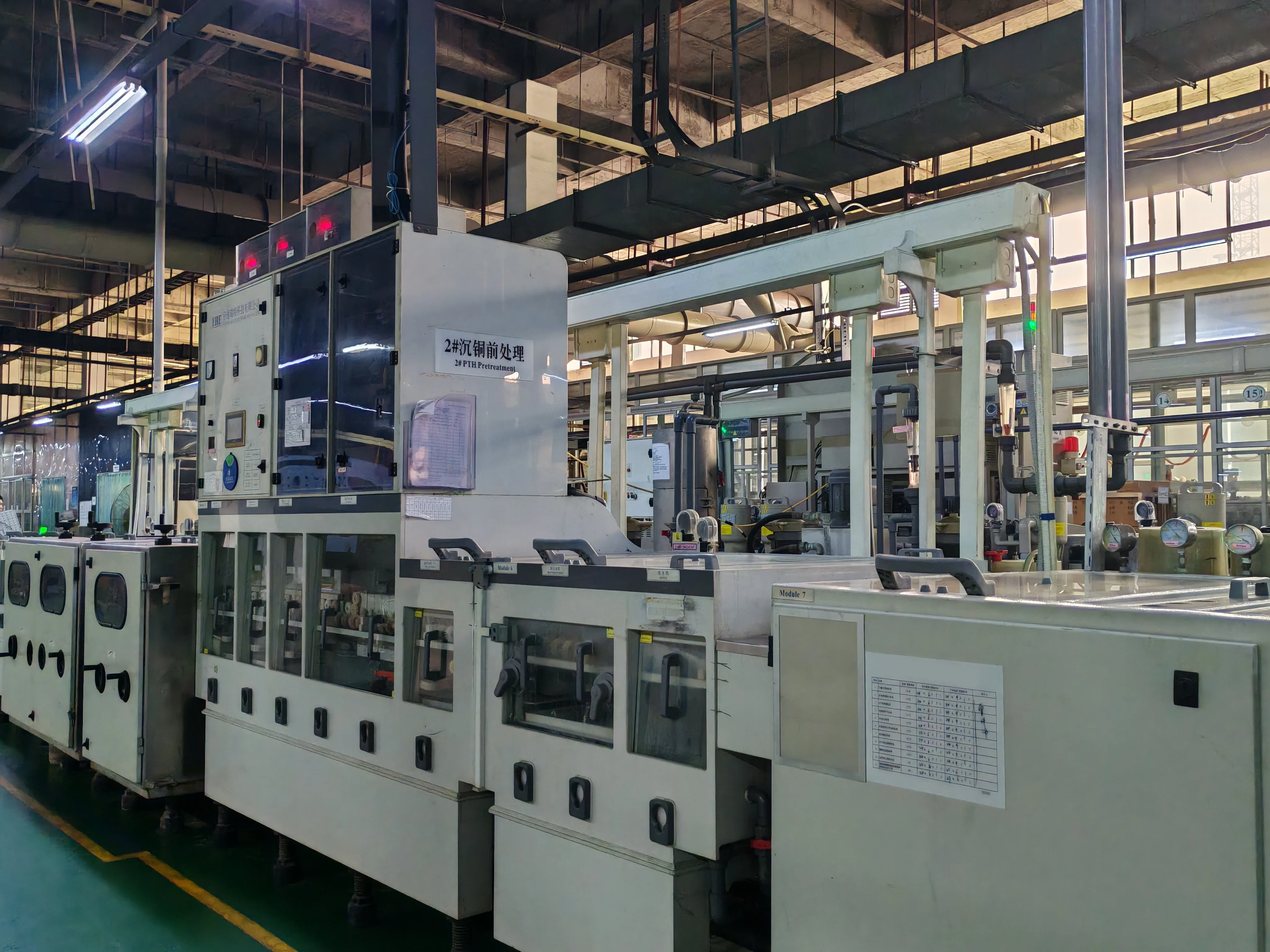

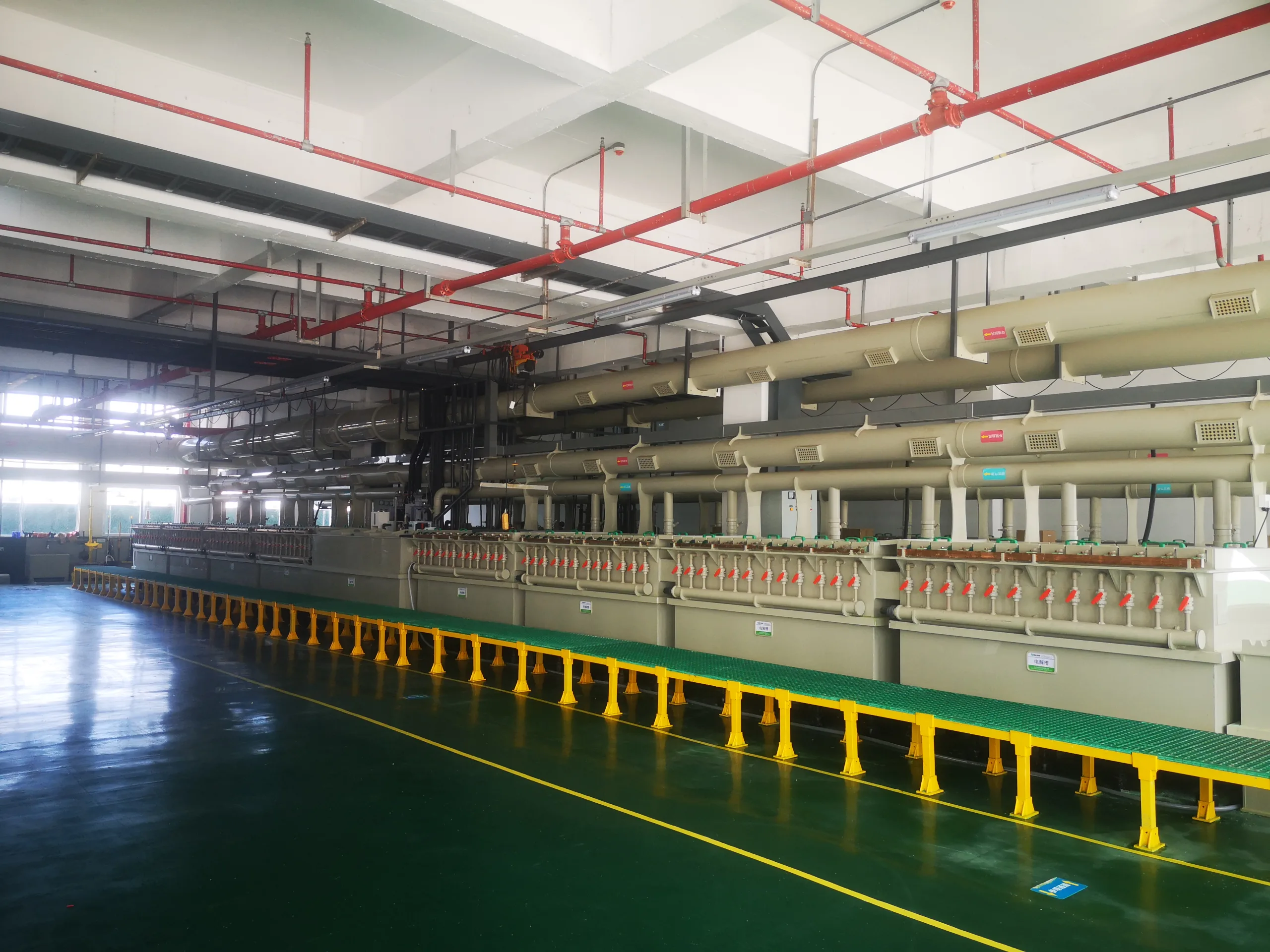

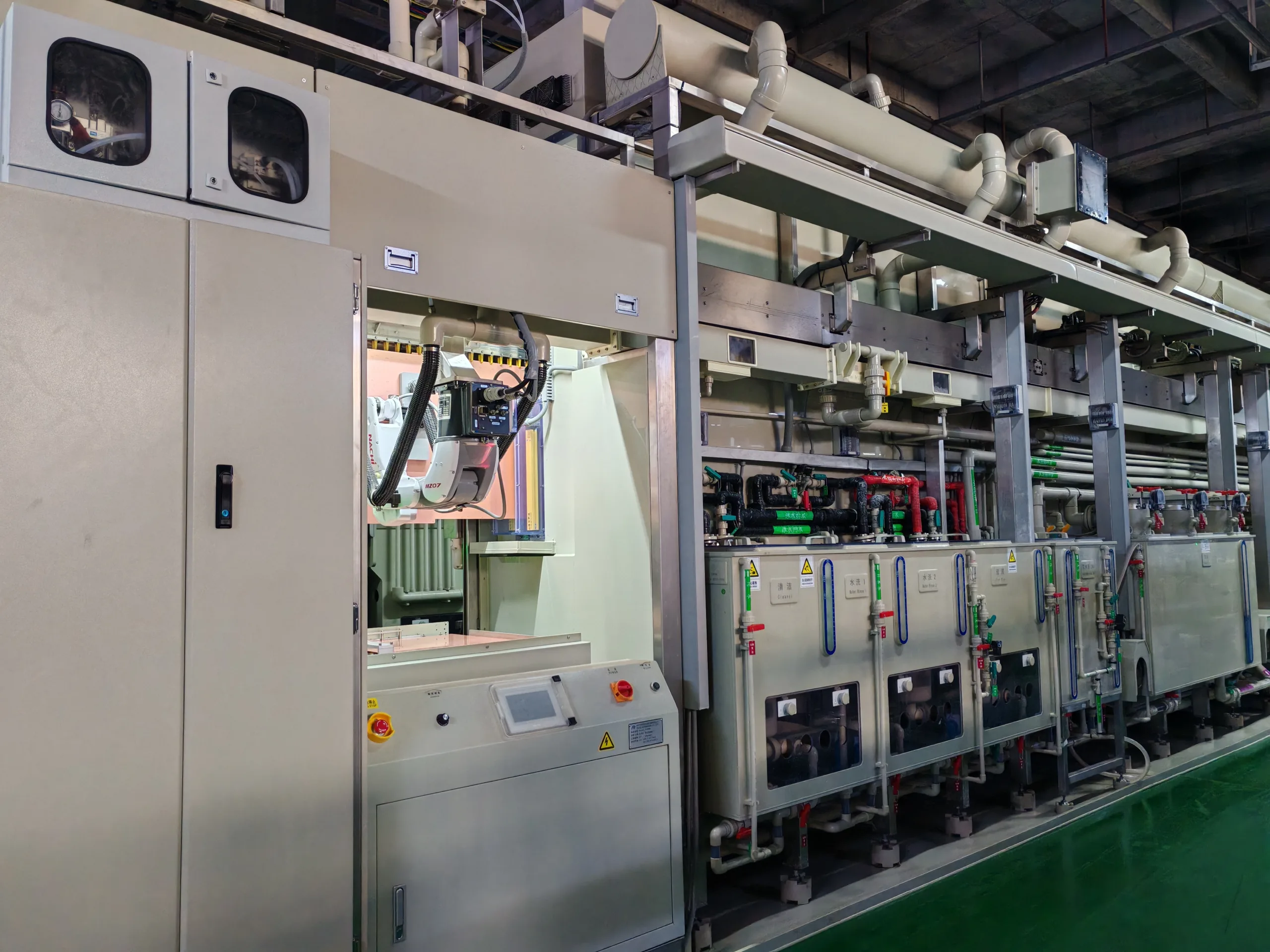

Hitachi High-speed VCP Plating Line: Achieving a 92% reagent recycling rate and reducing wastewater discharge by 40%.
ASM Mounting System: Supporting placement of 01005 components at a rate of 120,000 points per hour.

Professional Technical Support System

Comprehensive support includes over 200 certified engineers on-site, equipped with advanced testing and simulation systems, and holds 12 international certifications including UL, CE, and ISO9001.

Call to Action

Visit the UGPCB website’s PCB Factory section now to consult online or contact our professional technical support team for real-time equipment operation data and process whitepapers. Enjoy a free first DFM analysis service! Available 24/7 for consultations on equipment selection and process matching solutions.
